Please note

12V clamp for one battery use

24V clamp for two batteries use

220V for household use

Do not use cigarette lighters

Precautions for use

1: This product can only draw diesel fuel

2: The maximum length of the oil inlet pipe should not exceed 2 meters, as it can easily burn the pump if it is too long

3: The motor is strictly prohibited from idling

4: When installing, look at the arrow on the side of the pump. The direction of the arrow is the oil outlet filter, and there is also an arrow. The filter is pressed against the oil outlet of the pump

5: When the oil pump is turned on, be sure to open the valve of the gun handle, otherwise there will be no oil output

6: Suction lift of 2 meters and lift of 4-5 meters. Overloading is strictly prohibited

After sales maintenance

1. It cannot be used for low ignition point gasoline, alcohol liquefied gas, and high viscosity gasoline.

2. Before use, confirm that the power supply and voltage match

3. DC electric pumps have positive and negative poles. Red positive electrode, black negative electrode.

4. The inlet and outlet oil pipes are shown by the arrow. The oil pipes and joints must not leak air.

5. Remember to install the matching filter screen for the oil inlet pipe. Avoid impurities blocking and clean regularly.

6. The oil pump can work continuously, but do not dry it for more than 5 minutes to avoid overheating and damage to the product.

7. It is recommended to rest after working continuously for 20 minutes.

8. This product is only used for diesel fuel.

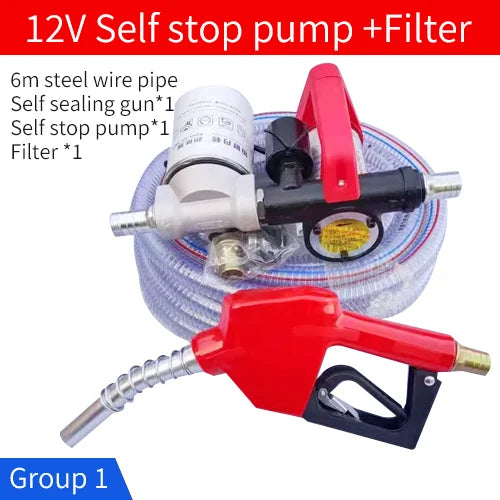

Oil extraction filter

Effectively remove impurities

Three specifications of 12V/24V/220V

6 meter steel wire pipe

High quality

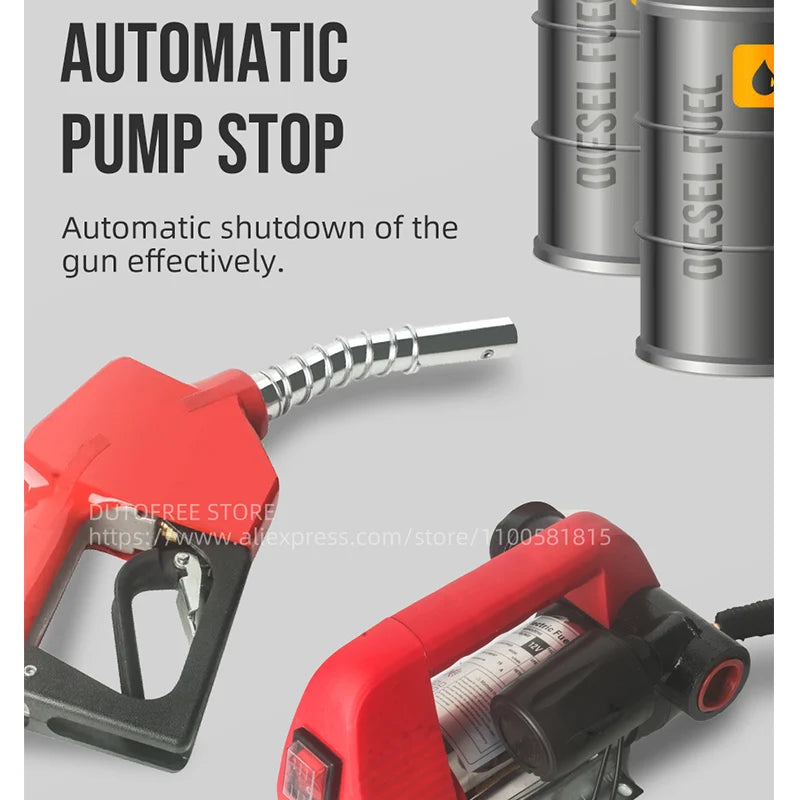

Automatic shutdown when full of oil
