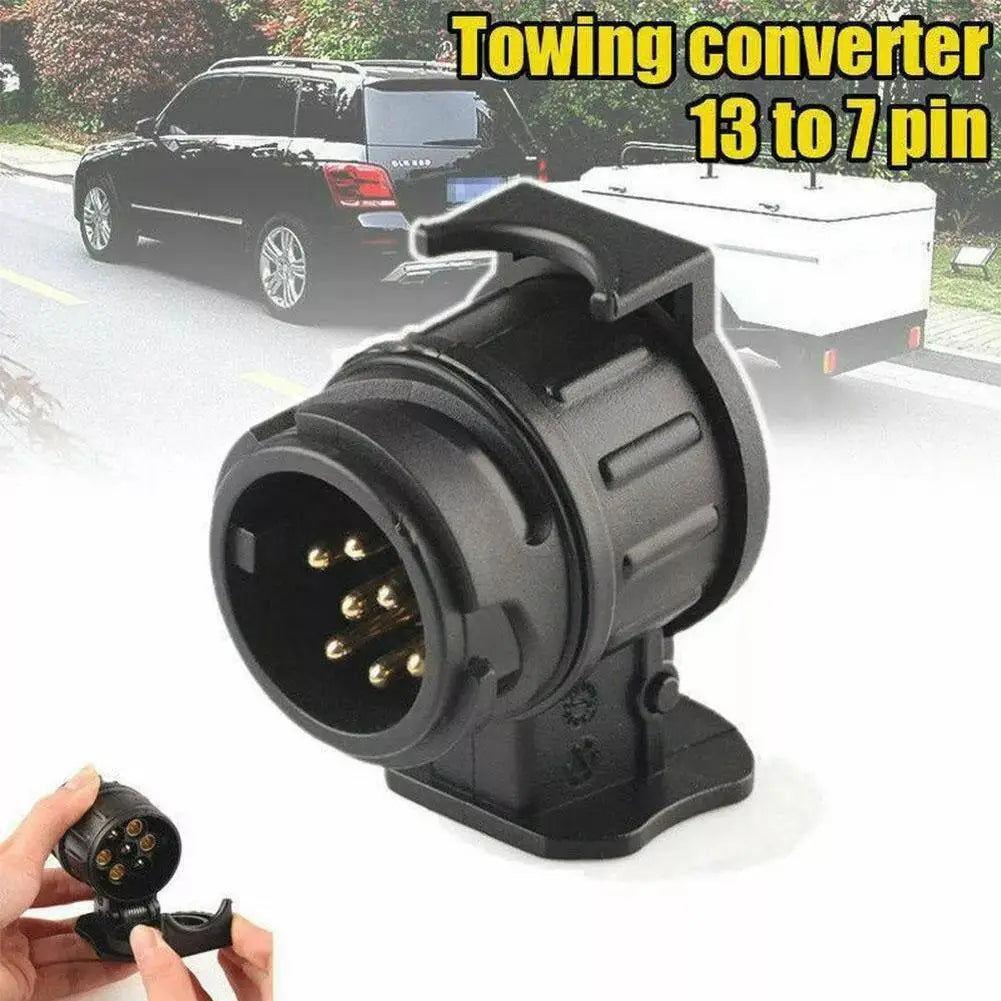

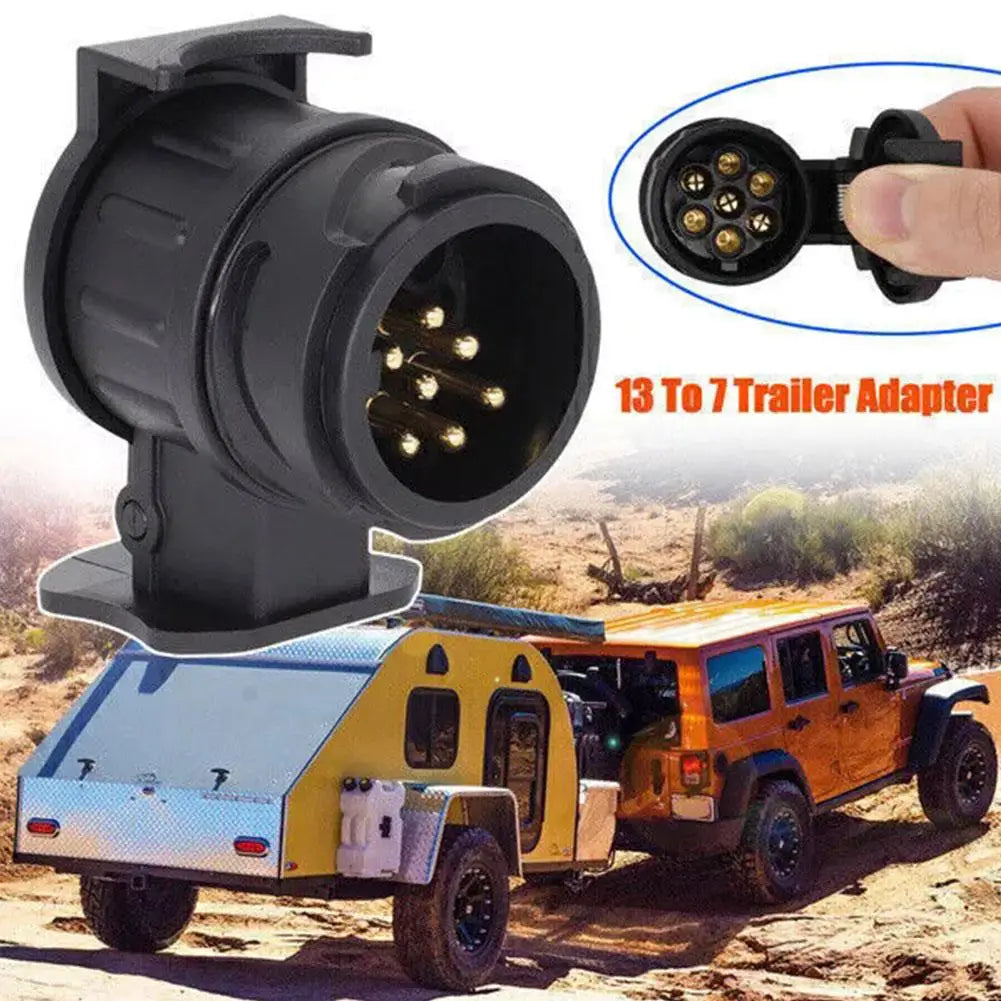

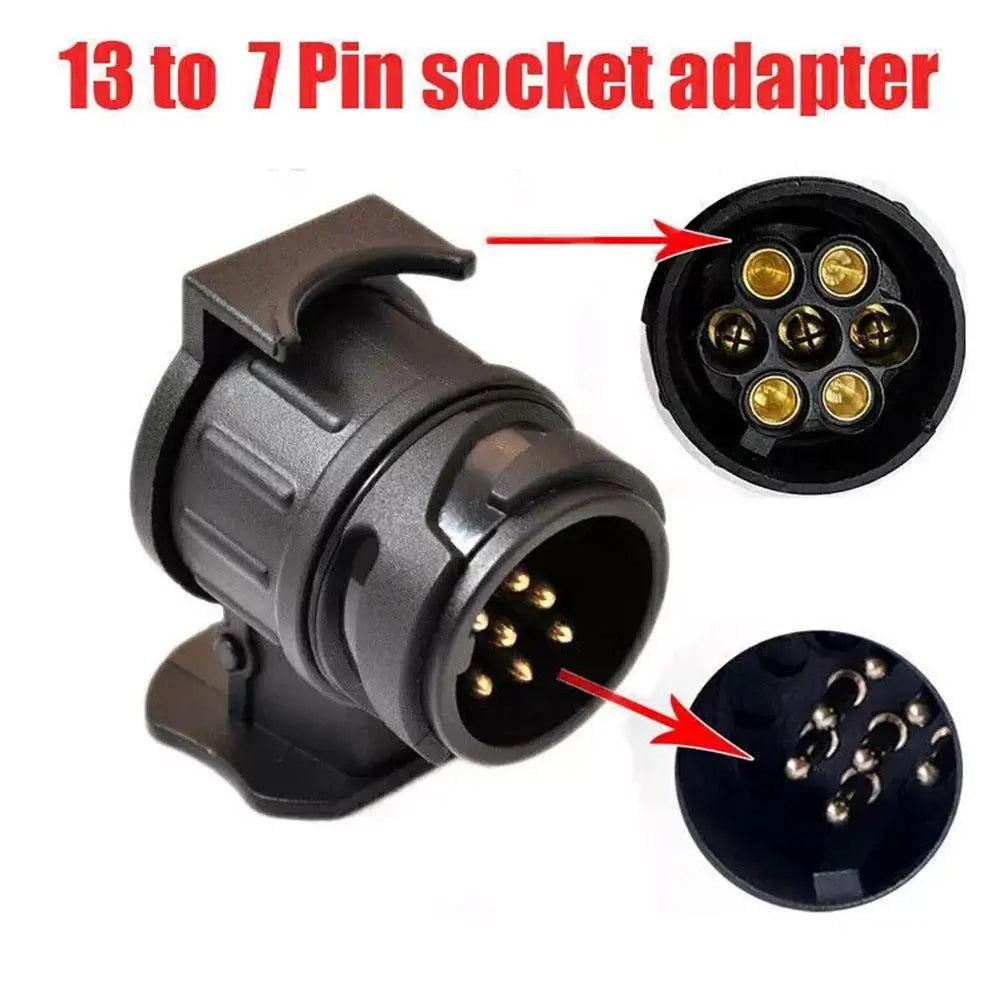

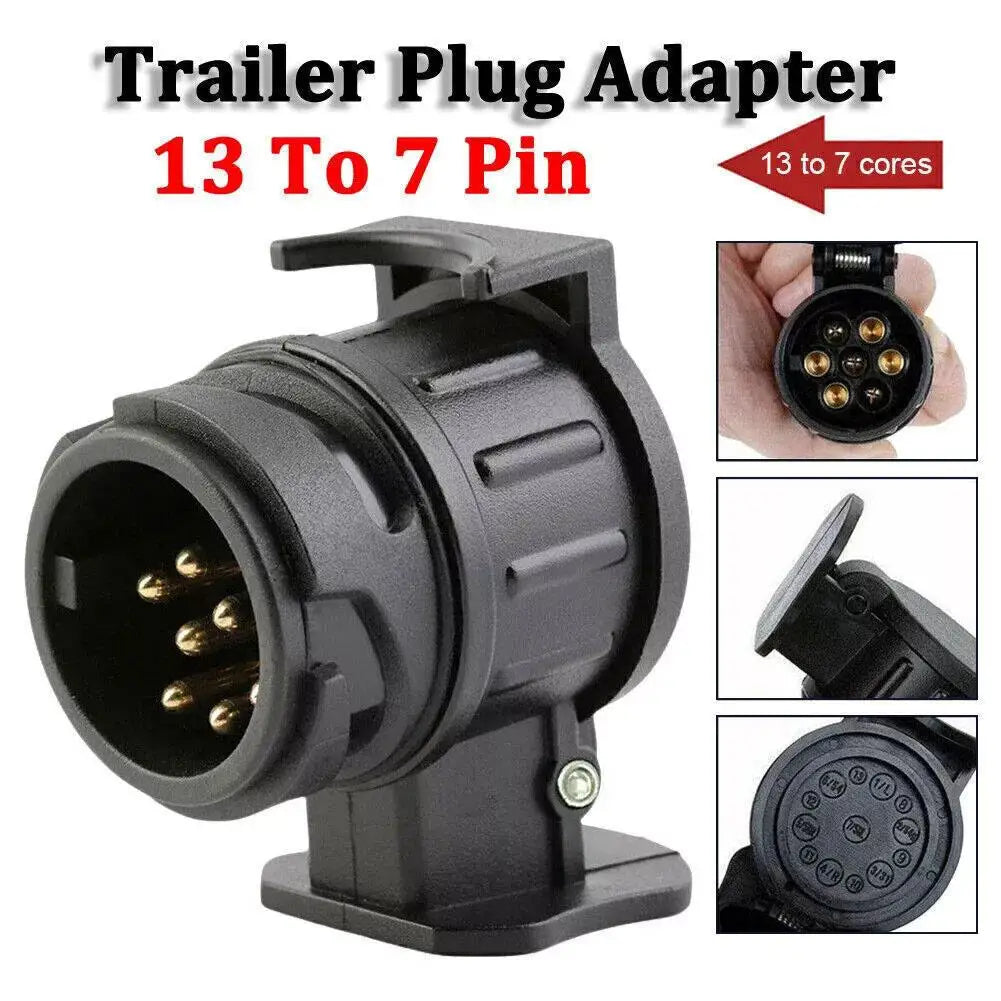

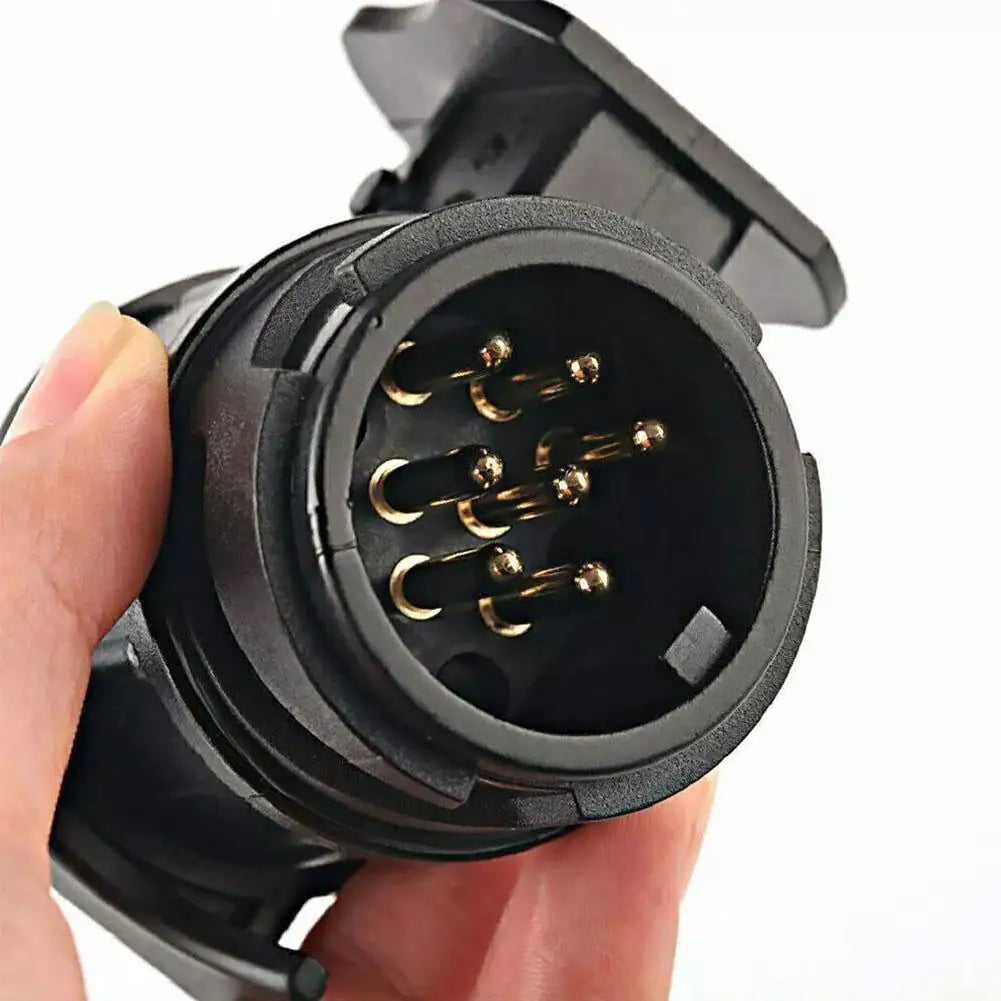

13 To 7 Pin Trailer Truck Electric Towing Converter Tow Bar Plug Adaptor Socket Car Accessories

Feature
Suitable for European standard trailer.
Supplies power to your towing and truck.
Converts the 13-pin socket on your car to the 7-pin female socket.
Establishes a secure connection between your major vehicle and the additional trailer; Transfers the electronic signal lights from the vehicle to trailer.

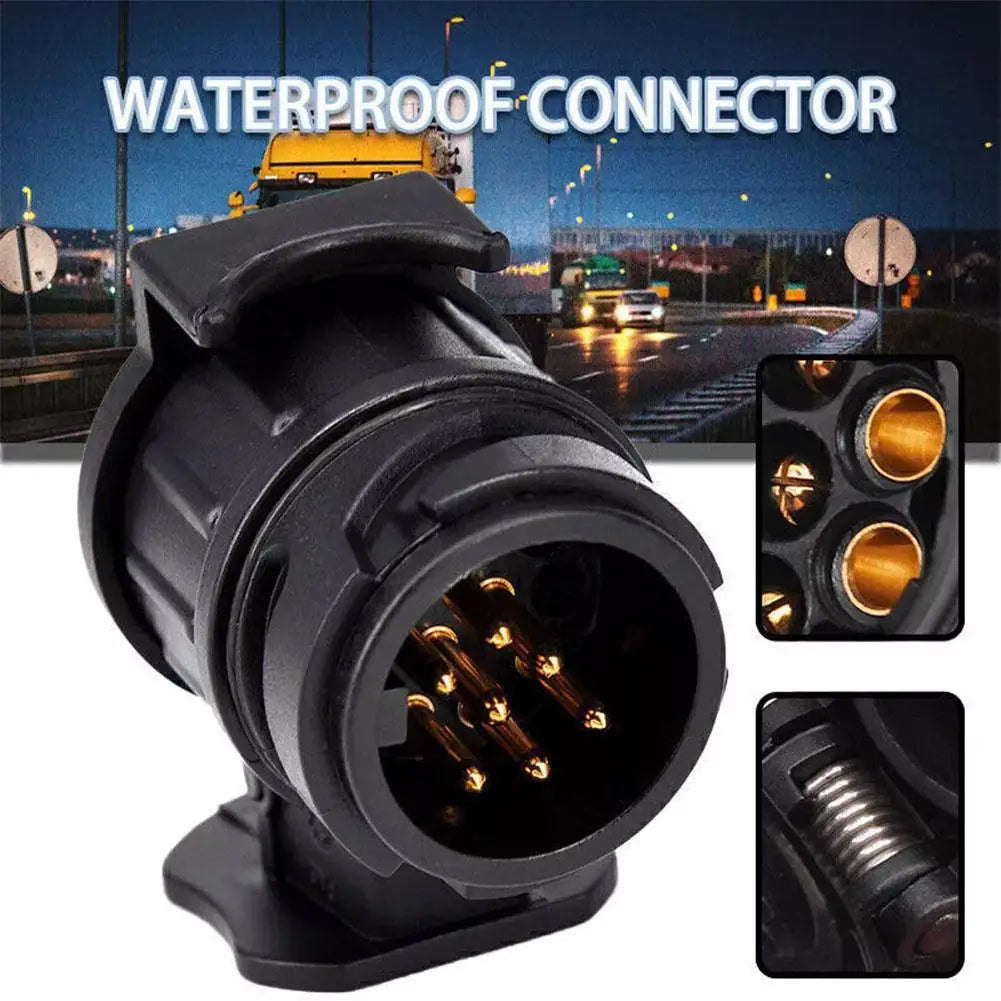

Weather proof sprung locking flap protects the connections when not in use and locks in the 7 pin plug when in use.

7 Pin Connections - 12 N Black Cable Function
PIN 1 - Yellow Wire (Left/H Direction Indicator)
PIN 2 - Blue Wire ( Rear Fog Lamps )
PIN 3 - White Wire ( Earth Return )
PIN 4 - Green Wire (Right/H Direction Indicator)
PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
PIN 6 - Red Wire (Brake lights)
PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )

13 Pin Connections - Cable Function
Pin1 - Yellow Wire ( Left Indicator )
Pin2 - Blue Wire ( Fog Light )
Pin3 - White Wire ( Earth Return )
Pin4 - Green Wire ( Right Indicator )
Pin5 - Brown Wire ( Right tail / Side Light )
Pin6 - Red Wire ( Brake / Stop Lights )
Pin7 - Black Wire ( Left tail / Side Light )
Pin8 - Pink Wire ( Reversing Light )
Pin9 - Orange Wire ( 12V Pemanent power from battery )
Pin10 - Grey Wire ( 12V Ignition on ( Battery charging or Fridge )
Pin11 - White / Black Wire ( Earth for Teminal 10 )
Pin 12 - White / Blue Wire ( NOT usually used )
Pin 13 - White / Red Wire ( Earth for Teminal 9 )
