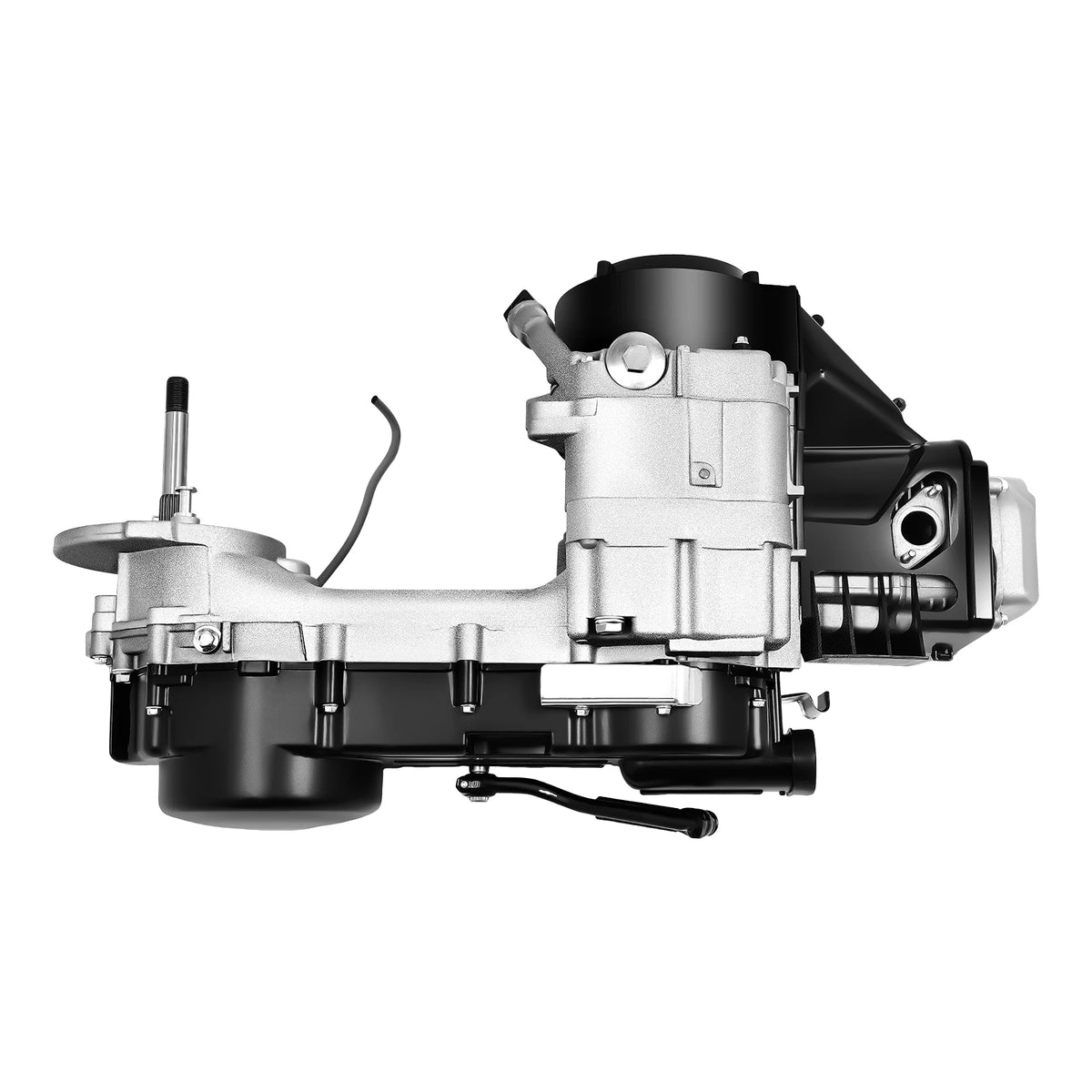

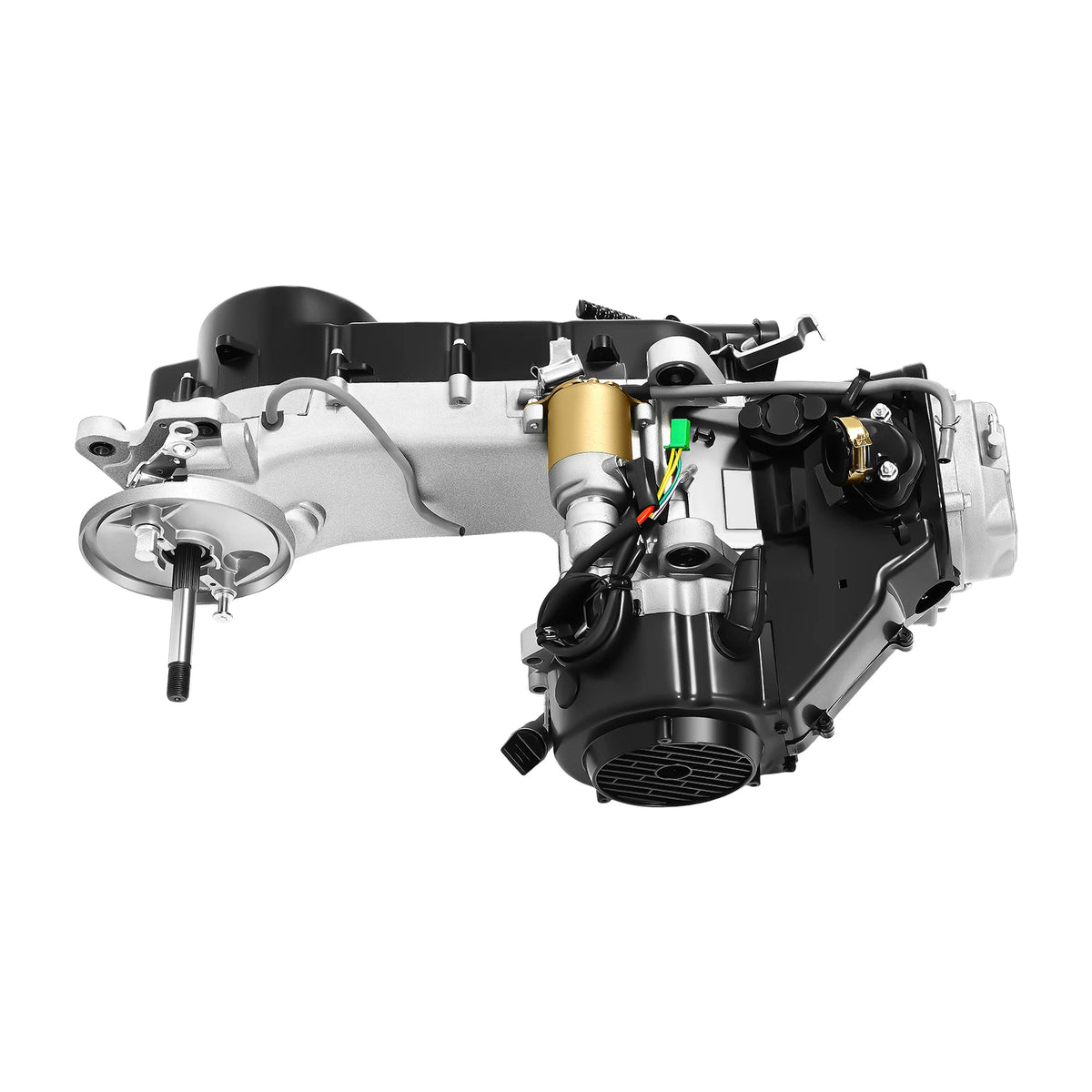

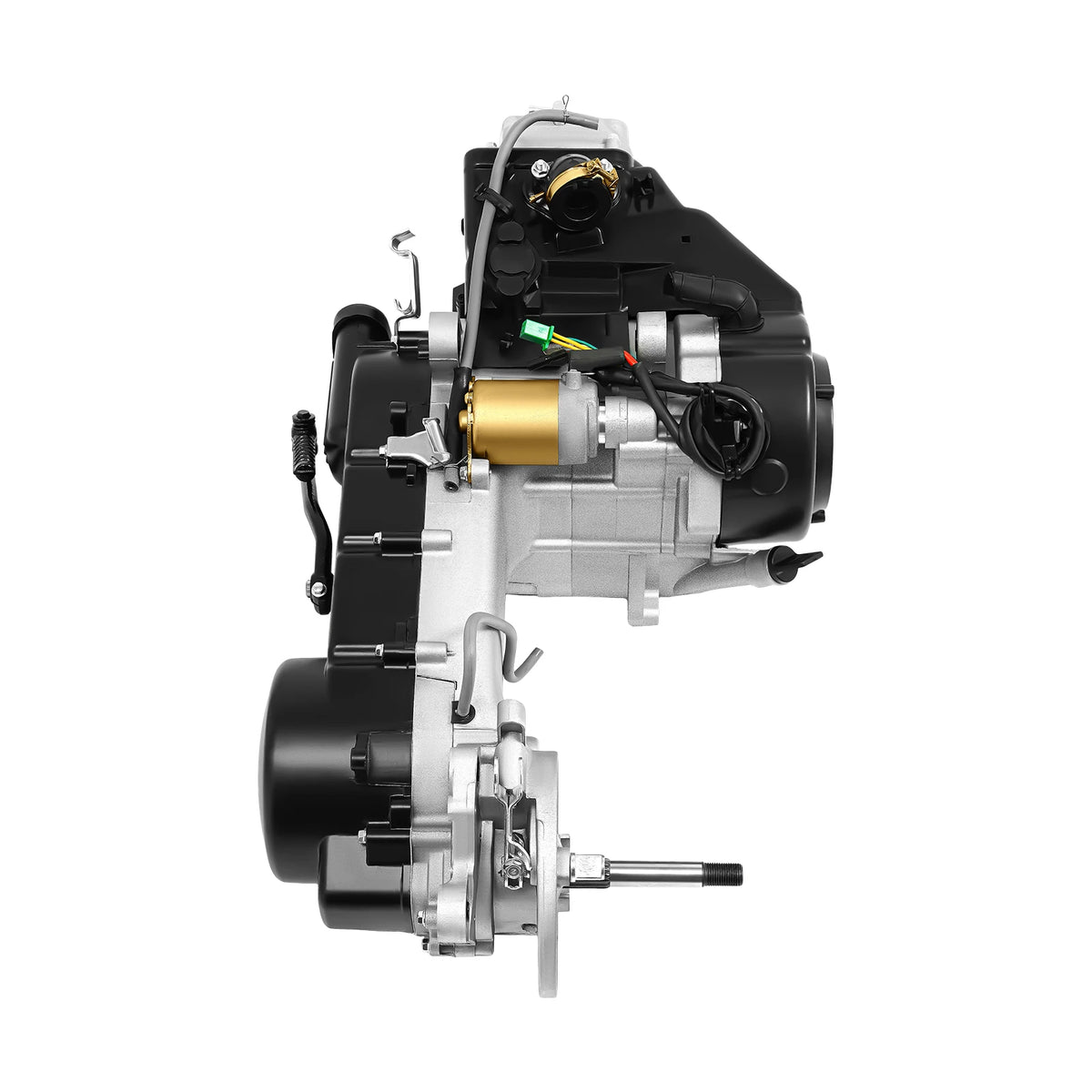

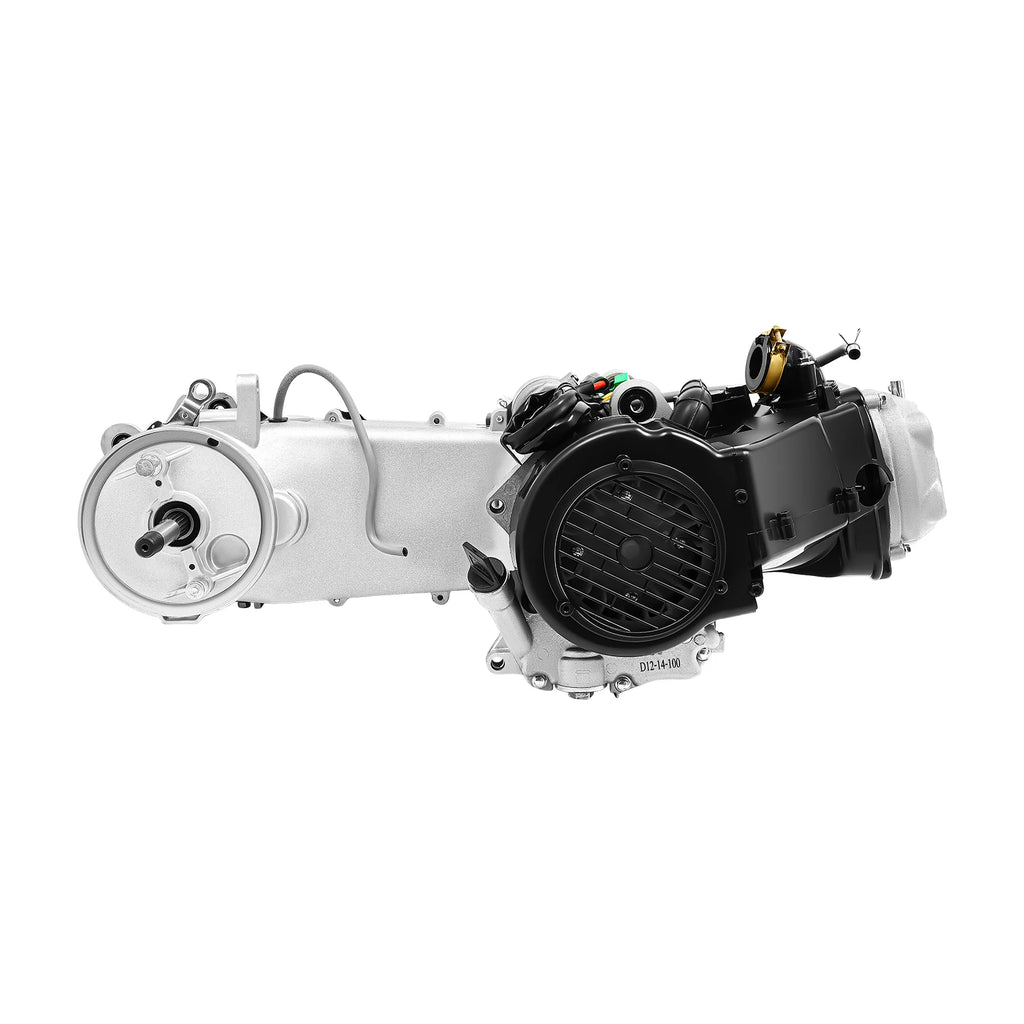

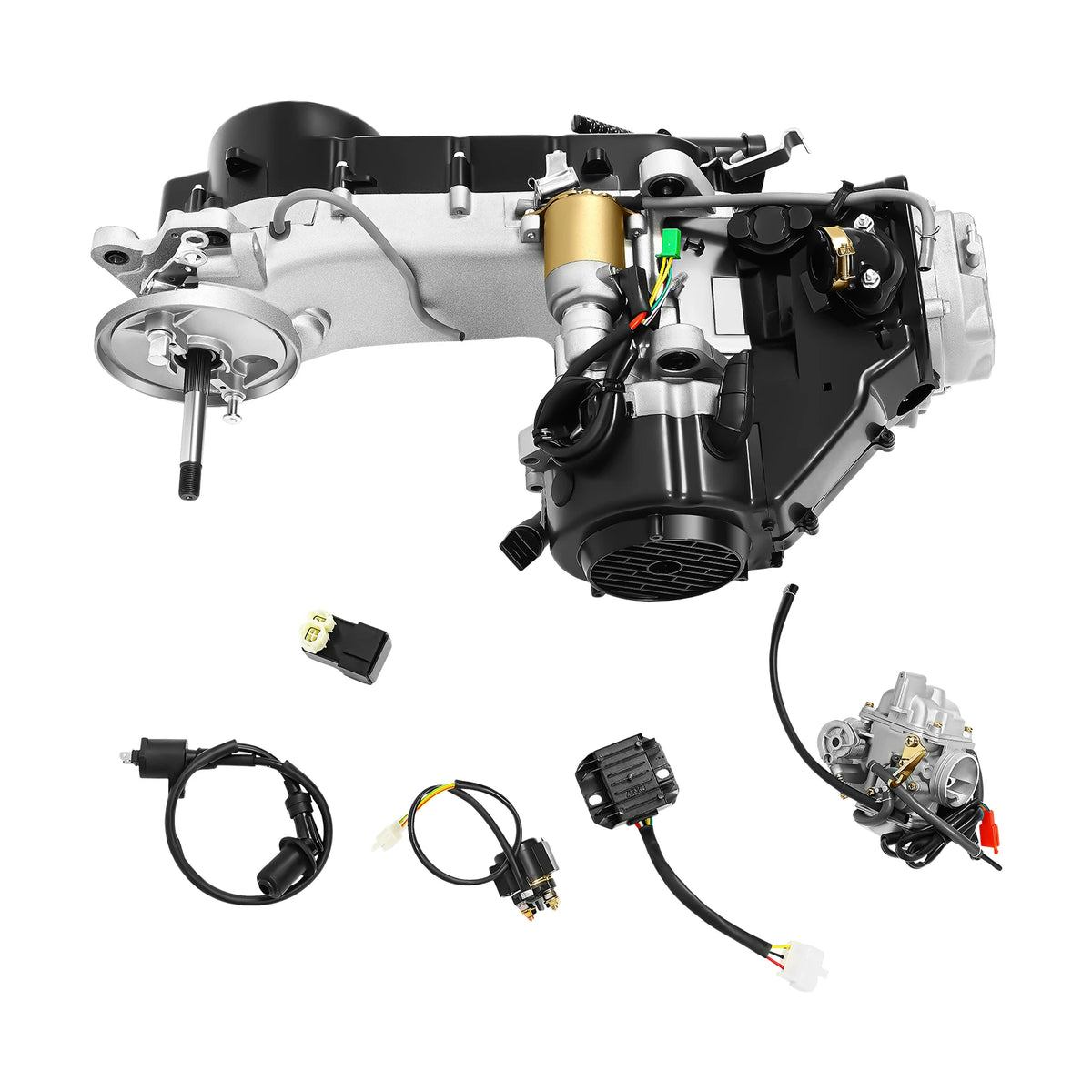

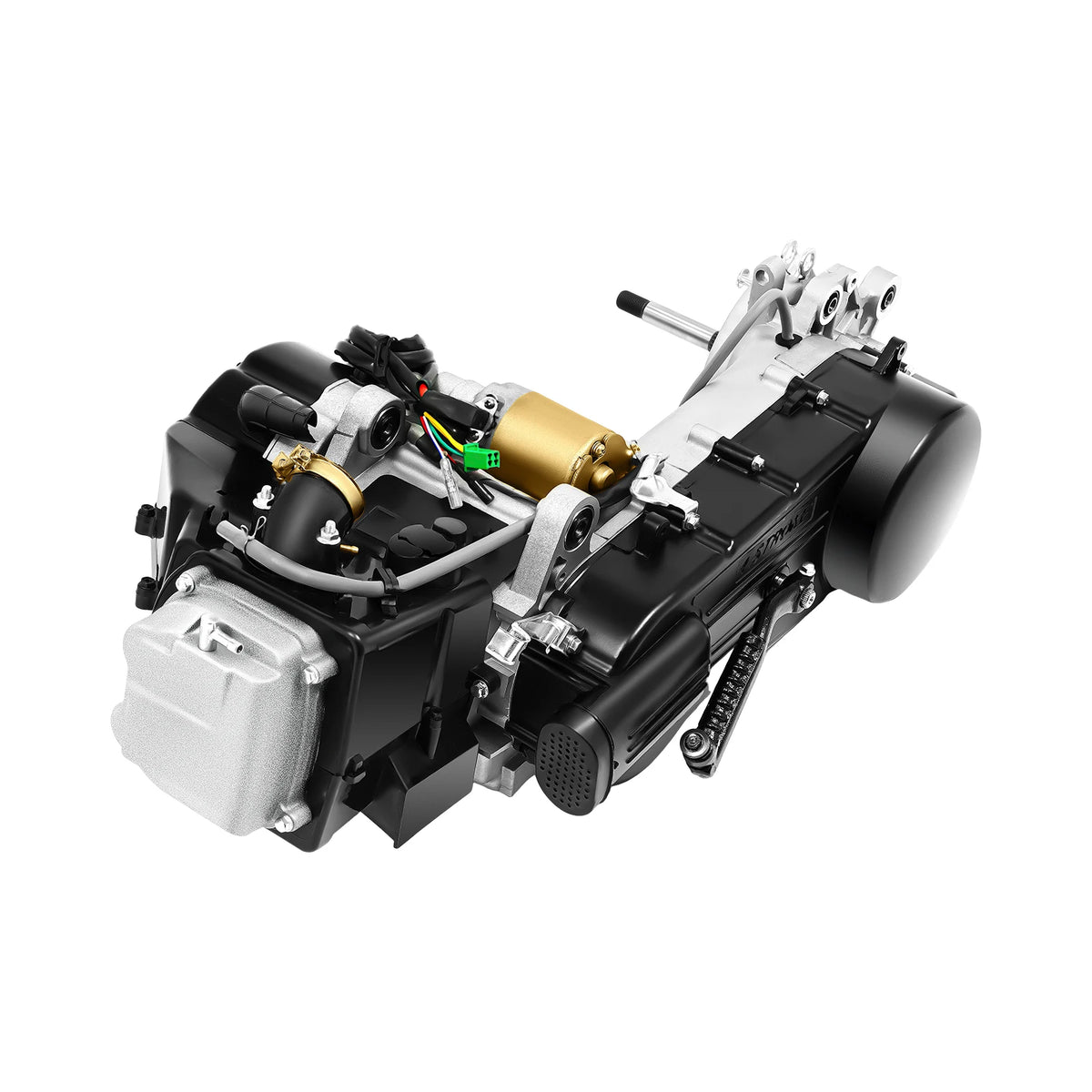

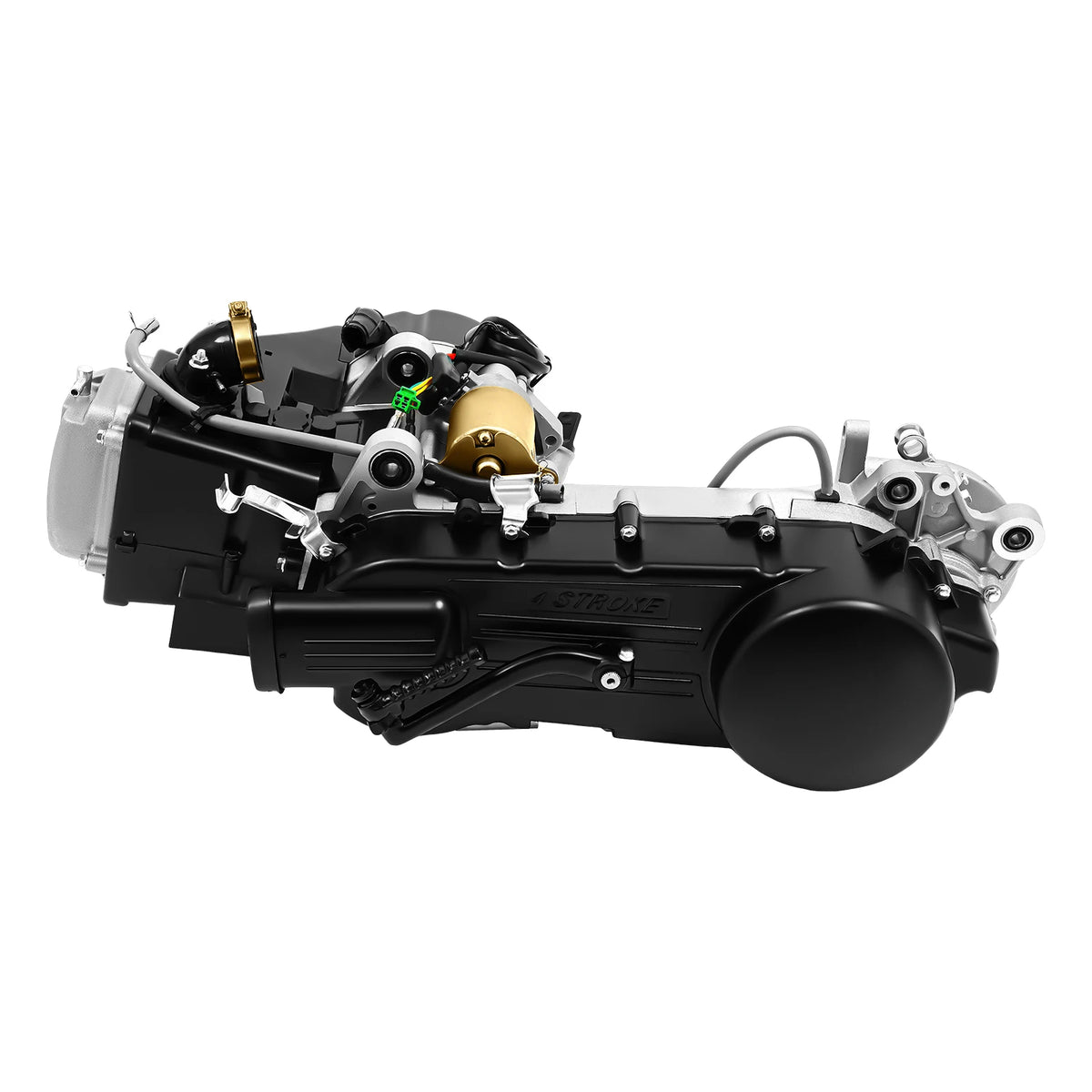

150cc GY6 Long Case Scooter Engine with CVT and Electric Start

A complete 150cc GY6 long case four-stroke engine for scooters and other two-wheel drive vehicles.

Key Features

• Direct replacement for GY6 11 inch long case scooters

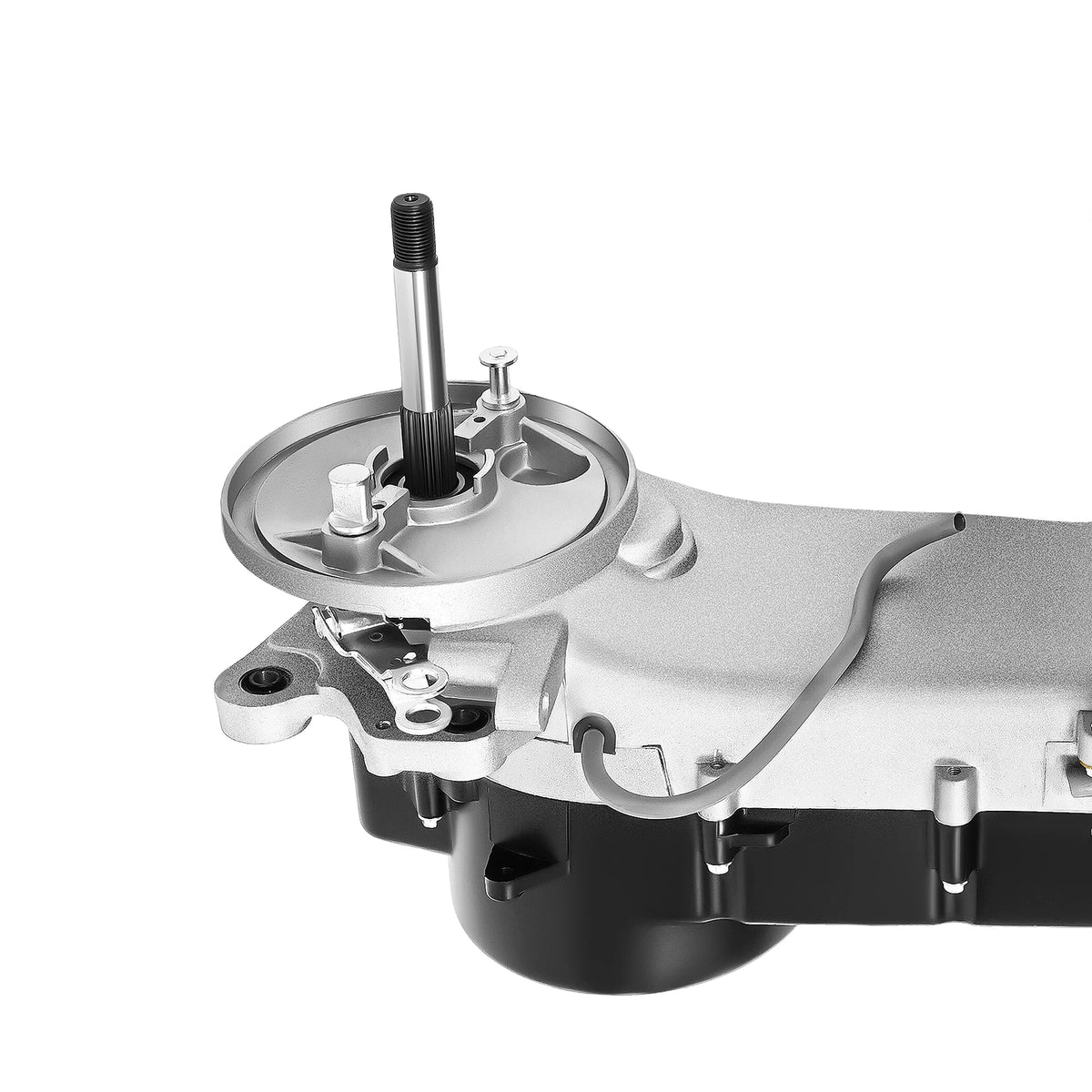

• CVT transmission with automatic centrifugal clutch
• Electric and kick start

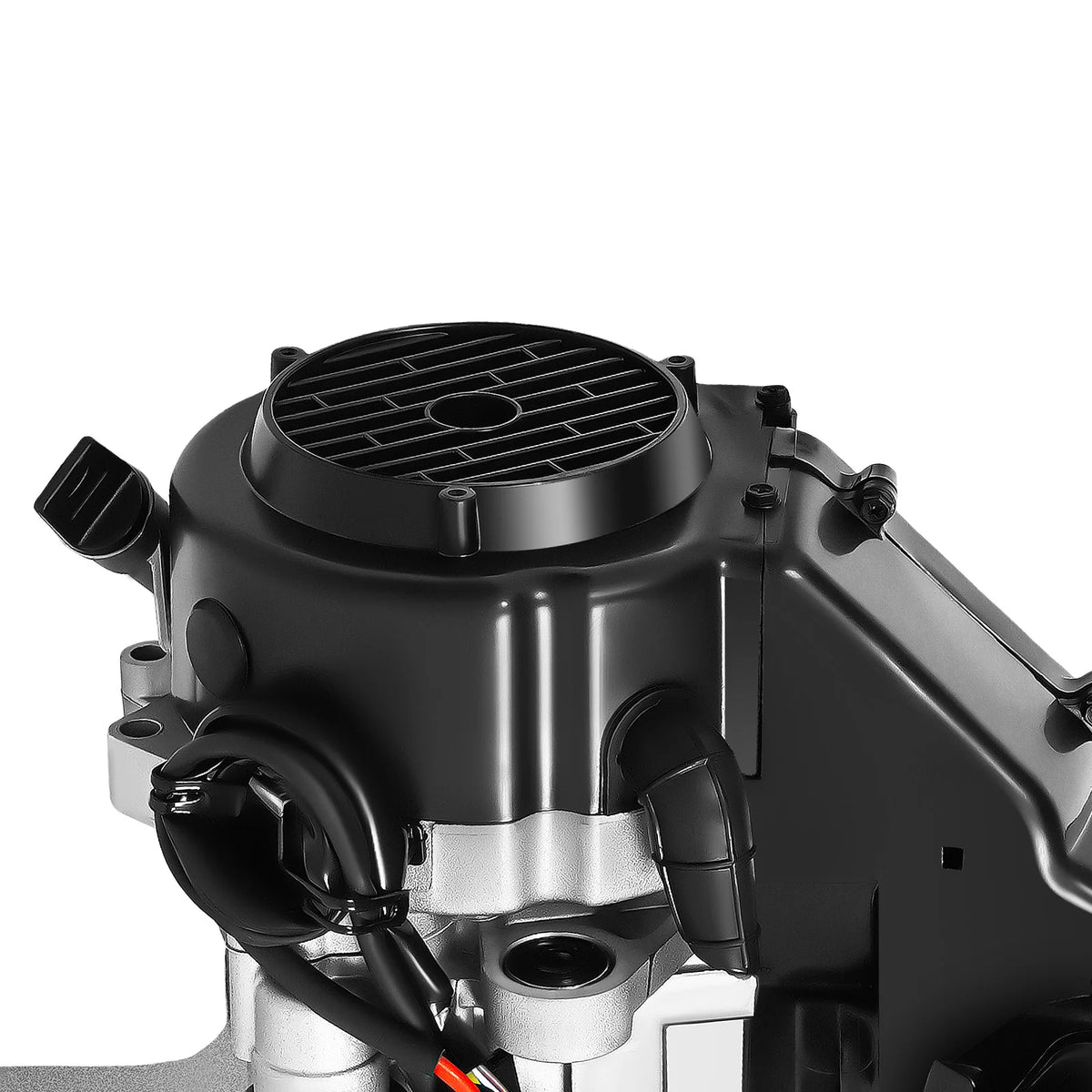

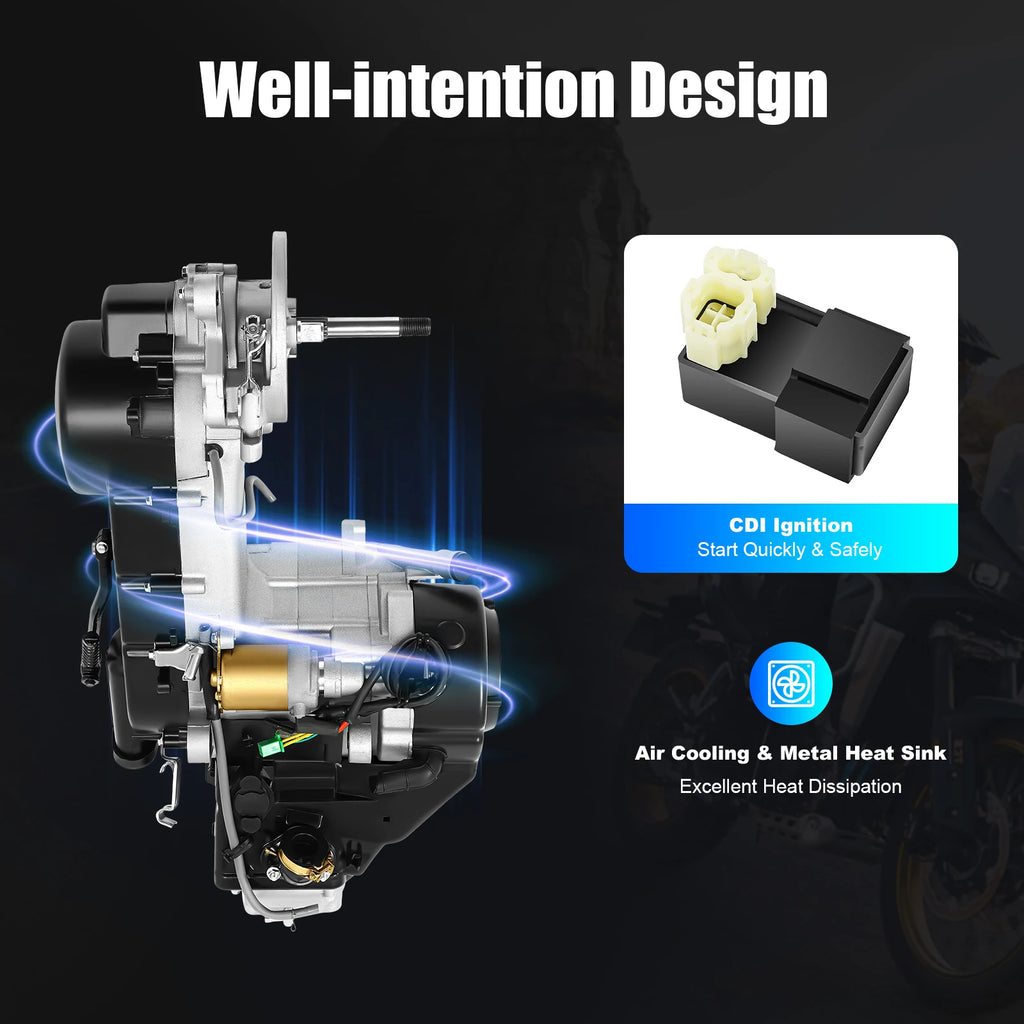

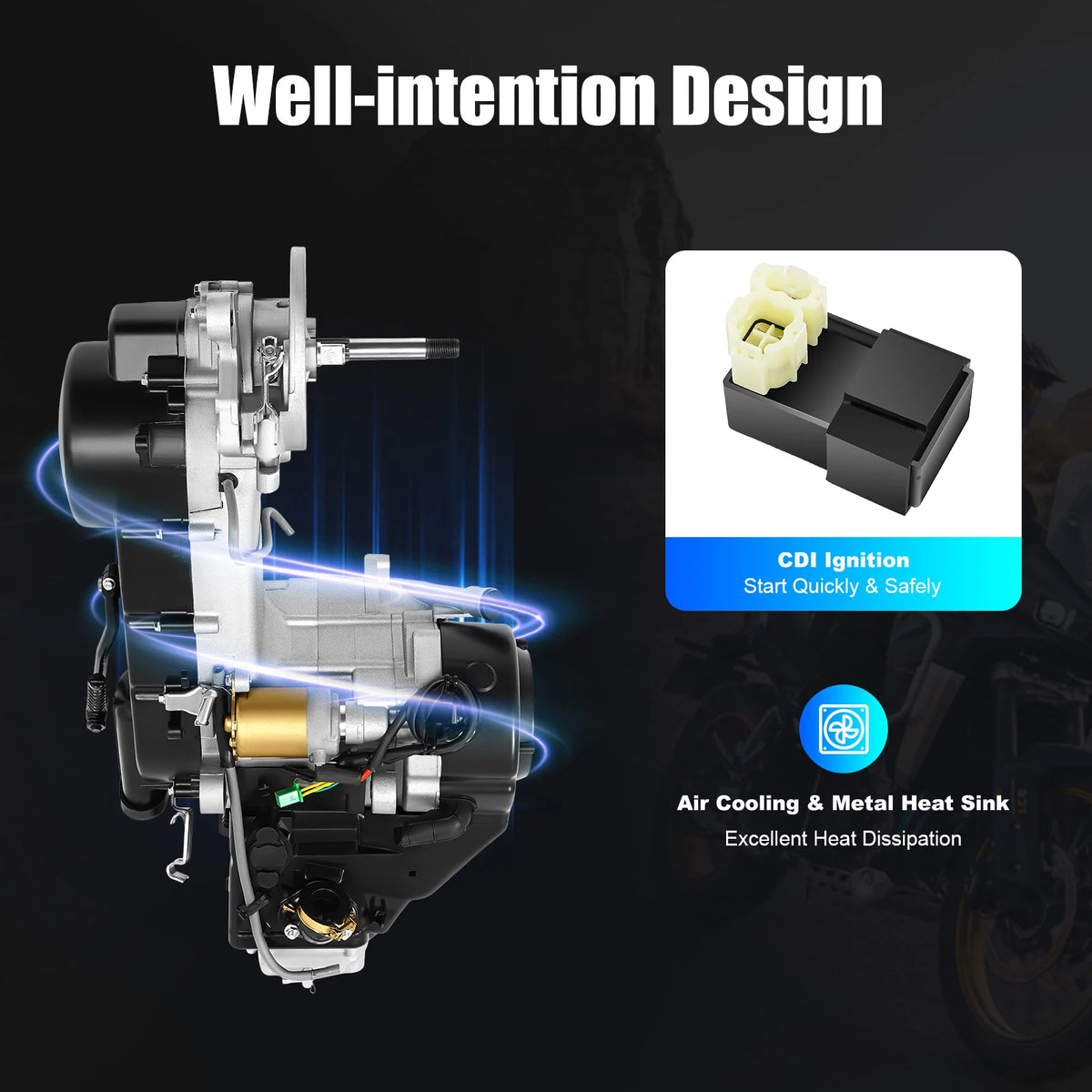

• Air-cooled cylinder with metal heat sink
• Aluminum alloy cylinder head and body

Specifications

• Engine type: GY6 single cylinder, 4-stroke, air-cooled
• Displacement: 149.6cc
• Bore x stroke: 57.4 x 57.8 mm (2.26 x 2.28 in)
• Max power: 6kW at 7500 rpm
• Rated power: 5.6kW at 7000 rpm
• Max torque: 7.6 N·m at 6500 rpm
• Compression ratio: 9.2:1

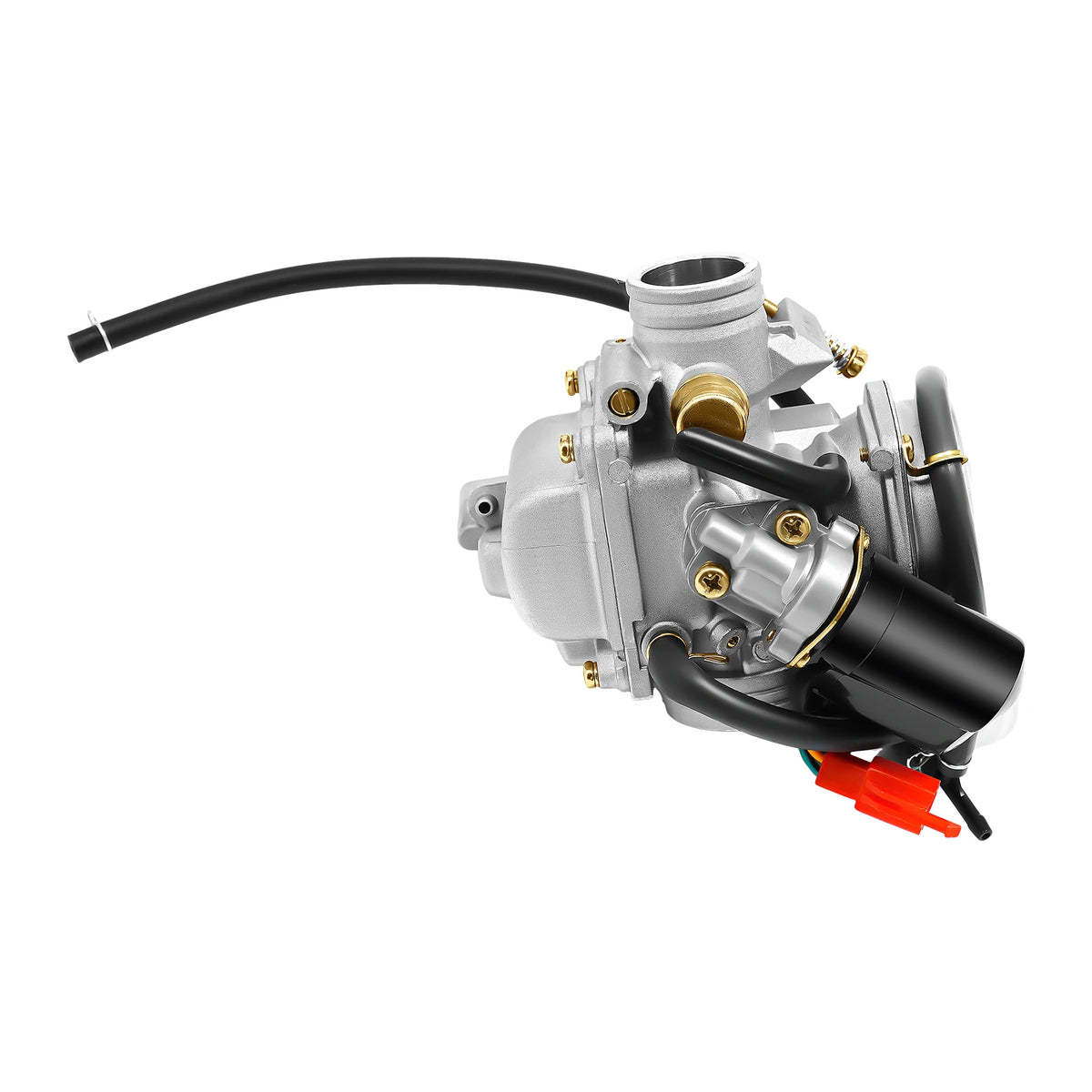

• Carburetor: PD24J horizontal vacuum
• Spark plug: A7TC
• Ignition: CDI
• Belt: 835
• Oil: SF15W-40, 1.2 L (0.26 gal), not included
• Fuel: 87 octane or higher
• Net weight: 27.08 kg (59.7 lb)
• Fitment: 150cc GY6 11 in long case scooters, GY6 125cc long case vehicles

Note: Installation requires mechanical skill. Check local rules before road or water use.
