SPECIFICATIONS

Battery Included: no

Brand Name: HTMCK

Choice: yes

DIY Supplies: Electrical

High-concerned chemical: none

Origin: Mainland China

Power Type: Battery-Powered

Semi-finishedproduct: No

With LCD Screen Or Not: Yes

Battery Included : No

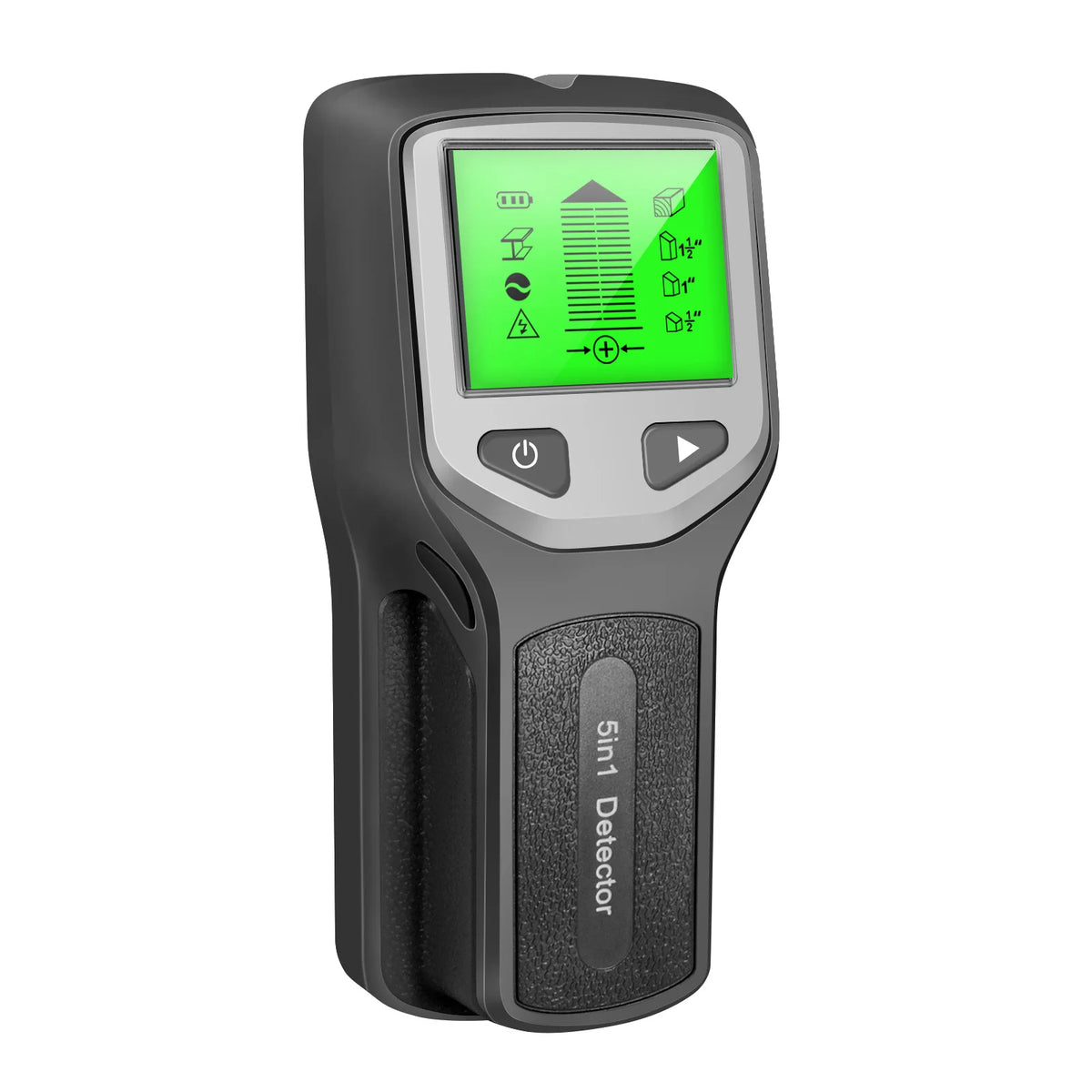

Product Name: 5 in 1 Multifunctional Wall Stud Detector
Model: HW430

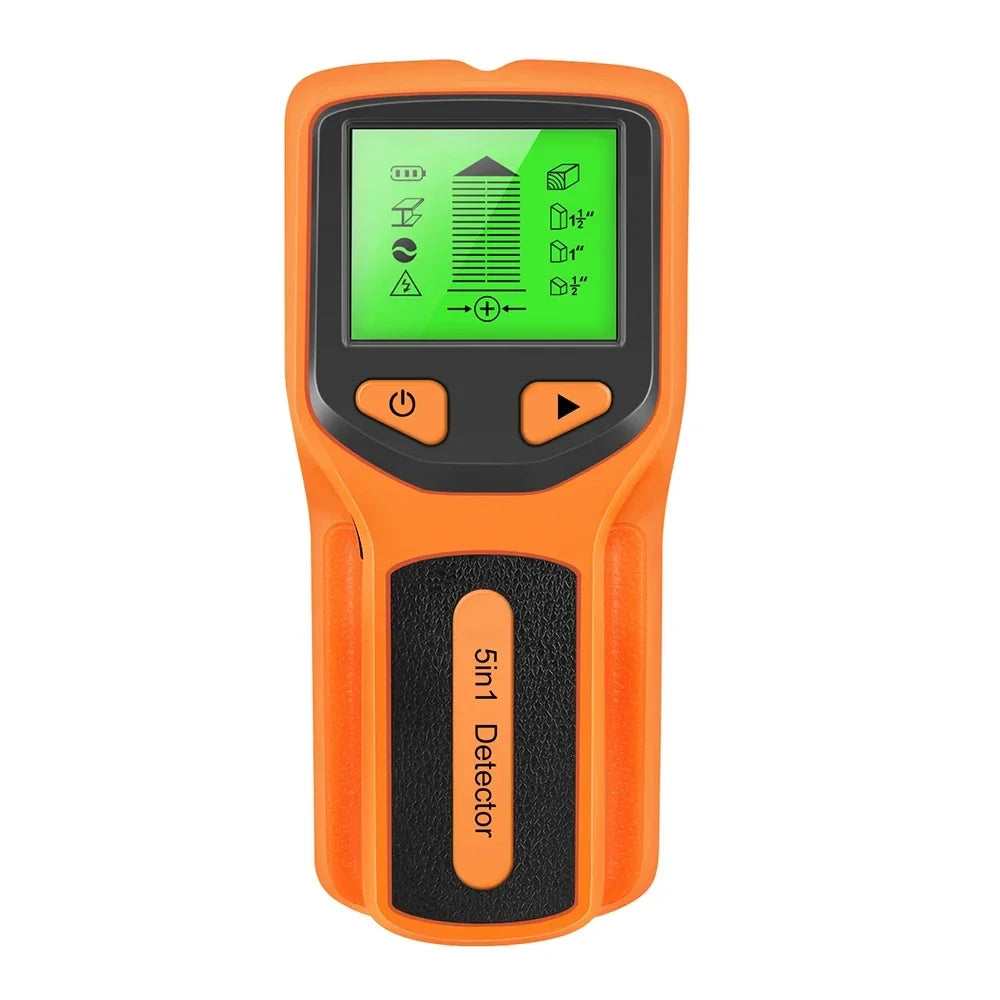

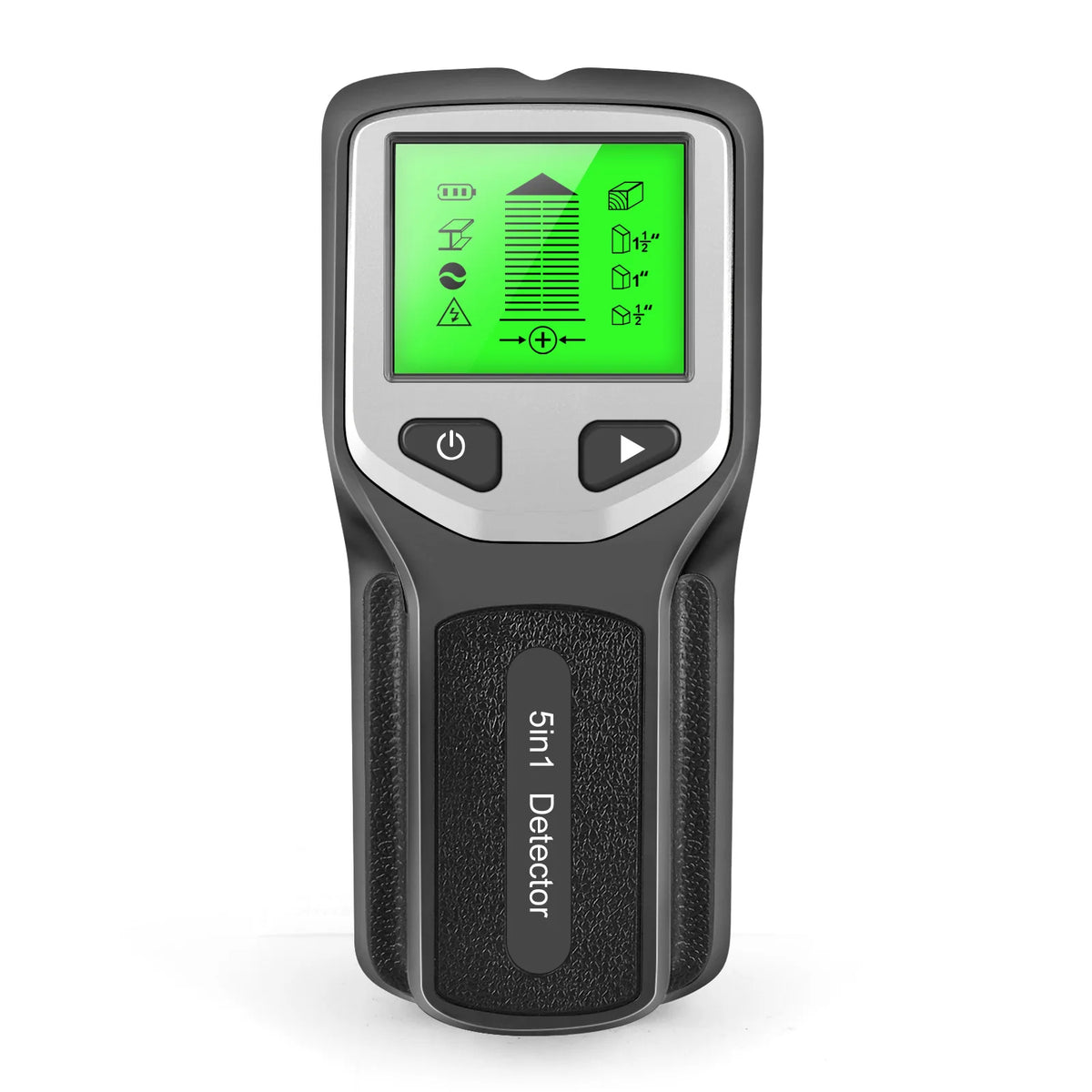

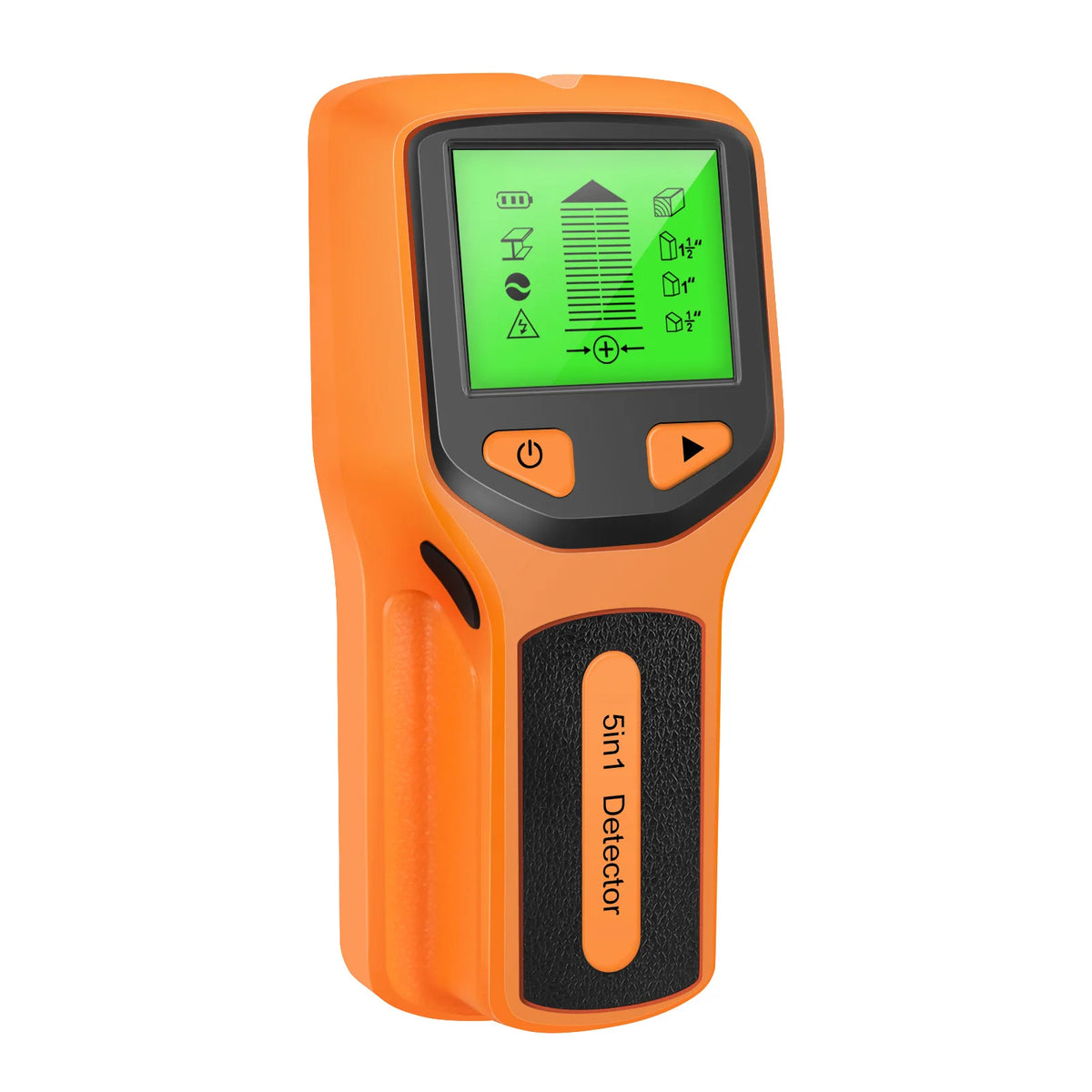

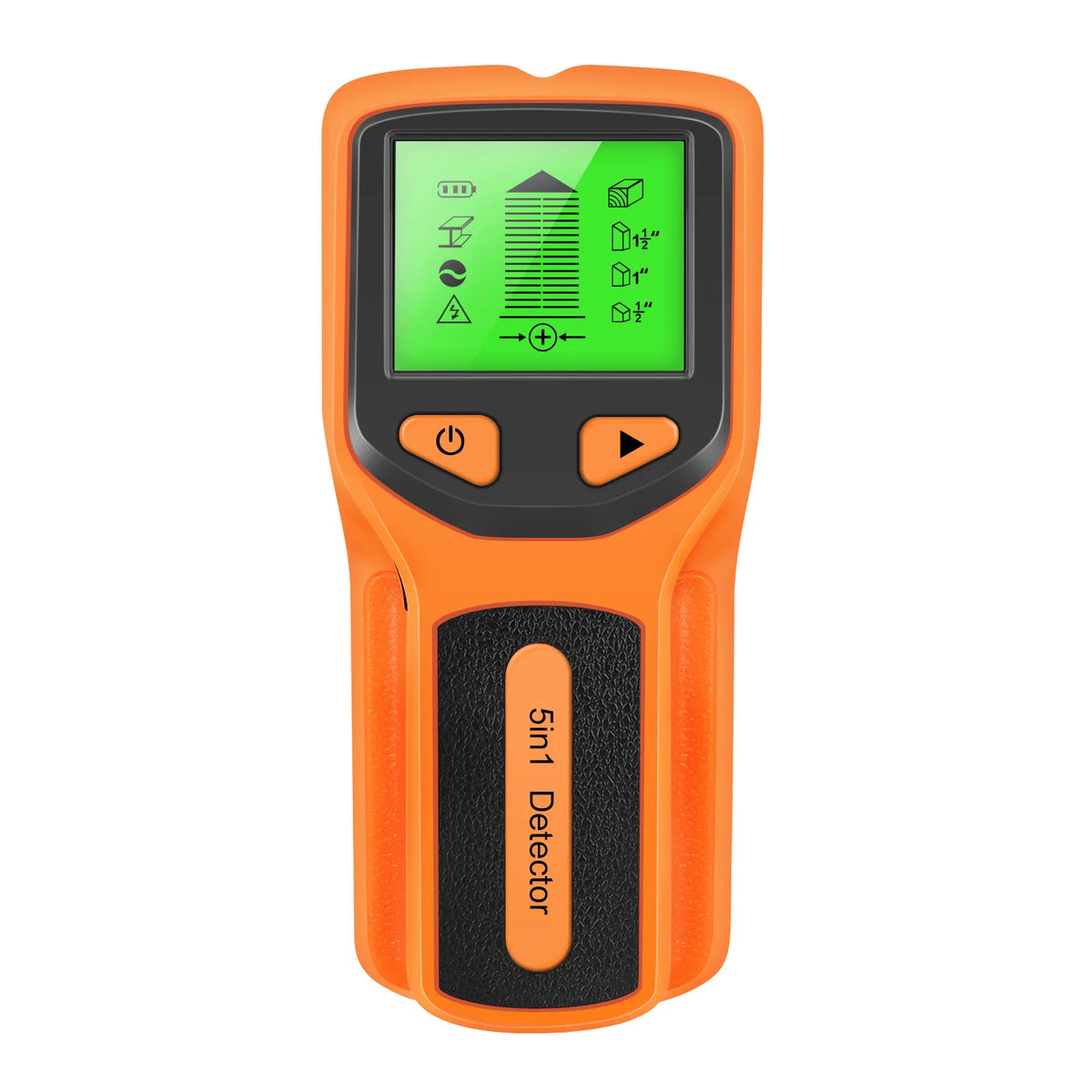

Color Options: Black, Orange, Silver
Power Supply: 9V 6F22 battery (Battery NOT included in package)
Product Net Weight: 168g
Product Dimension: 152 * 62 * 28 mm
Color Box Packing Size: 160 * 78 * 45 mm
Certification: CE Certified
Supported Surfaces: Drywall, wallpaper, wood floor, acoustic ceiling, painted wall, plaster wall
Max Detection Depth:
- Stud Scan: 13mm / 25mm / 38mm
- Metal Scan: 60mm
- AC Live Wire Scan: 51mm

Specifications

Non-slip textured rubber grip ensures stable holding during long-time scanning work.
Compact size: 1526228mm, lightweight only 168g, easy to carry in tool bags and store at home.
Durable plastic housing, drop-resistant for daily construction use.

5. Ergonomic Lightweight Handheld Design

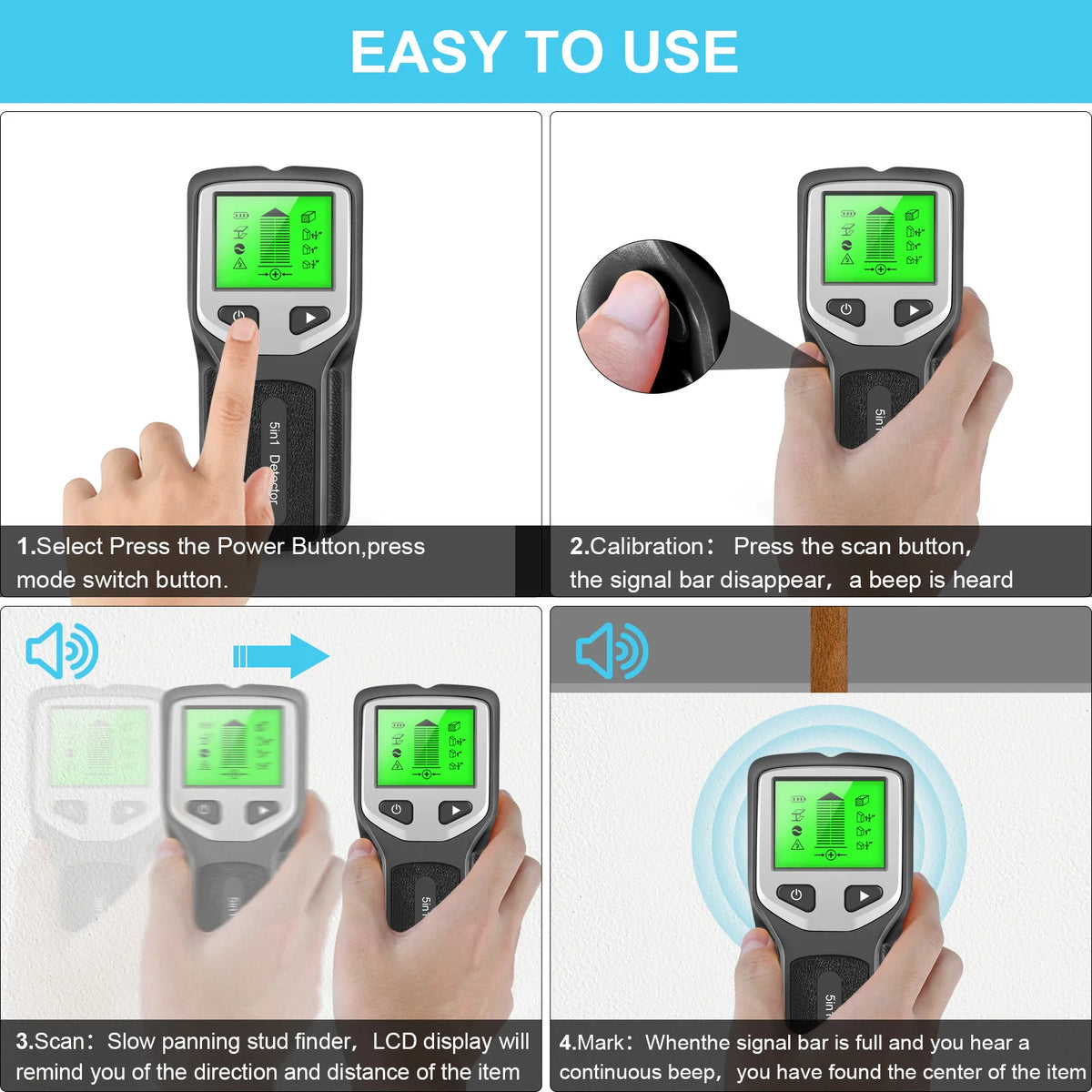

Power on the device by pressing the power button, switch target mode with the mode button.
Press and hold the scan button to complete auto-calibration, wait for a single beep when calibration finishes.
Slide the scanner slowly across the wall surface; the screen will show target distance and direction hints.
When full signal bar and constant beep appear, you have found the precise center of hidden objects.

Ultra user-friendly operation steps for all skill levels:

4. One-Button Simple Operation & Fast Calibration

When the detector approaches the target stud, metal or live wire, the signal bar on screen rises gradually with slow beeping sound. Once the device locks onto the exact center of the hidden object, full signal bar plus continuous loud beep alert you instantly for accurate marking.

3. Audio & Visual Dual Alarm System

Large green backlight screen clearly shows scanning mode, signal strength bar, center-point indicator, low battery reminder and target direction prompt. The intuitive icon layout lets you read detection results at a glance even in dim work environments.

2. Clear Green Backlit LCD Display

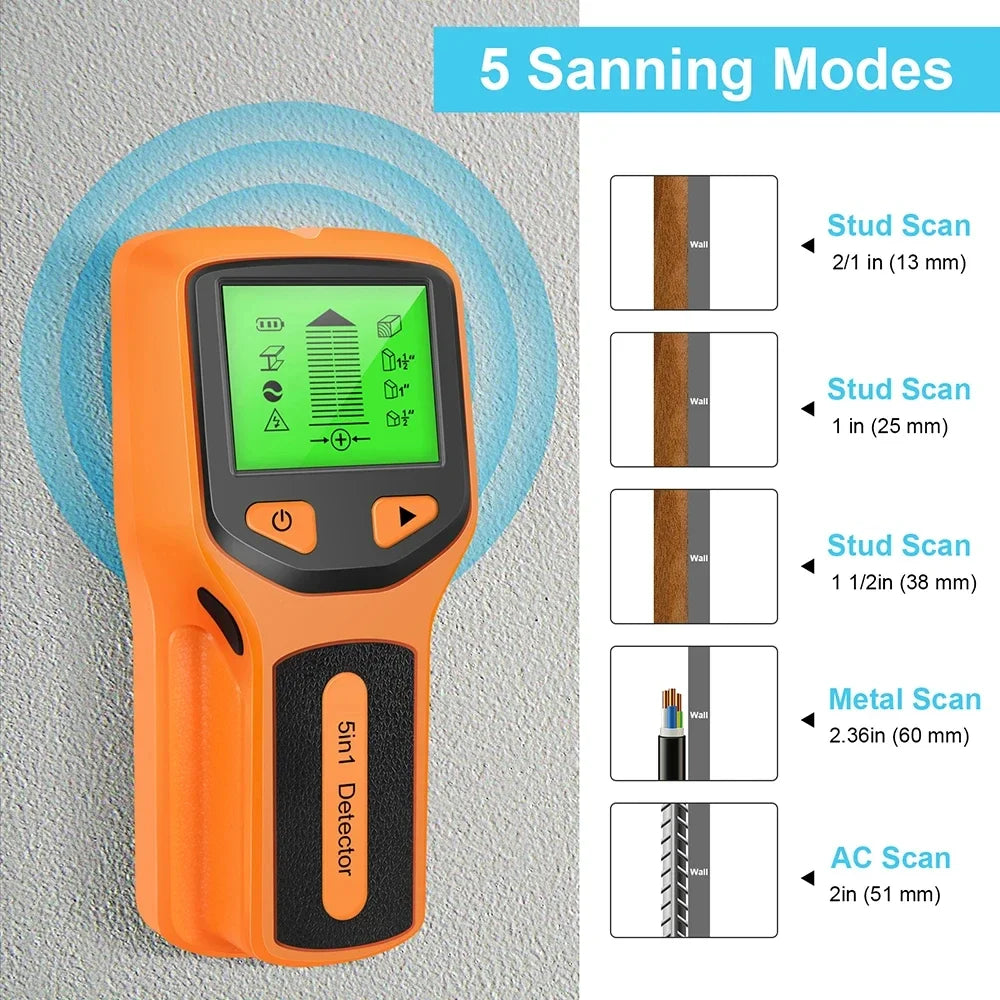

Stud ½ inch Scan (13mm Depth)

Detects the edges and exact center of wood & metal studs at shallow depth (max 13mm), ideal for thin wall panels.
Stud 1 inch Scan (25mm Depth)

Standard mode for most common drywall to locate stud edges and center precisely.
Stud 1½ inch Scan (38mm Depth)

Deep wall scanning mode for thick plaster, multi-layer wall boards to find deep buried studs.
Metal Scan Mode (Max 60mm Depth)

Detects hidden metal objects including steel studs, metal pipes, nails, screws and copper tubing up to 2.36 inches deep inside walls.
AC Live Wire Scan Mode (Max 51mm Depth)

Identifies unshielded energized AC wires hidden behind walls, with visual and audio alarm to warn of electrical risks.
