SPECIFICATIONS

AC Current: 0mA-10A

AC Voltage: 0V-600V

Battery Included: no

Brand Name: ANENG

Certification: CE

Choice: yes

DC Current: 0mA-10A

DC Voltage: 0V-600V

DIY Supplies: Electrical

Dimensions: /

Display Type: Digital Display

High-concerned chemical: none

Is Smart Device: no

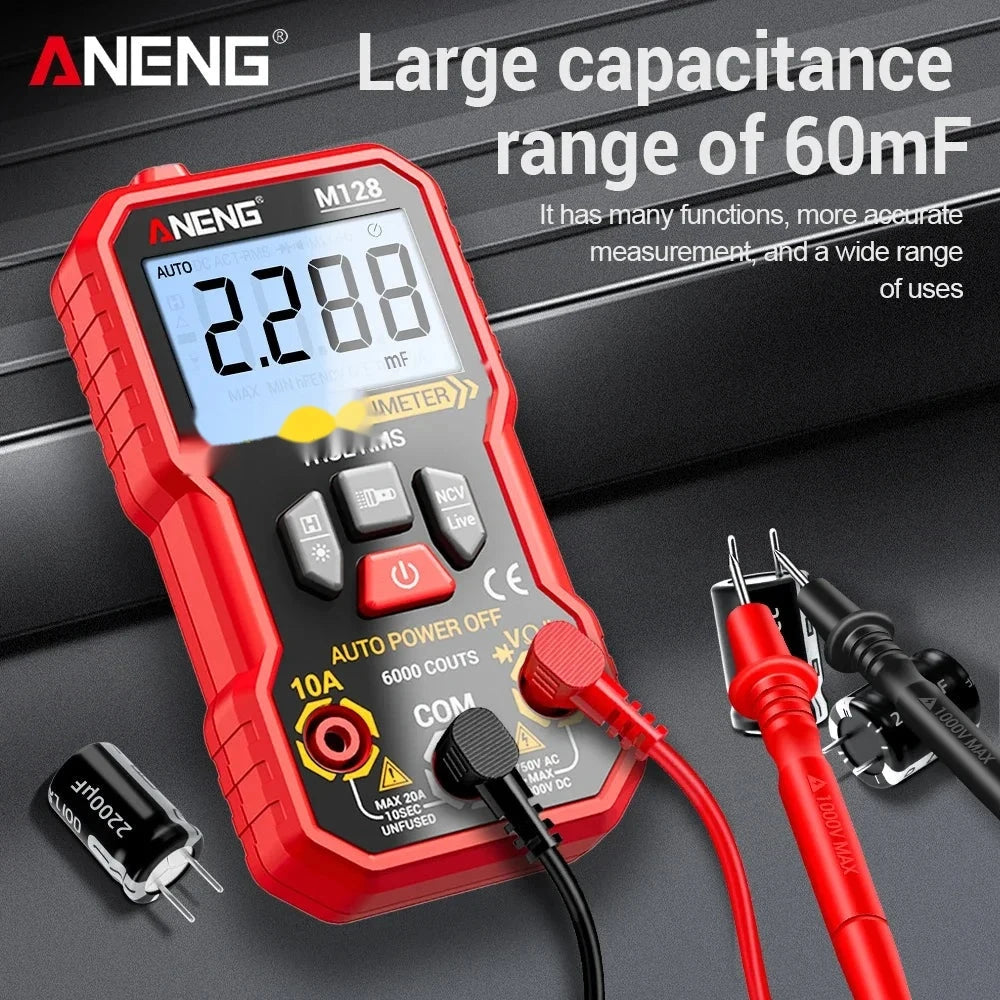

Measuring Capacitance Range: 0nF-60mF

Measuring Inductance Range: /

Measuring Resistance Range: 0-60MOhm

Model Number: M128

Operating Mode: Auto Range

Operating Temperature: 0 - 40 ℃

Origin: Mainland China

Semi-finishedproduct: No

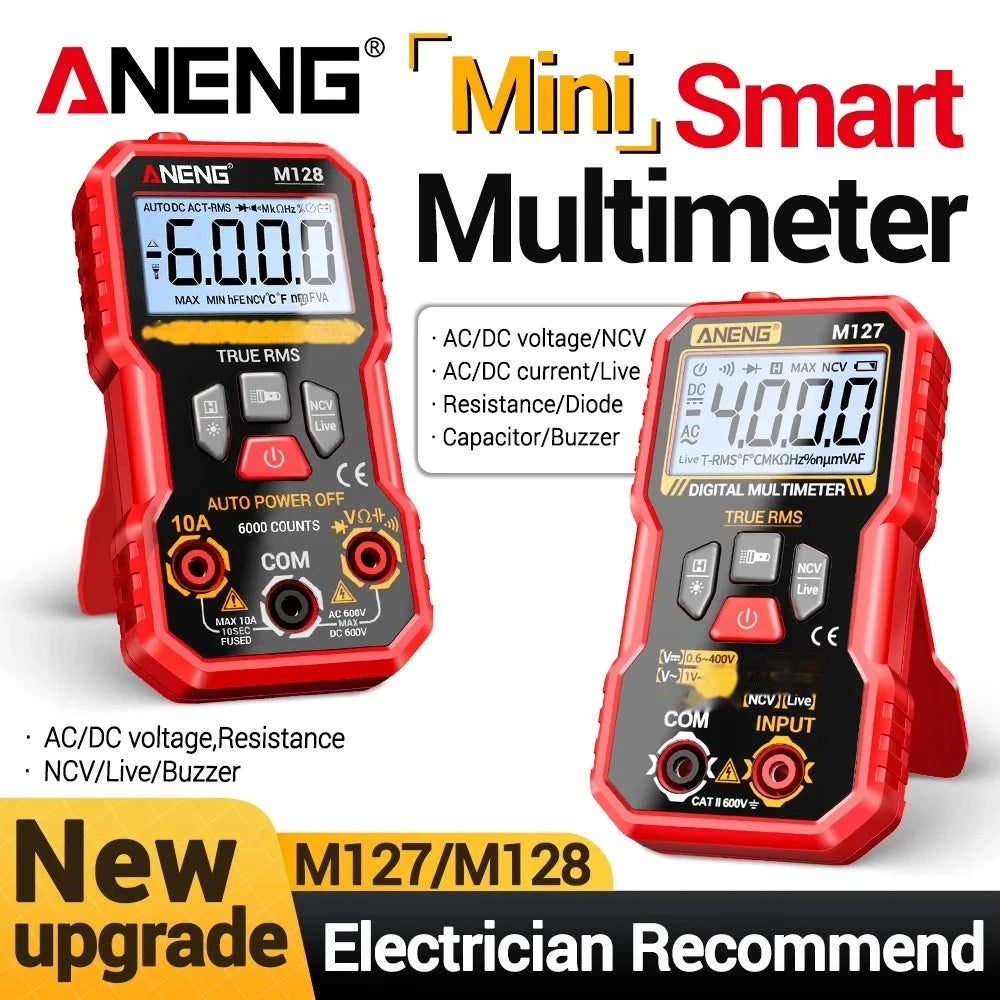

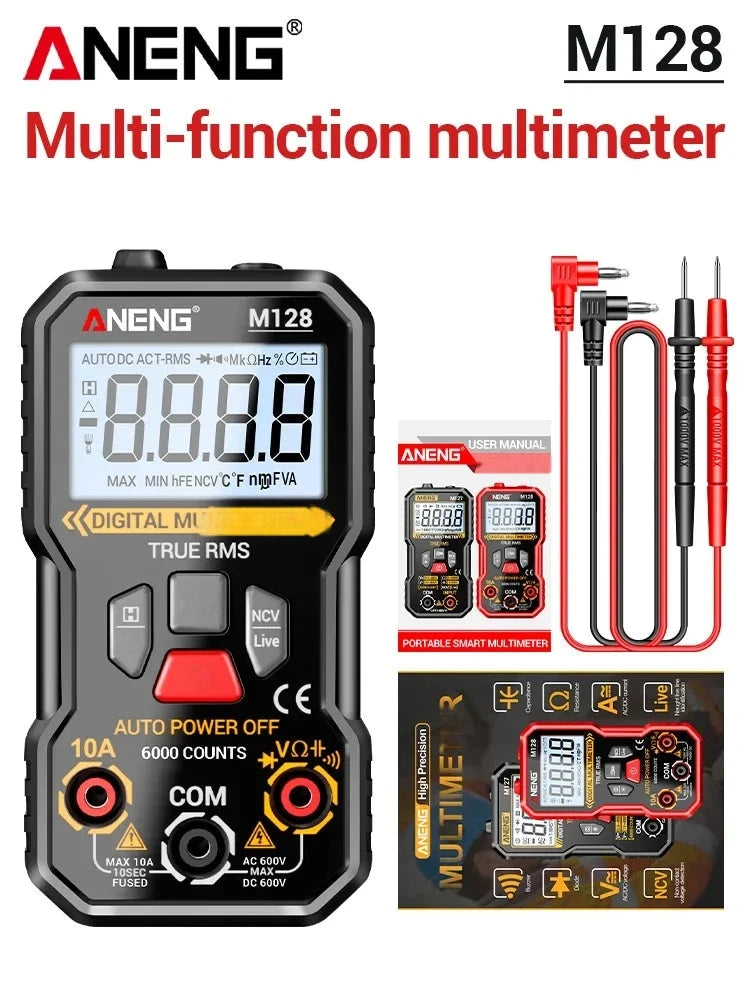

Digital Multimeter Tester ANENG M127/M128 AC/DC current Tester Voltmeter Ammeter Capacitance Meter NCV voltage electrician tools

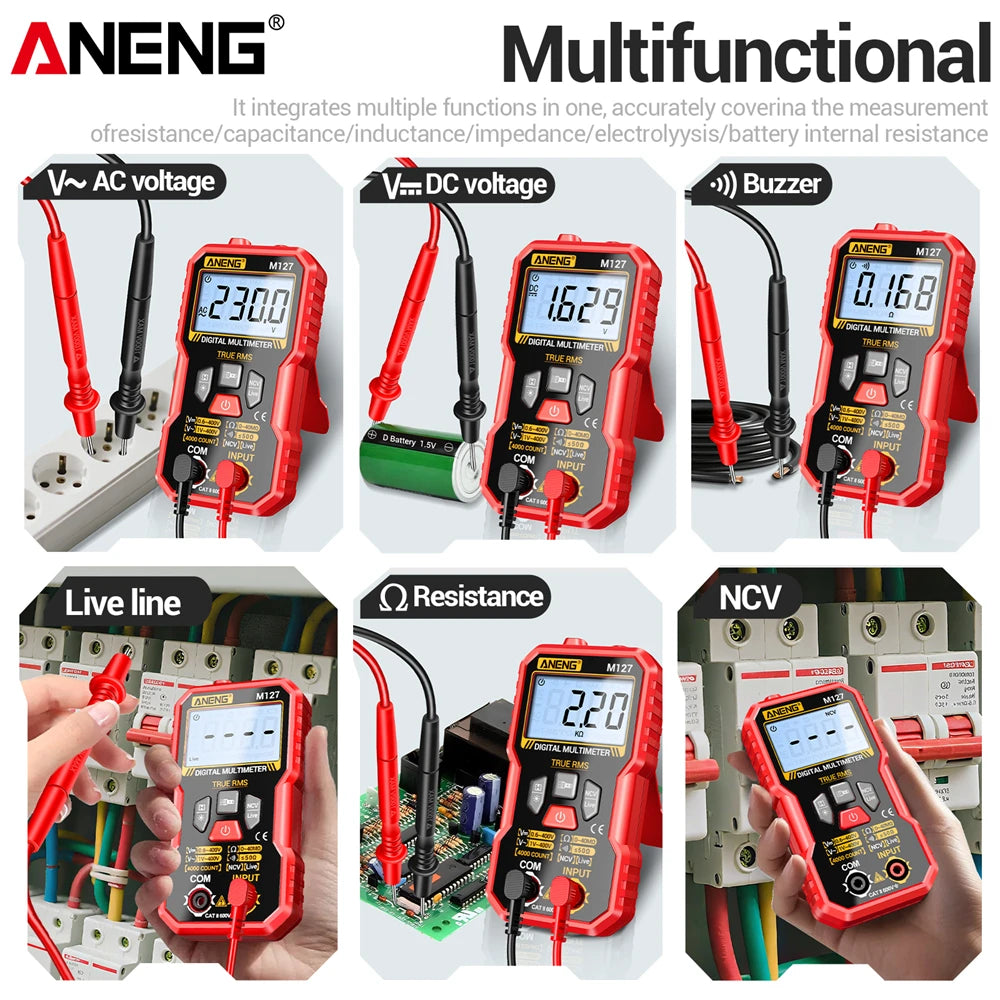

A.Overview:
Automatic selection of measuring function and range.
Full range oveload protection.

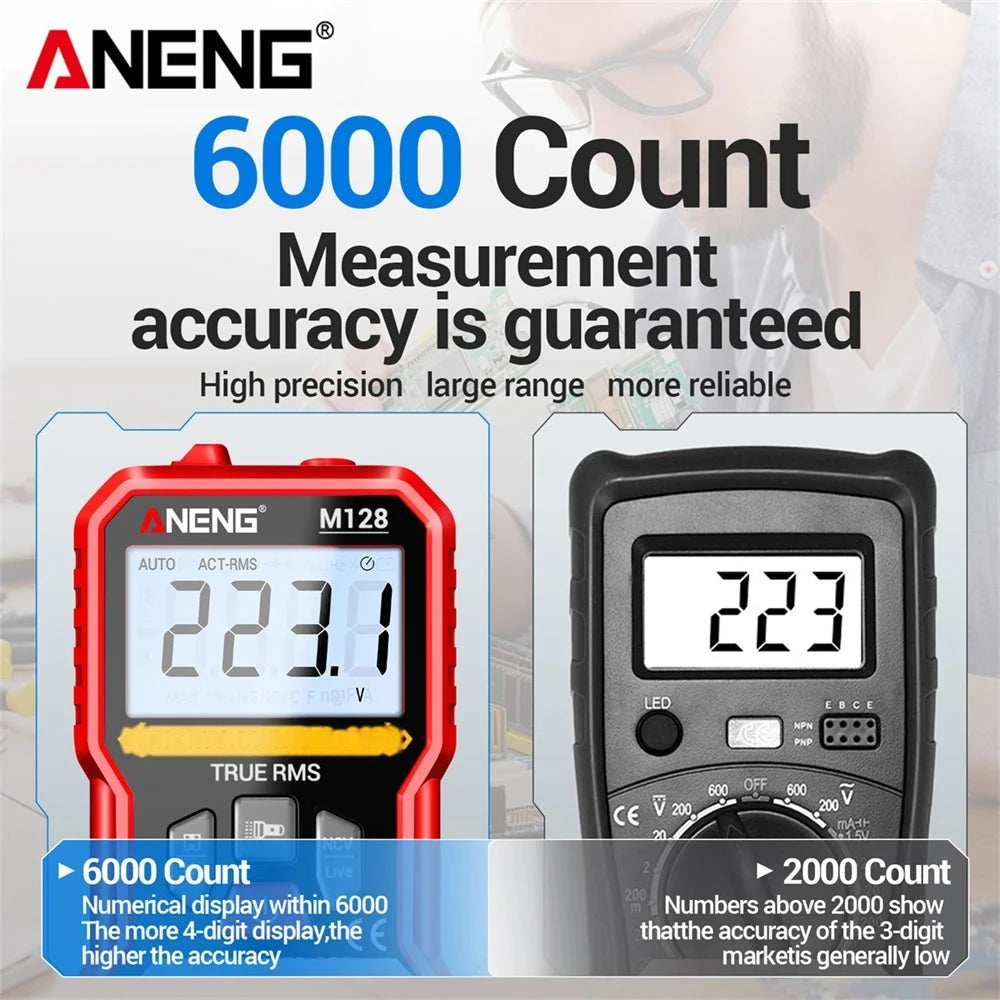

Max. display value:M128 6000Counts.
Max. display value:M127 4000Counts.
Automatic shut down time:15 minutes
Sampling time: about 3 times/second
power supply:2*1.5V AAA Battery (Ship without battery)
M128:The max voltage between the measuring end and the ground is 600V DC or 600V AC.
M127:The max voltage between the measuring end and the ground is 400V DCor 400V AC.

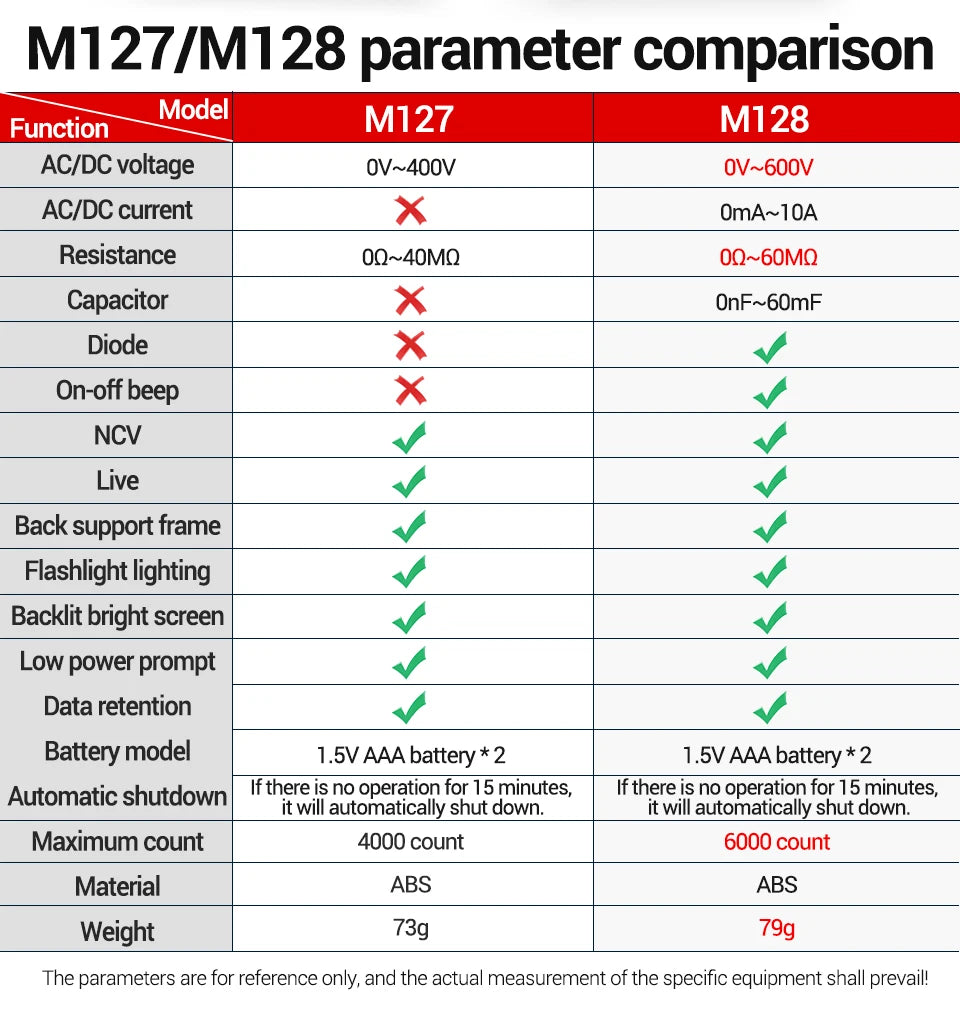

B.Specification:

	M127	M128
Function	Range	Precision
AC/DC voltage	0V~400V	0V~600V
AC/DC current	×	0mA~10A
Resistance	0Ω~40MΩ	0Ω~60MΩ
Capacitance	×	0nF~60mF
Diode	×	√
On-off beep	×	√

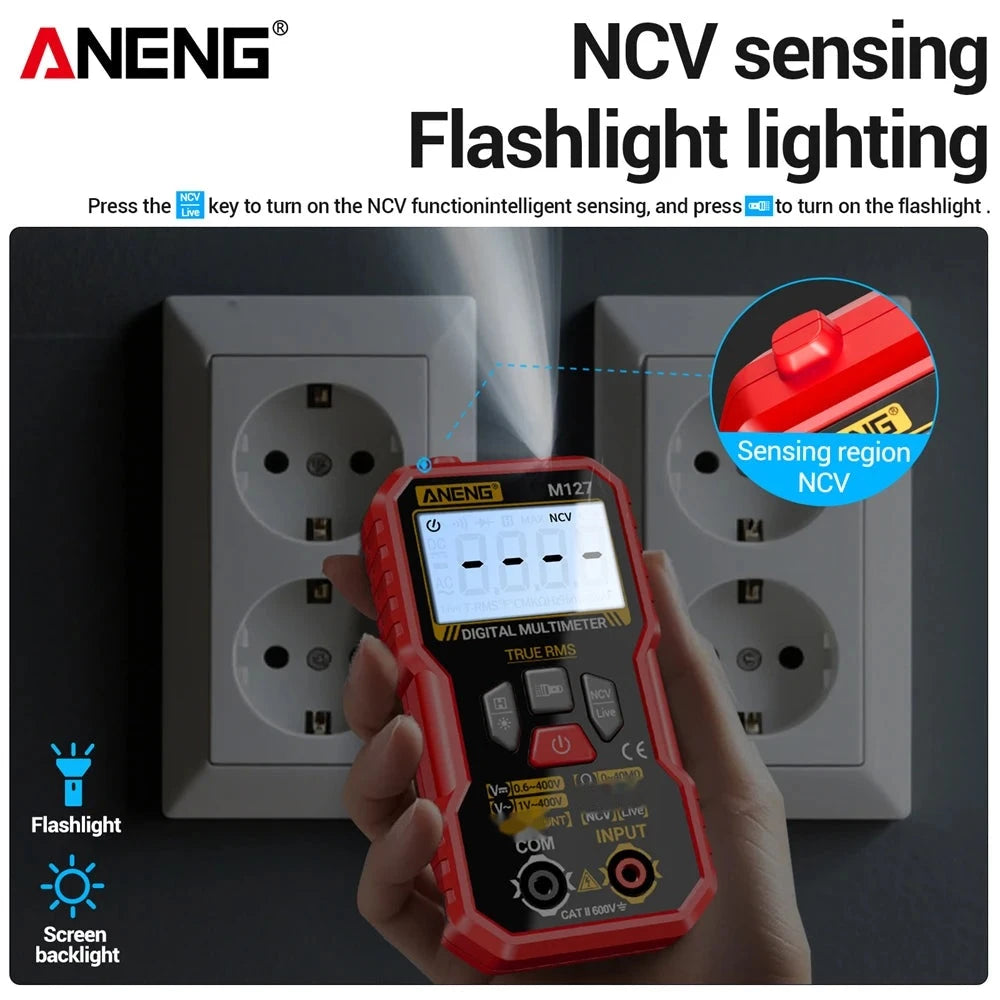

NCV	√	√
Live	√	√
Back support frame	√	√
Flashlight lighting	√	√
Backlit bright screen	√	√
Low power prompt	√	√
Data retention	√	√
Maximum count	4000 Counts	6000 Counts
Material	ABS
Battery model	1.5V AAA 2 (without Battery*)
Automatic shutdown	After 15 minutes without operation

C.Usage Precautions:
1. Do not touch the probes directly with your hands to avoid electric shock and ensure personal safety during testing.
2. Before use, inspect the test probes to ensure there is no damaged insulation or exposed metal.
3. Do not use the current and voltage ranges interchangeably to prevent damage to the instrument.
4. It is best to remove the batteries when not in use for a long time to prevent battery corrosion of other internal components of the instrument.
5. If you do not know the magnitude of the voltage or current to be measured, start with the highest range and then select the appropriate range based on the measured value.
D.Package Include:

According to your choice
