SPECIFICATIONS

AC Current: Yes

AC/DC Voltage: Yes

Battery Included: no

Brand Name: ANENG

Buzzer Sound: Yes

Certification: NONE

Choice: yes

Color: Yellow Red Bule

Continuity Test: Yes

DIY Supplies: Electrical

Dimensions: 232*92*40MM

Display: LCD 1999 Counts

Display Type: Digital Only

High-concerned chemical: none

Material: ABS

Measuring Capacitance Range: /

Measuring Current Range: 200A/1000A

Measuring Inductance Range: /

Measuring Resistance Range: 200/20k

Measuring Voltage Range: AC

Model Number: ANENG DT266 Professional Clamp Meter

Operating Temperature: 0-40

Origin: Mainland China

Overload Protection: Yes

Semi-finishedproduct: No

Weight: 203G

ANENG DT266-8

Digital Clamp Meter True RMS Professional 1999 Count AC/DC Voltage Large Resistance Voltmeter Ohmmeter Multimeter tester Tools

A.Features:
This meter is completely portable,LCD,3-1/2 digital clamp meter with insulation test function(with option 500V insulation tester unit).Designed for use by electricians,technicians,serviceman and hobbyists who required an instrument that is accurate,reliable,and always ready for use.It has rugged structure design,good feeling held in operator's hand and convenient use.

B.Technical characteristics:

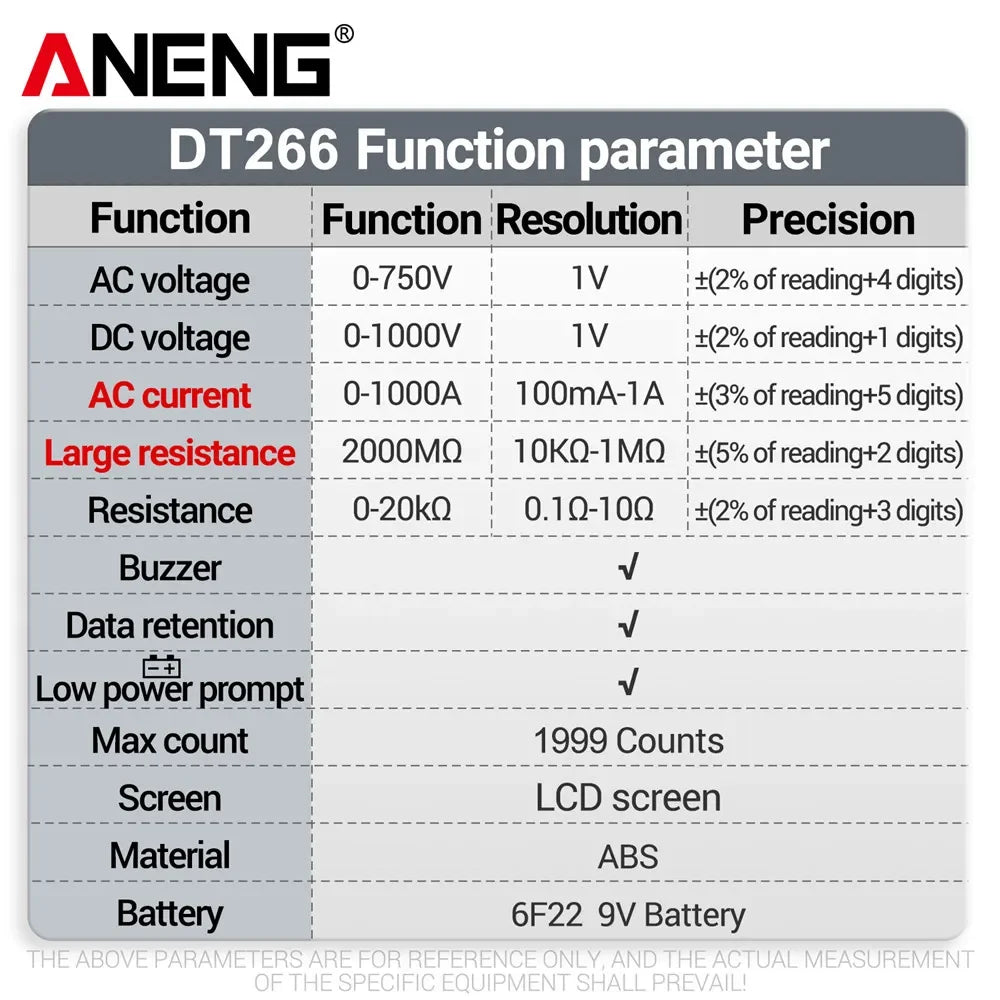

DT266 Function parameter
Function	Range	Resolution	Precision
AC voltage	0-750V	1V	±(2% of reading+4 digits)
DC voltage	0-1000V	1V	±(2% of reading+1 digits)
AC current	0-1000A	100mA-1A	±(3% of reading+5 digits)
Large Resistance	2000MΩ	10KΩ-1MΩ	±(5% of reading+2 digits)
Resistance	0-20kΩ	0.1Ω-10Ω	±(2% of reading+3 digits)
Buzzer	√
Data retention	√
Low power prompt	√
Max count	1999 Counts
Screen	LCD screen
Material	ABS
Battery	6F22 9V Battery(without shipment)
