Digital Stud Finder Wall Scanner Three-Color Reminder Wall Detector AC Cable Wires Wood Lights Guide Accurate Measuring Tool

Features:

DSF02:

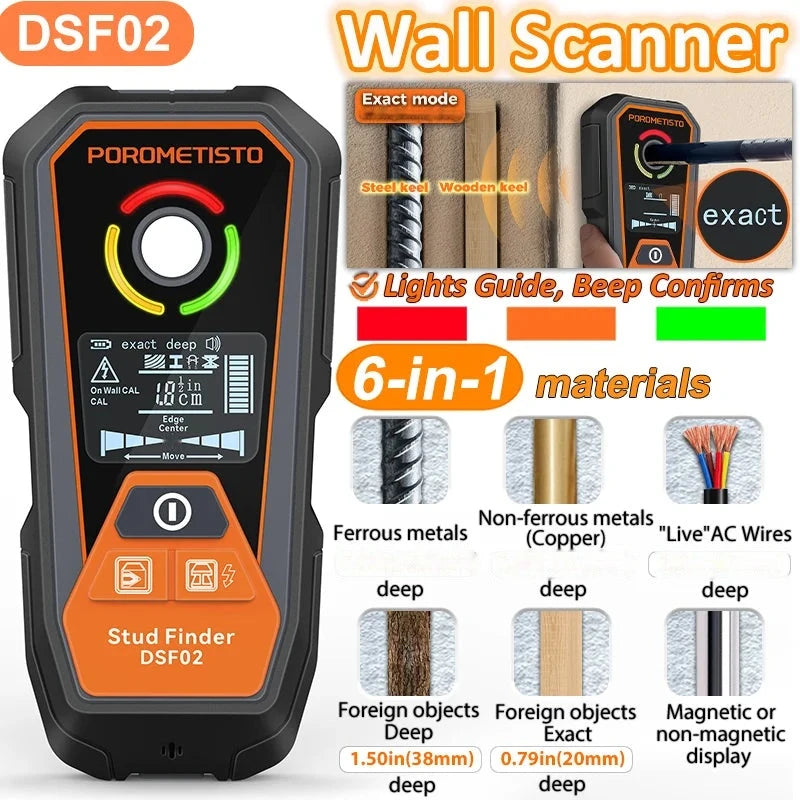

✪ 6-in-1 Multifunctional Detection：Detects wooden studs, magnetic metals, non-magnetic metals, live AC cables, depth, and positioning to meet diverse scenario needs.

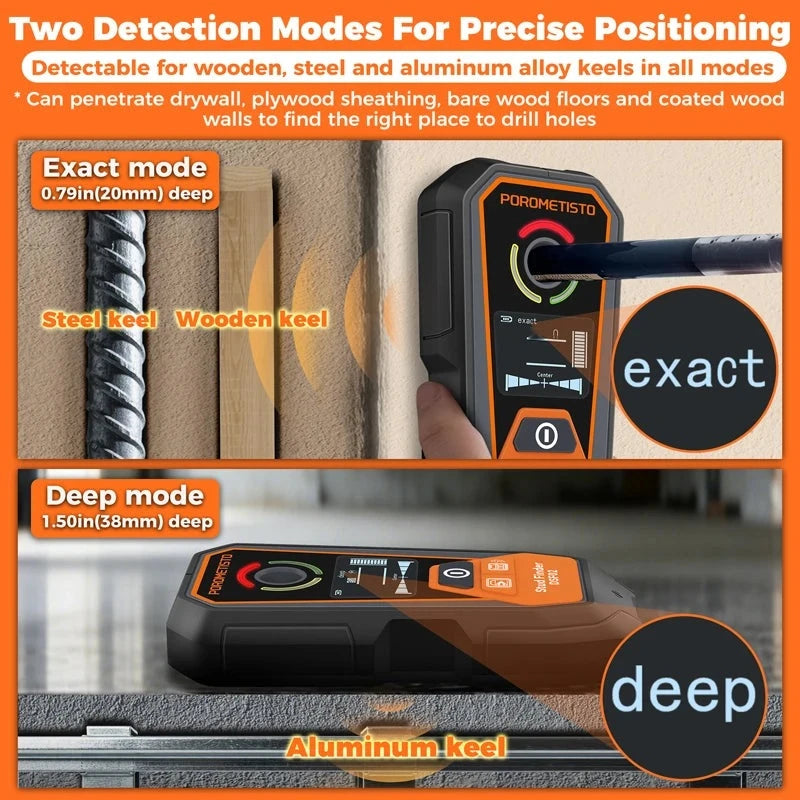

✪ Two Detection Modes for Precise Positioning (Deep mode/Exact mode): Detectable for wooden, steel and aluminum alloy keelis in all modes. Can penetrate drywall, plywood sheathing, bare wood floorsand coated wood walls to find the right place to drill holes.

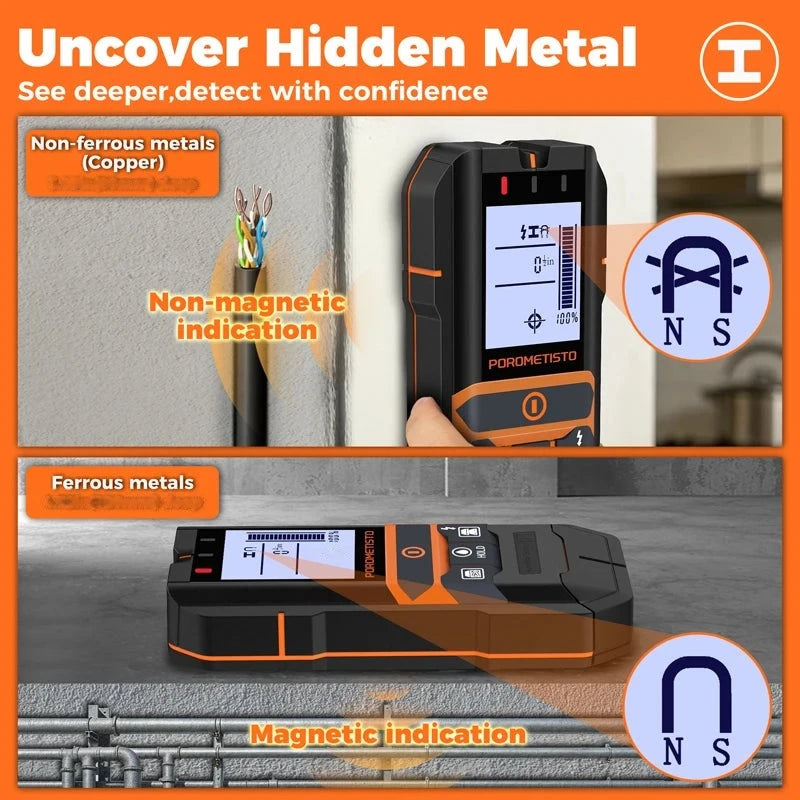

✪ Hidden Metal Identification：Differentiates between ferrous metals (depth 20mm/4.72in) and non-ferrous metals (depth 110mm/4.33in) to accurately locate pipes, steel bars, and other components.

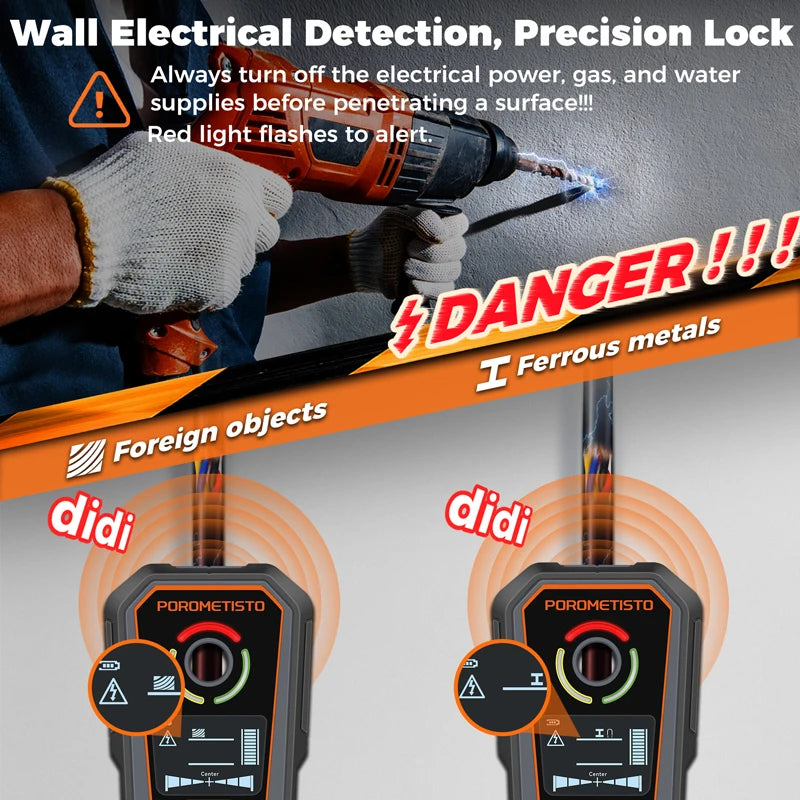

✪ Electrical Cable Safety Alert：When live AC cables are detected, the device triggers a red light flashing alert, reminding you to cut off power before construction to avoid electric shock.
✪ Quick Calibration: Supports automatic and manual calibration for higher accuracy.

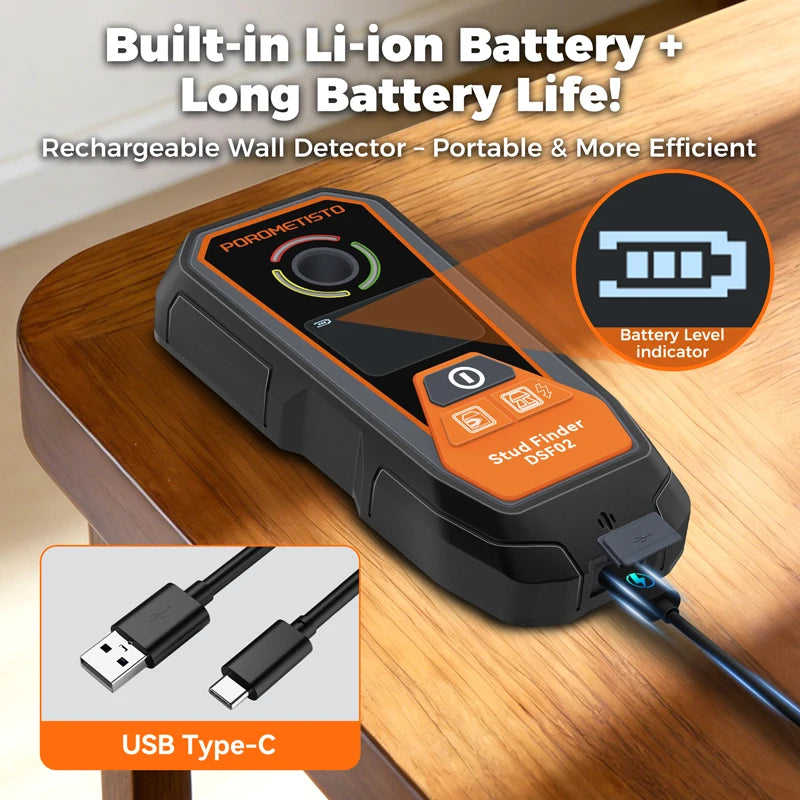

✪ Built-in Li-ion Battery with Long Life：Type-C charging port for convenient recharging, a single charge supports long-term construction without frequent battery replacement.
✪ User-Friendly Design：Anti-slip side, comfortable grip, clear display, and push-button operation for easy use; comes with a portable lanyard for on-the-go carrying.
✪ Position Visualization：Dynamic indicator bars and simulated scales intuitively show the center and edge of detected targets for clearer positioning.
✪ Precision Positioning, with Indicator light and beep buzzer alarm: The indicator light indicates measurement, and three types of status lights are displayed(Ready detect mode-right indicator light, Approaching target-center indicator light, Precision Detect Target Zone-Beep alarm and left indicator light).
✪ Versatile Application：Ideal for home renovation, electrical and plumbing modification, furniture installation, wall decoration, and works on brick walls, drywall, wooden walls, etc.
✪ Practical Reminder Functions：Supports sound on/off, battery level display, and unit switching (inch/cm) to enhance user experience.

DSF06:

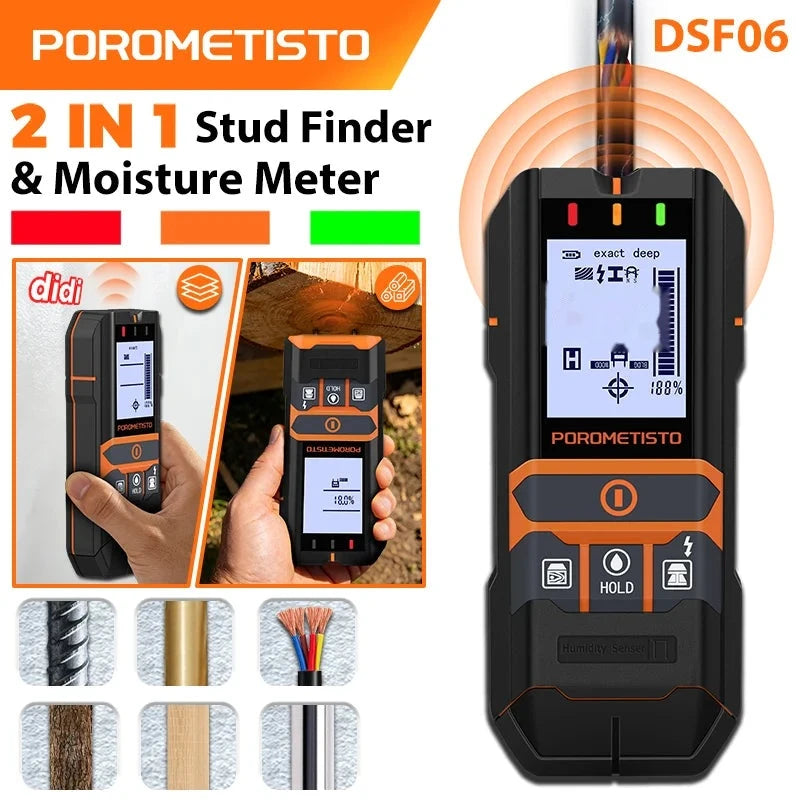

✪ 2-in-1 Integrated Machine (5-in-1 Wall Detector + 2-in-1 Moisture Meter): Combines 5 wall scanning functions (wood stud detection, ferrous & non-ferrous metal detection, live AC cable warning) and dual-material moisture measurement. One machine fulfills both wall scanning and dampness testing demands during construction.
✪ Two Detection Modes for Precise Positioning: Exact Mode (20mm / 0.79in) for precise shallow scanning, Deep Mode (38mm / 1.50in) for deep penetration, compatible with thin drywalls and thick solid walls.
✪ Classified Metal Detection Function: Max detection depth of 120mm (4.72in) for ferrous metals with magnetic indicator; 80mm (3.15in) for non-ferrous metals like copper with non-magnetic marker, easily distinguishing steel rebars, copper pipes and copper wires.
✪ Audio & Visual Warning for Live AC Wires: Emits continuous "didi" buzzer alarm and displays lightning danger icon once live hidden wires are detected inside walls, effectively avoiding electric shock hazards before drilling.
✪ Quick Automatic Calibration After Power-on: No manual adjustment needed, automatic calibration after startup. When calibration completes, screen icons stop flashing and green indicator light stays steady, friendly for new users.
✪ Dual Position Prompt: Light Guide + Buzzer Beep: Three-stage gradient light prompts (Ready Mode, Approaching Target, Precision Zone) with graded buzzer sounds, matched with percentage signal visualization bar graph on LCD screen to quickly find the center of hidden objects.
✪ Dual-material Moisture Measuring System: Wood mode measuring range 5%-50%, building material mode range 1.5%-33%, ±2% measurement accuracy, covering wood planks, drywall, cement wall and most home decoration materials.
✪ Three-color Moisture Reminder Light: Green for dry status, orange for moist status, red for over-wet status. Independent humidity thresholds for wood and construction materials, allowing instant judgment of material dampness to prevent mildew and wall moisture.
✪ Backlit LCD Display with Data Hold: Built-in screen backlight for clear reading in dark construction environments; Data Hold function locks measured values by short pressing the button for convenient data recording.
✪ Customizable User Operation Settings: One-click switch between inch and centimeter units, independent control of buzzer sound on/off to fit different user operation habits.
✪ Wide Application for Multiple Scenarios & Substrates: Applicable to wall drilling, furniture mounting, ceiling installation, old house renovation, wood processing, construction material inspection, water & electricity maintenance and DIY home improvement. Compatible with common indoor substrates including drywall, bare wood floors and painted walls.
✪ Partitioned Physical Function Buttons: Separated buttons for stud scan, metal scan, moisture test, Data Hold, power, unit & sound control with clear operation logic. Lightweight handheld design for easy carrying.

Basic Parameters:

DSF02:

✪ Model: DSF02
✪ Maximum scanning depth:
◇ Ferrous metals：120mm/4.72in
◇ Non-ferrous metals (Copper)：110mm/4.33in
◇ “Live” AC Wires (220V 50Hz/110V 60Hz)：50mm/1.97in (Attention: If the measurement is not accurate using AC wire mode, it may be due to the wires being too thin or the wires inside the wall being covered with PVC pipes, which shields the electromagnetic field. This is not a product issue, and you can switch the device to metal mode to measure the wires and obtain accurate values.)
◇ Foreign objects mode：Exact mode：20mm/0.79in; Deep mode：38mm/1.50in
✪ Magnetic/Non-magnetic indication: Yes
✪ Sound on/off: Yes
✪ Battery level indicator: Yes
✪ Inch/cm unit conversion: Yes
✪ Automatic switch-off：Approx.5 minutes of inactivity
✪ Operating Temperature: -10~50°C/14~122°F
✪ Storage Temperature: -20-70°C/-4~158°F
✪ Metal mode: 0~85%RH
✪ Foreign object mode: 0~60%RH
✪ Usage time approximately: 3 hours
✪ Battery: 3.7V 300mAh
✪ Product size: 146*72*24mm

DSF06:

● Model: DSF06
● Maximum scanning depth – Ferrous metals: 120mm / 4.72in
● Maximum scanning depth – Non-ferrous metals (Copper): 80mm / 3.15in
● Maximum scanning depth – "Live" AC wires (220V 50Hz/110V 60Hz): 50mm / 1.97in
● Exact mode scanning depth: 20mm / 0.79in
● Deep mode scanning depth: 38mm / 1.50in
● Moisture test pins length: 8mm / 0.32in
● Moisture measurement range – Wood: 5~50% (±2% accuracy)
● Moisture measurement range – Building materials: 1.5~33% (±2% accuracy)
● Automatic switch-off: Approx. 5 minutes of inactivity
● Operating temperature: -10~50°C / 14~122°F
● Storage temperature: -20~70°C / -4~158°F
● Operating relative humidity: 35~55%RH
● Power source: 1 x 9V battery (not included)
● Product size: 160*65*27mm
● Applicable Surfaces: Gypsum drywall, plywood sheathing, bare wood floors, coated wood walls.
● Not Applicable For: Concrete, mortar, block, brick, carpet, foil-faced materials, metal surfaces, tile, glass.

Correct usage method:

Place the product on the detection surface, switch to the wooden gear function, wait for the green light to turn on (calibrate to zero), then let the product tightly adhere to the detection surface, slowly move the machine left and right (at a constant speed) for detection Note: During the detection process, the machine cannot detach from the detection surface and can only be moved back and forth left and right (the machine cannot be moved up and down). The movement process should be as slow and uniform as possible, while ensuring that the machine is tightly attached to the detection surface.

Packing Lists:

DSF06:
● 1* Stud Finder
● 1* User Manual
● 1* Cloth bag
● 1* Packing box
DSF02：

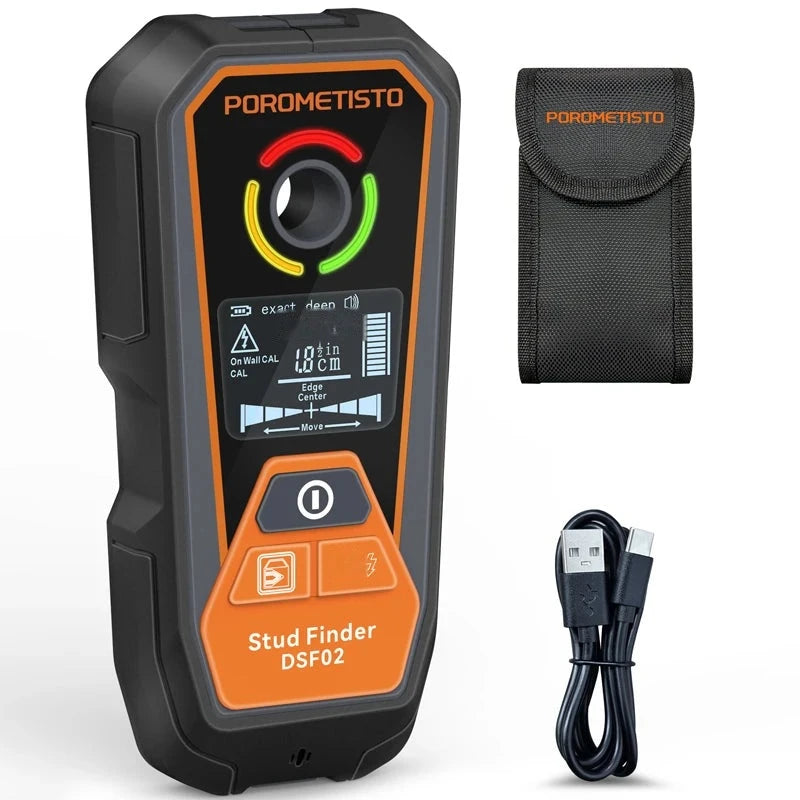

● 1* DSF02 Stud Finder
● 1*User Manual
● 1*Cloth Bag
● 1* Packing Box
● 1*USB Type-C Charging Cable
