Electric Bike KT Controller 36V 48V 15/17/22/25/30A Waterproof Brushless 250W 350W 500W 1000W with Light Function For Ebike Kit

Attention

1.KT controller only compatible with KT display.Same communication protocol.We have given pictures to teach you how to distinguish.Please check before place the order.

2.The cable length is manually measured, there may be some difference, please understand.

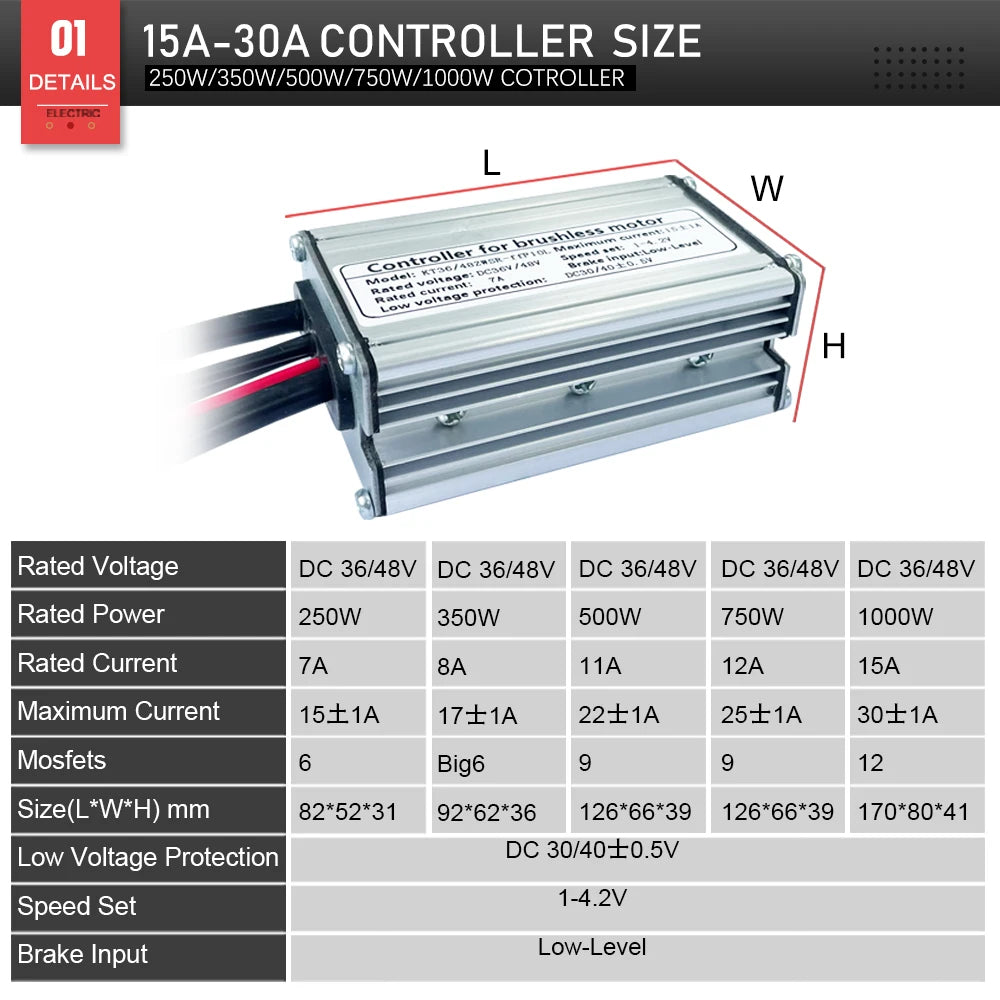

Parameter

KT-15A WP Controller

◆Mosfets :6 mosfets

◆Size :81.5 * 51.7 * 31mm(3.2*2.04* 1.2in)

◆Maximum current :15±1A

◆Weight :202g

◆Rated current :7A

◆Rated power：250W

◆Rated voltage :DC36V/48V

◆Brake input :Low-Level

◆Speed set :1-4.2V

KT-17A WP Controller

◆Mosfets :Big 6 better mosfets

◆Size :92.5 * 61.3 * 35mm(3.6*2.4*1.4in)

◆Maximum current :17±1A

◆Weight :250g

◆Rated current :8A

◆Rated power：350W

◆Rated voltage :DC36V/48V

◆Brake input :Low-Level

◆Speed set :1-4.2V

 KT-22A WP Controller

◆Mosfets :9 Mosfets

◆Size :125 * 66 * 38mm[4. 9*2.6*1.5in)

◆Maximum current :22±1A

◆Weight :356g

◆Rated current :11A

◆Rated power：500W

◆Rated voltage :DC36V/48V

◆Brake input :Low-Level

◆Speed set :1-4.2V

 KT-25A WP Controller

◆Mosfets : Big 9 Mosfets

◆Size :125 * 66 * 38mm[4. 9*2.6*1.5in)

◆Maximum current :25±1A

◆Weight :356g

◆Rated current :12A

◆Rated power：750W

◆Rated voltage :DC36V/48V

◆Brake input :Low-Level

◆Speed set :1-4.2V

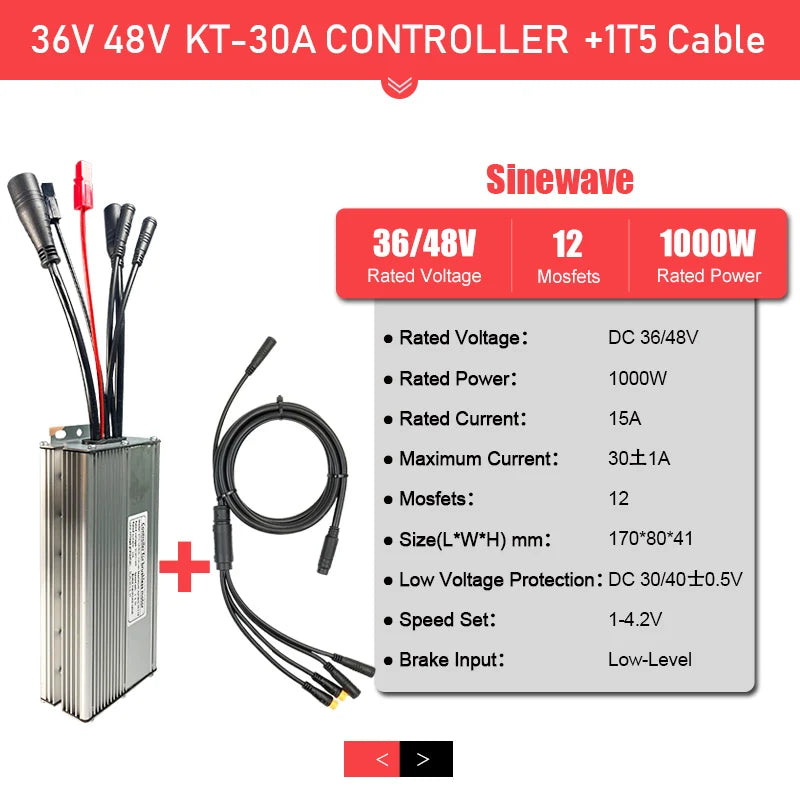

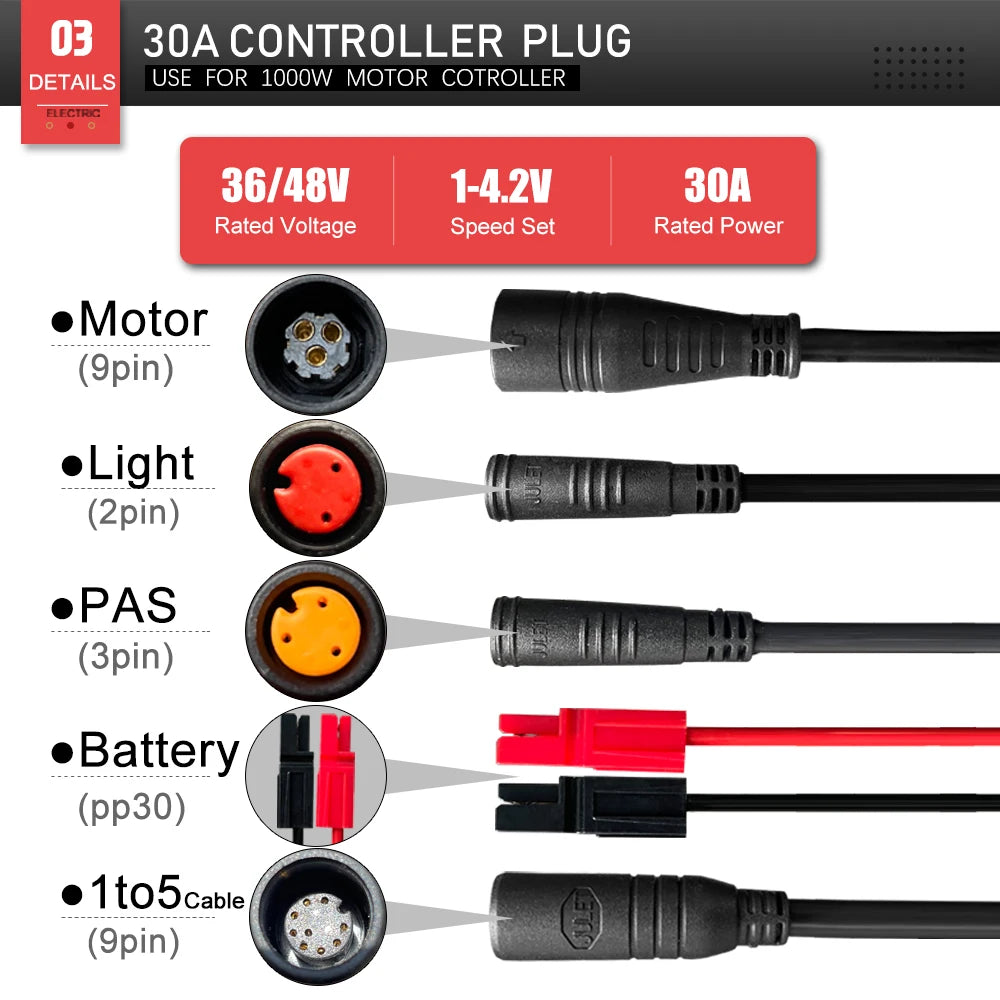

 KT-30A WP Controller

◆Mosfets :12 Mosfets

◆Size :170* 82 * 41. 2mm[6.7*3.2*1.6in)

◆Maximum current :30±2A

◆Weight :503g

◆Rated current :15A

◆Rated power：1000W

◆Rated voltage :DC36V/48V

◆Brake input :Low-Level

◆Speed set :1-4.2V
