SPECIFICATIONS

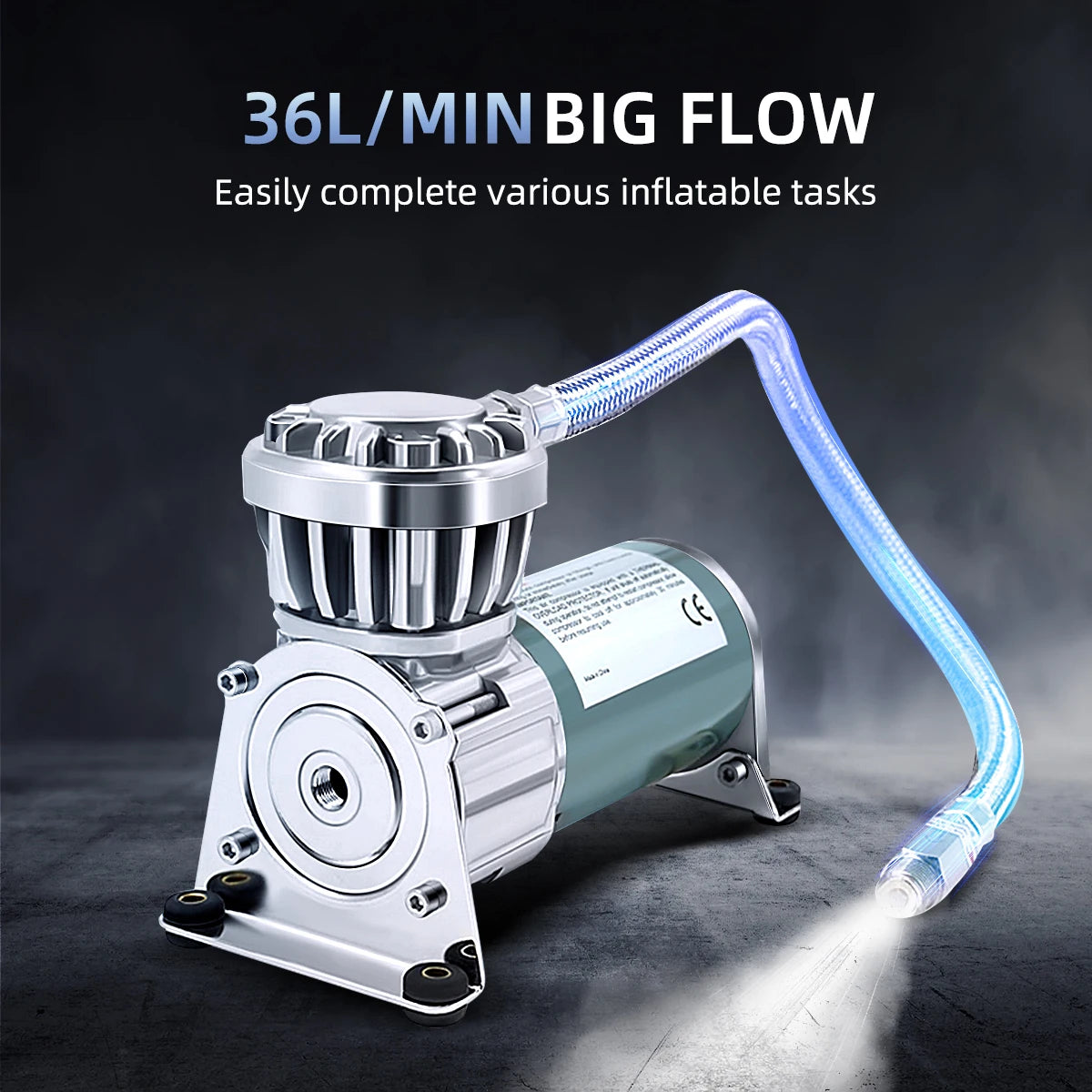

Air Flow Capacity: 1.37/1.55 Cubic Feet Per Minute

Brand Name: FLARE CAMP

Choice: yes

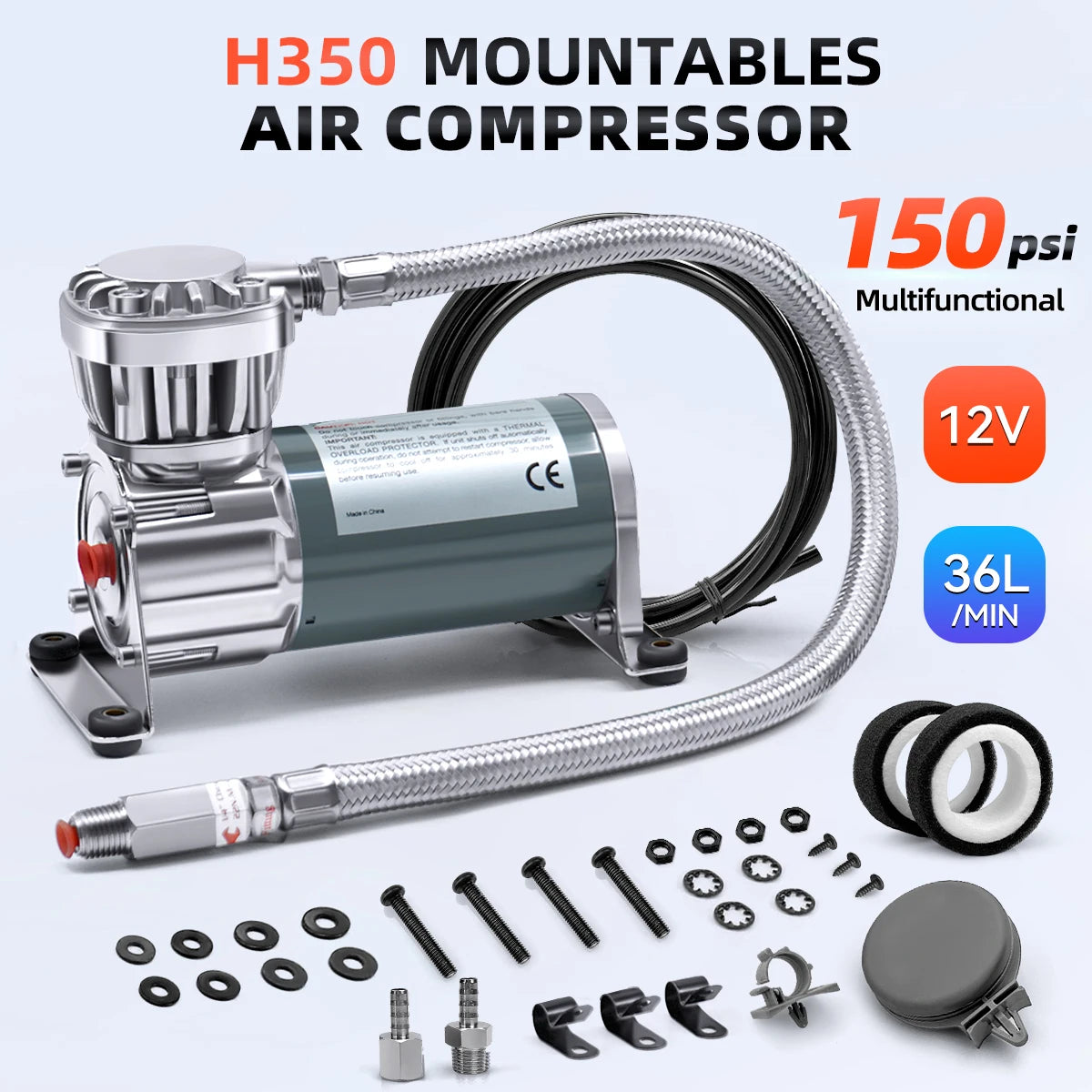

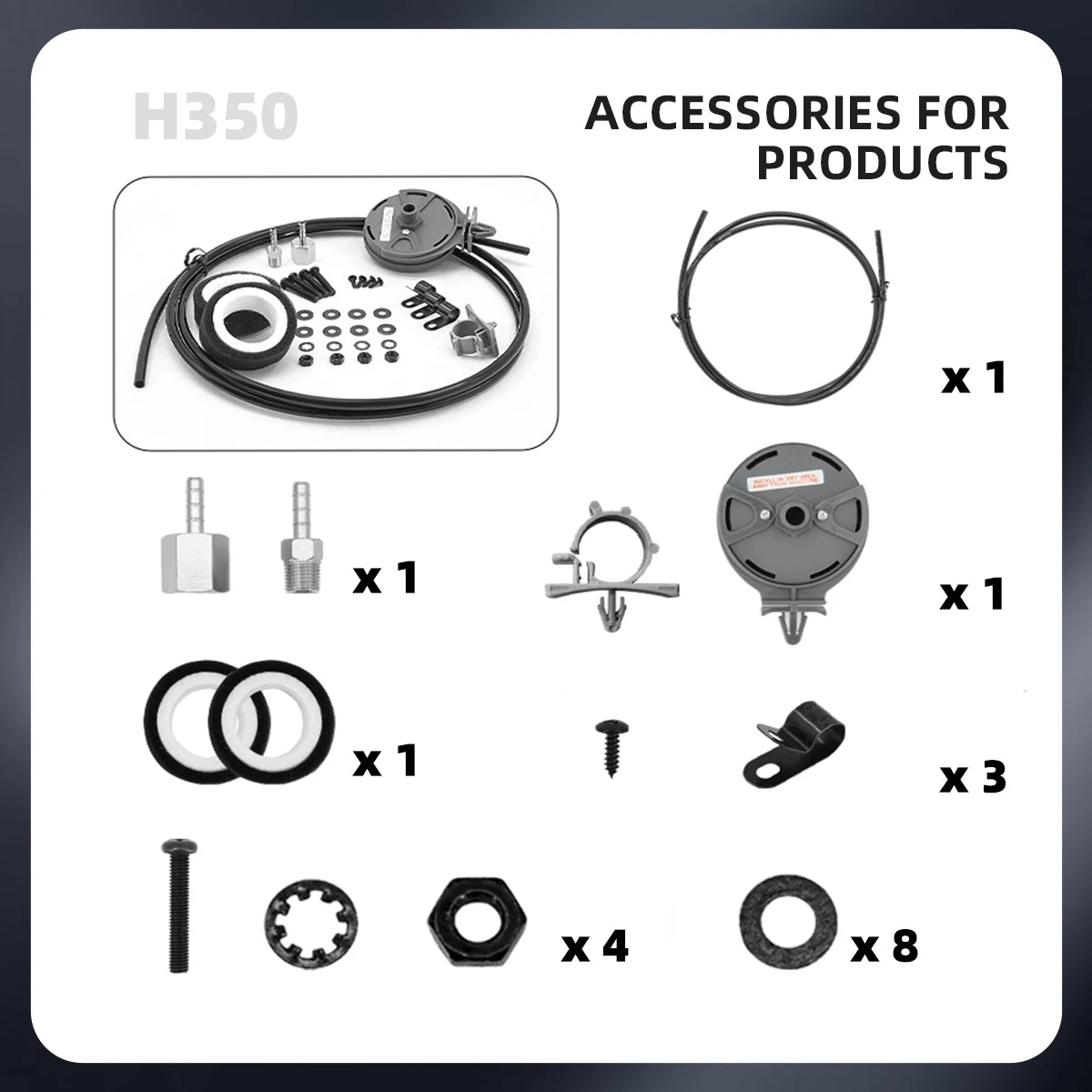

Components Included: Mounting Hardware, Installation Instructions

Duty Cycle: 20% @ 100 PSI

High-concerned chemical: none

Ingress Protection Rating: IP67

Item Height: 5.0

Item Length: 6.9

Item Type: PUMPS,PUMPS

Item Weight: 1.86

Item Width: 3.3

Material: Metal

Max. Air Tank Size: 1.0 Gallon

Max. Amp Draw: 8/15 Amps

Max. Working Pressure: 150 PSI / 10.34 Bar

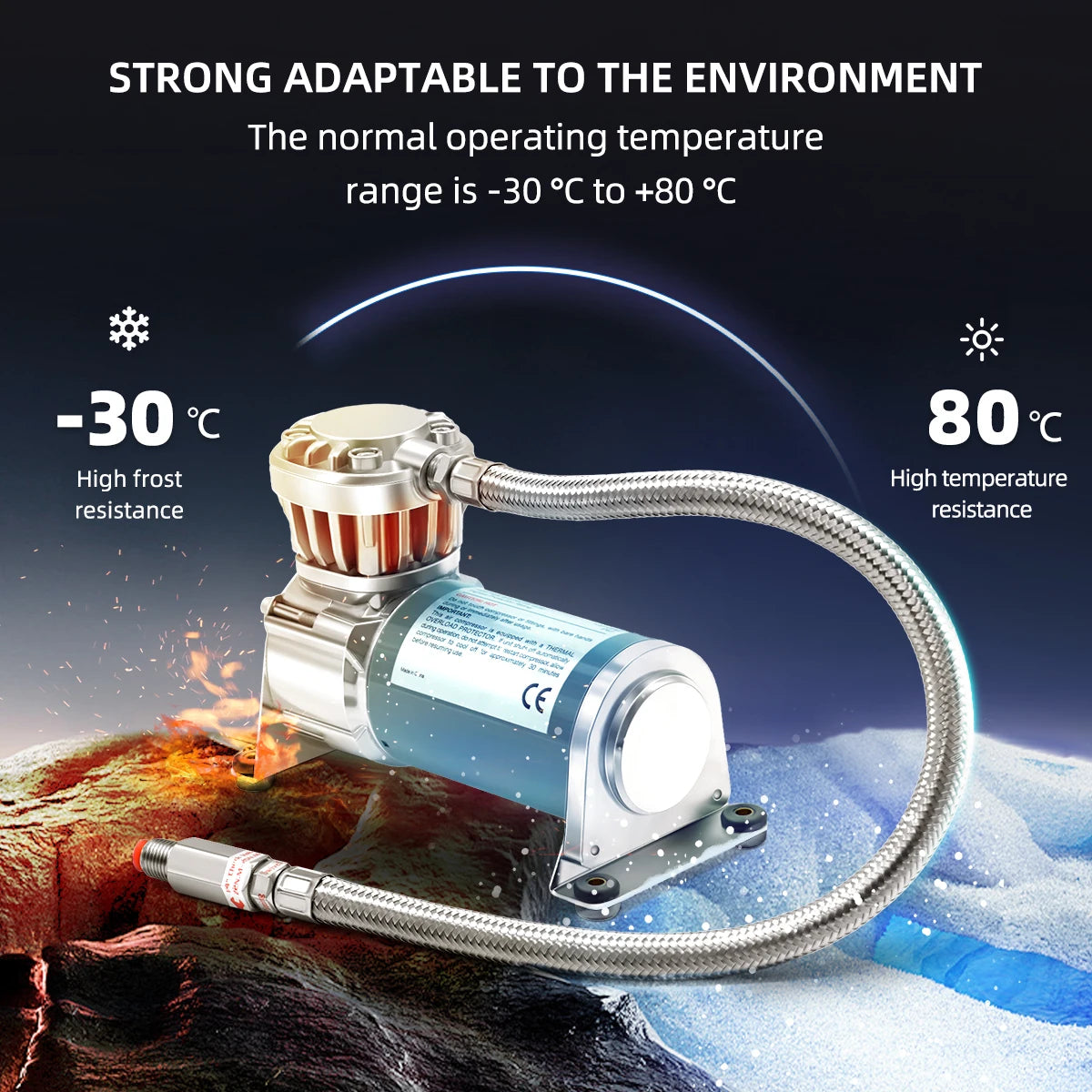

Max./Min. Ambient Temp: +70℃ / -30℃

Model Name: H350

Motor Type: Permanent Magnetic Motor

Origin: Mainland China

Special Features: Check Valve, Vibration Isolators

Voltage: 12/24 Volts

semi_Choice: yes

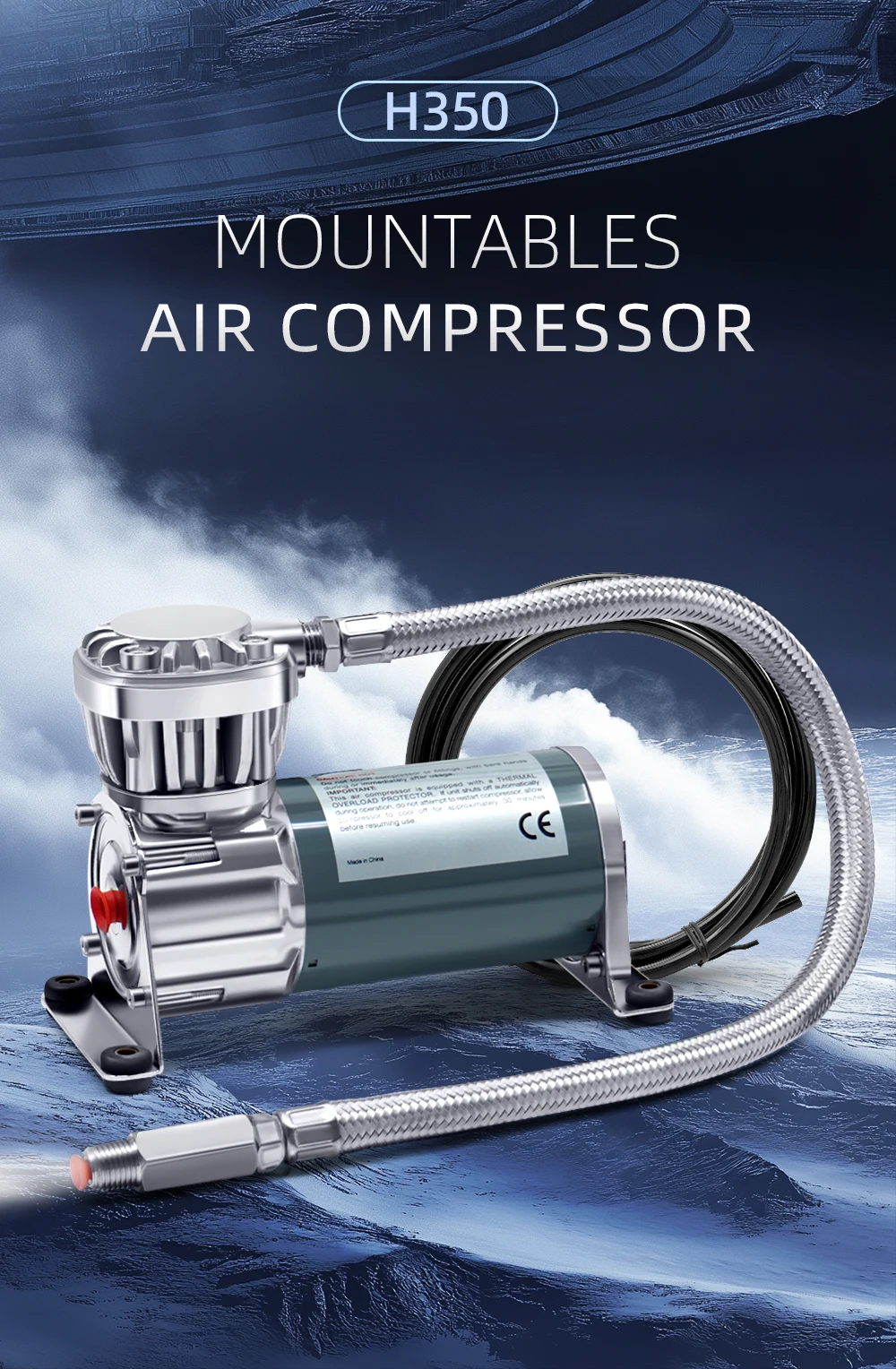

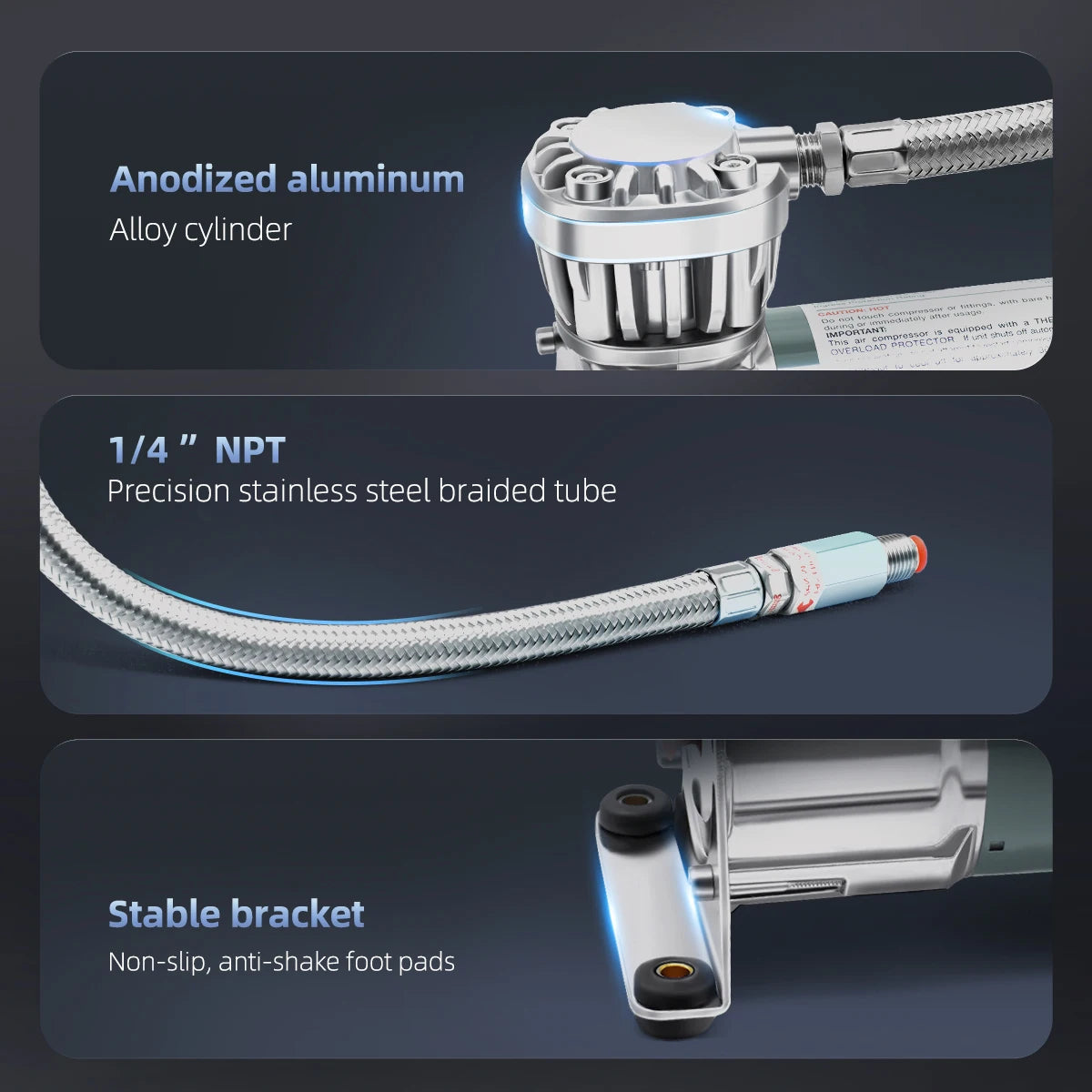

H350 produces 1.37 CFM (12V) & 1.55 CFM (24V) with a 20% duty cycle and has a max operating pressure of 150 PSI, making it an ideal choice for those looking for a compact solution for light-duty applications. RoHS and REACH compliant and CE certified, the H350 is equipped with a stainless steel braided leader hose and check valve assembly that eliminates the possibility of high amperage starts. It's designed to fill no larger than 1.0 gallon tanks and requires the use of a pressure switch for installation.
