SPECIFICATIONS

AC Current: 0mA-10A

AC Voltage: 600v

Battery Included: no

Battery model: 1.5V AAA*2(without shipment)

Brand Name: ANENG

Certification: CE

Choice: yes

DC Current: 0mA-10A

DC Voltage: 0V-600V

DIY Supplies: Electrical

Dimensions: /

Diode: Yes

Display Type: Digital Display

High-concerned chemical: none

Is Smart Device: no

Live zero-fire line recognition: Yes

Maximum count: 6000 Counts

Measuring Capacitance Range: 0nF-60mF

Measuring Inductance Range: /

Measuring Resistance Range: 0-60MOhm

Model Number: M128

NCV voltage sensing: Yes

Operating Mode: Auto Range

Operating Temperature: 0 - 40 ℃

Origin: Mainland China

Semi-finishedproduct: No

on-off beep: Yes

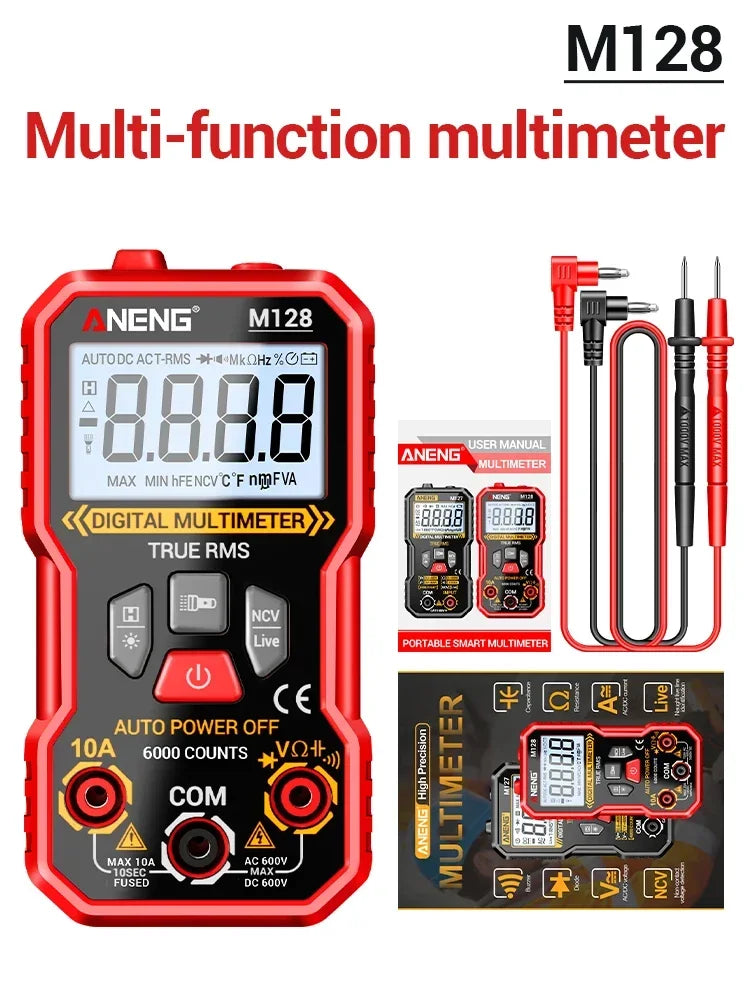

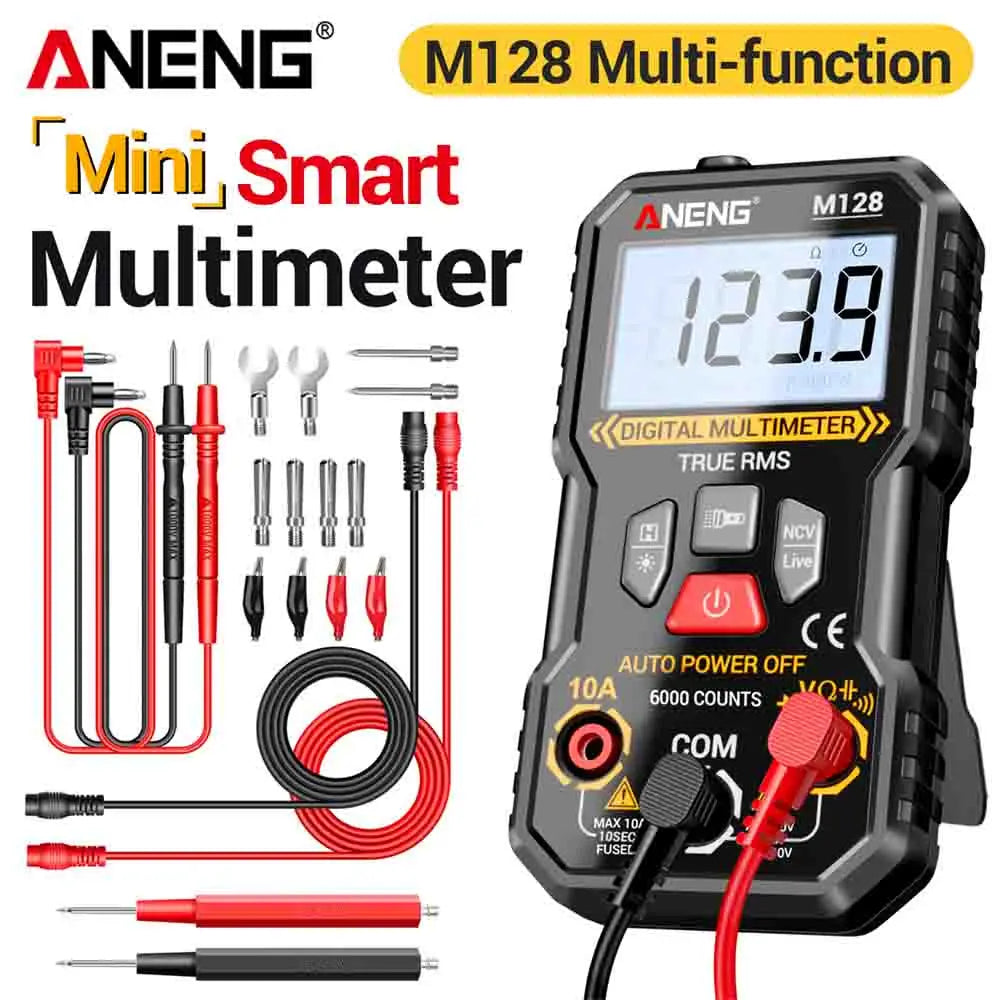

ANENG M128 Multifunction Multimeter AC/DC Voltage Current Resistance Capacitor NCV Voltage Induction 6000 Count Megometro Tester

A.Overview:

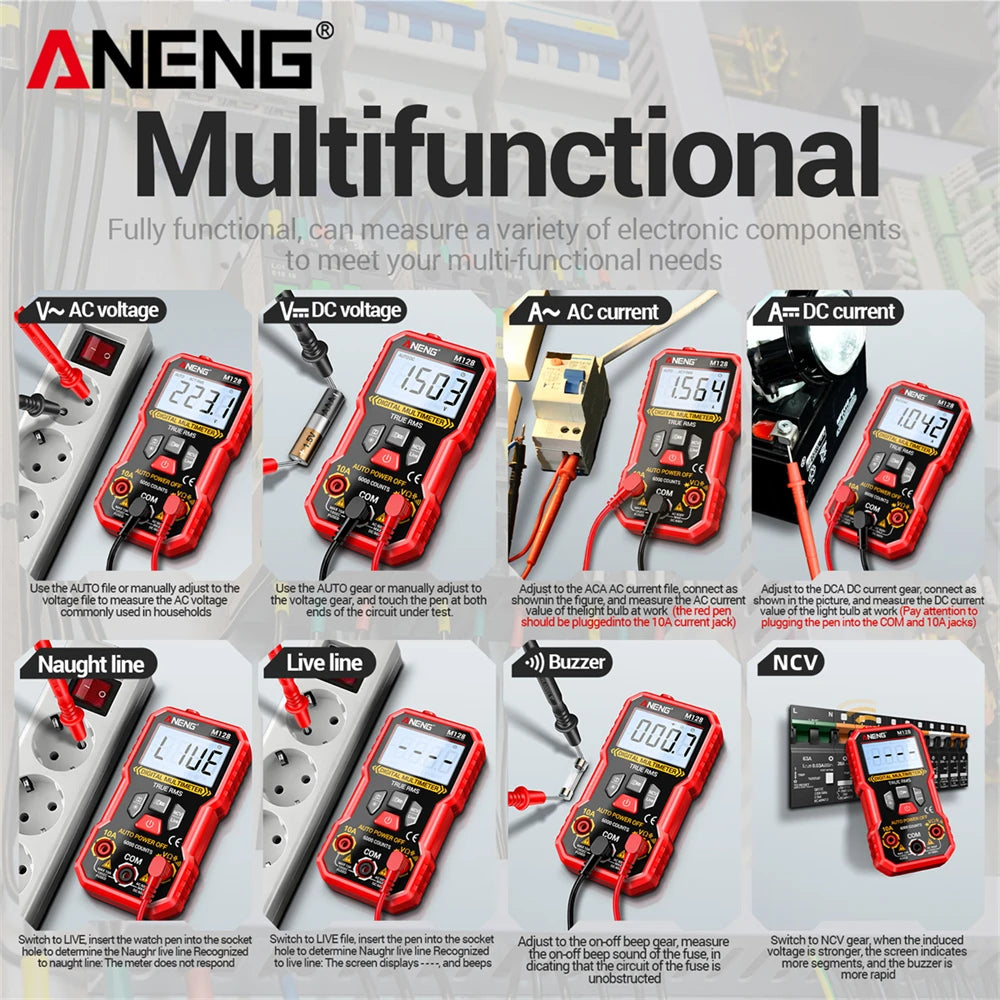

Automatic selection of measuring function and range.
Full range oveload protection.
Max. display value:M128 5999 digits
Automatic shut down time:15 minutes
Sampling time: about 3 times/second
power supply:2*1.5V AAA Battery (Ship without battery)
M128:The max voltage between the measuring end and the ground is 600V DC or 600V AC.

B.Specification:

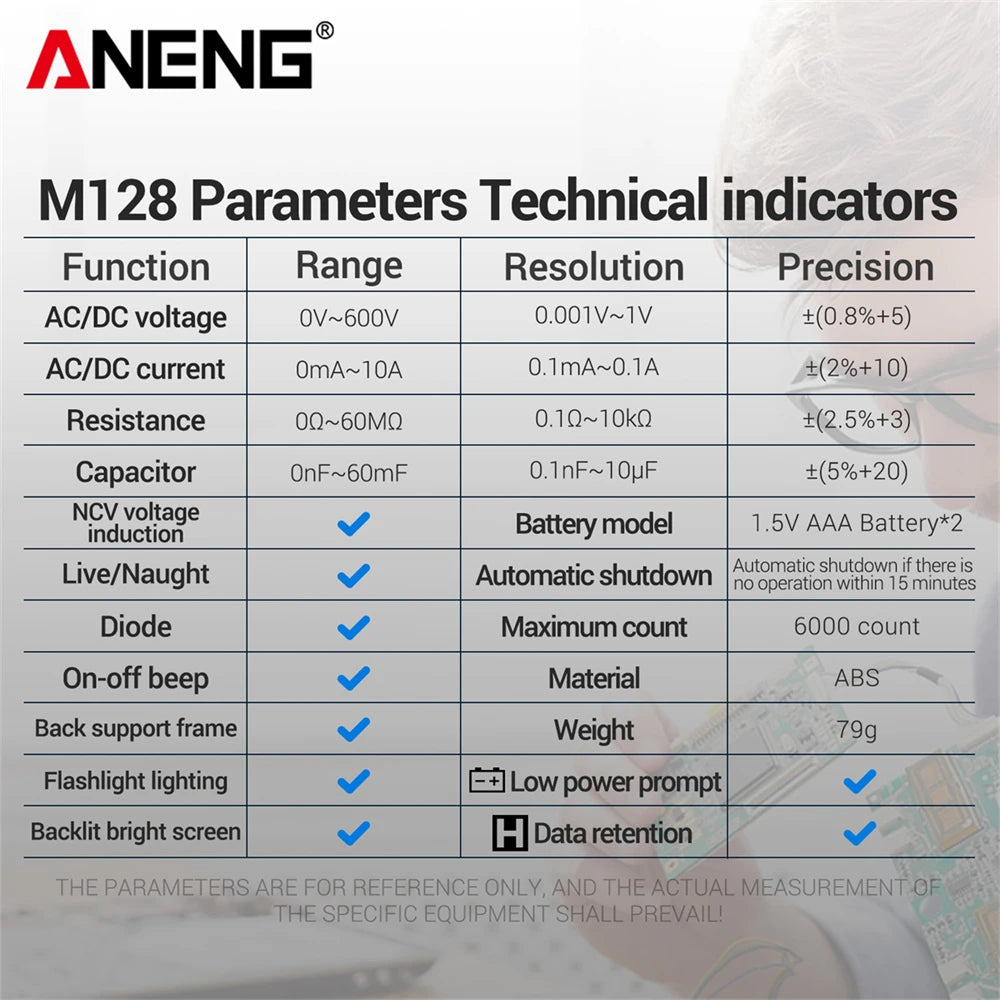

M128 Parameter Information
Function	Range	Resolution	Precision
AC/DC voltage	0V~600V	0.001V~1V	±(0.8%+5)

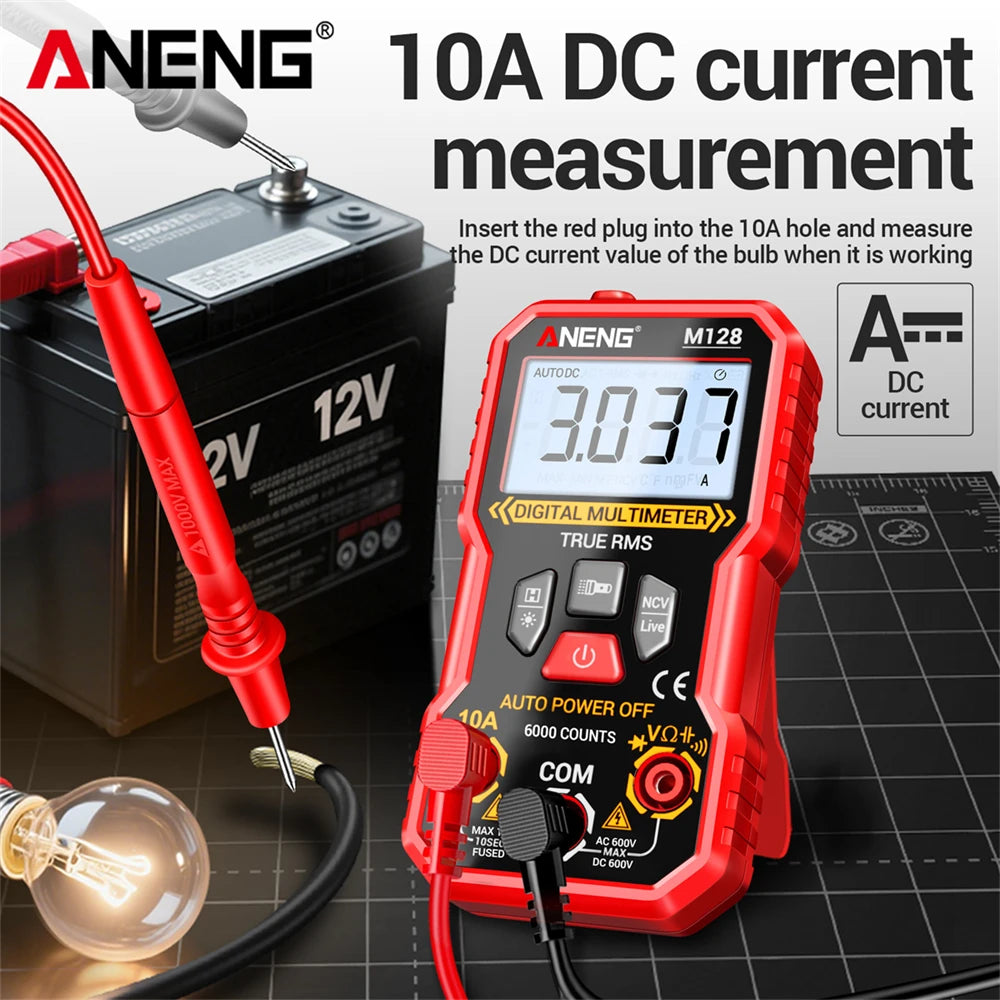

AC/DC current	0mA~10A	0.1mA~0.1A	±(2.0%+10)
Resistance	0Ω~60MΩ	0.1Ω~10kΩ	±(2.5%+3)

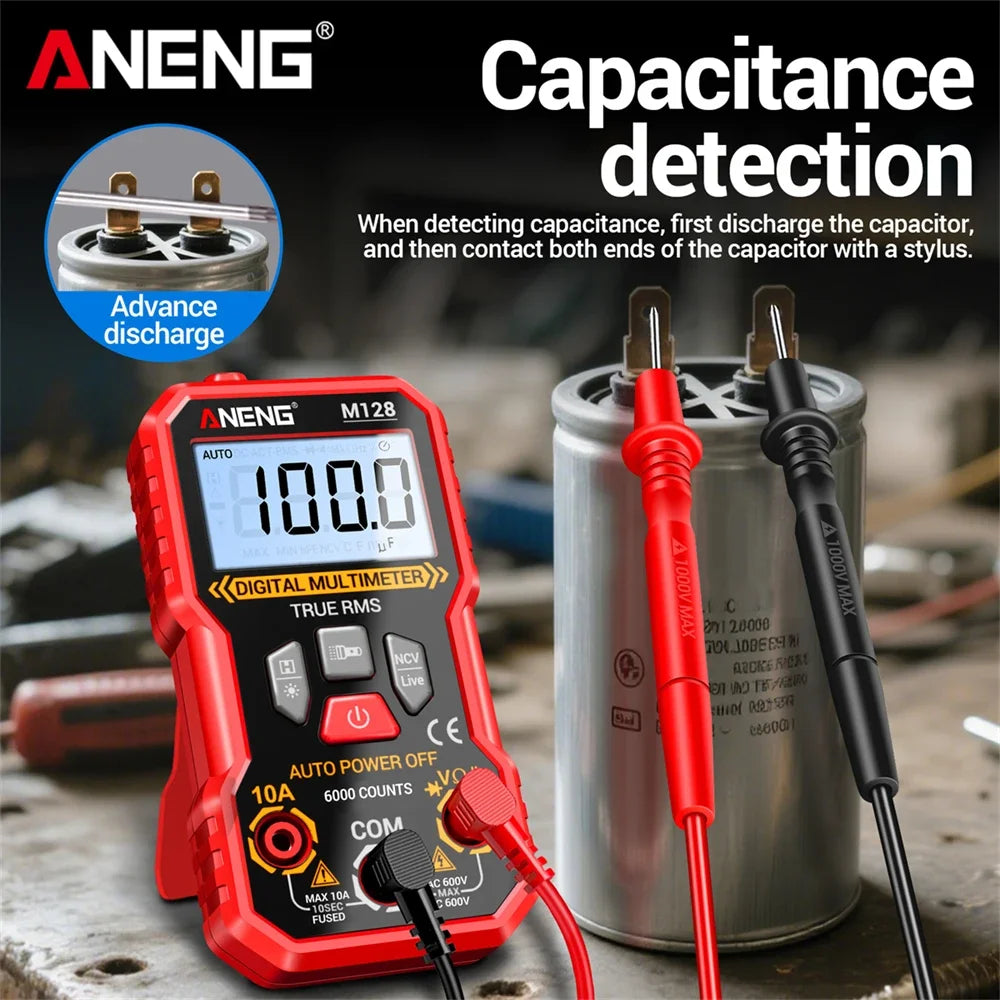

Capacitance	0nF~60mF	0.1nF~10µF	±(5.0%+20)
NCV voltage sensing	√	Battery	1.5V AAA *2 (without shipment)
Live zero line recognition	√	Automatic power off	After 15 minutes without operation
Diode	√	Max Count	6000 Counts
On-off beep	√	Material	ABS
Back support frame	√	Weight	79g

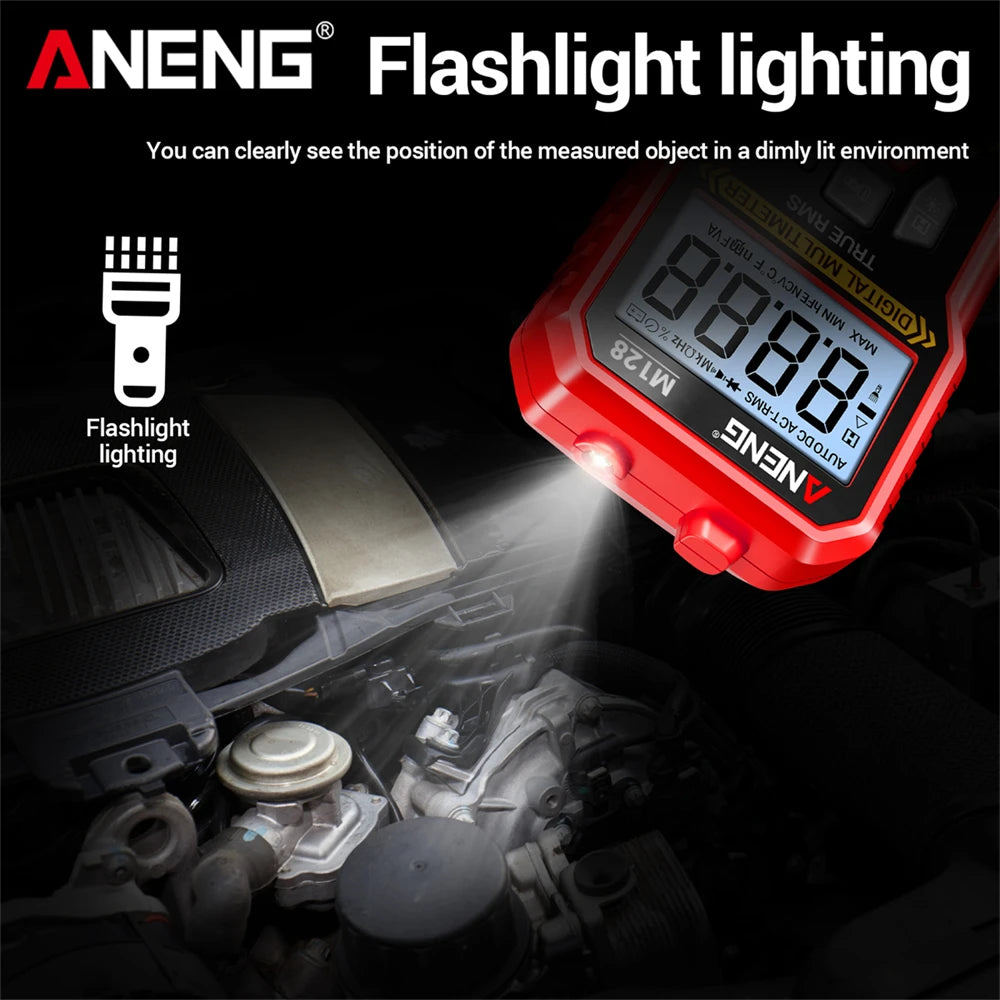

Flashlight lighting	√	Low battery indication	√
Backlit bright screen	√	Data retention	√

C.Usage Precautions:
1. Do not touch the probes directly with your hands to avoid electric shock and ensure personal safety during testing.
2. Before use, inspect the test probes to ensure there is no damaged insulation or exposed metal.
3. Do not use the current and voltage ranges interchangeably to prevent damage to the instrument.
4. It is best to remove the batteries when not in use for a long time to prevent battery corrosion of other internal components of the instrument.
5. If you do not know the magnitude of the voltage or current to be measured, start with the highest range and then select the appropriate range based on the measured value.

D.Package Include:

According to your choice
