SPECIFICATIONS

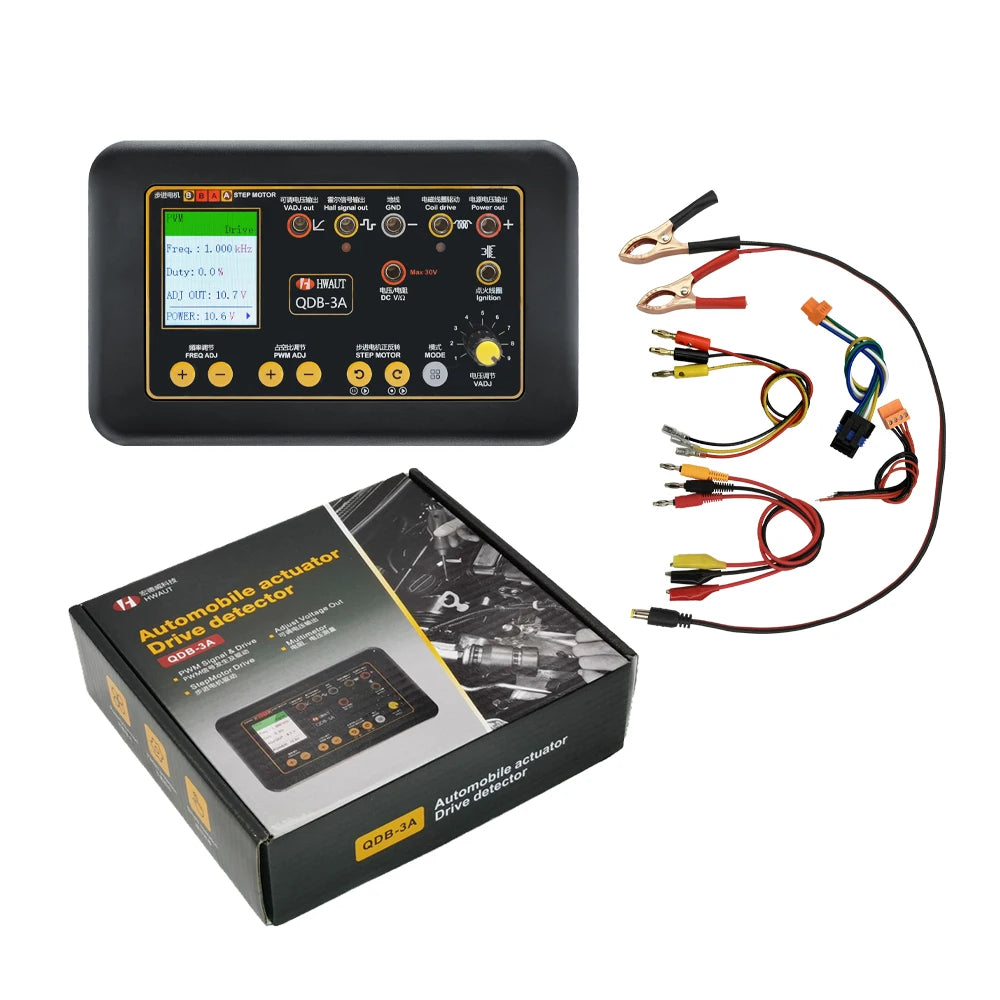

Automobile Ignition Coil Test Injector Solenoid Valve Idling Stepper: Motor Instrument Tester

Brand Name: HWAUT

Certification: CE

Electronic: No

External Testing Certification: ce

Fault Detect Drive Simulator: Automobile Ignition Coil Tester

Hardware Version: 1.2

High-concerned chemical: none

Is Batteries Included: no

Item Height: 3

Item Length: 15.7

Item Type: Ignition Testers

Item Weight: 385

Item Width: 9.8

Material: ABS+ iron

Model Name: QDB-3A

Origin: Mainland China

Power (W): 100W

Probador de inyectores QDB-2A: Probador de actuadores QDB-2A

Software Version: 1.05

Use: Not Telecommunication

Voltage: 12V/24V

Wireless Support: No

actuator tester: check injectors

automotive sensor tester: qdb 2a tester

qdb 2a manual: qdb 2 tester

qdb 2a qdb 3a: qdb 2a simulator

sensor signal simulator MNB- 2: coil tester

testeur actionneur automobile: automotive actuator tester



**Product Overview:**

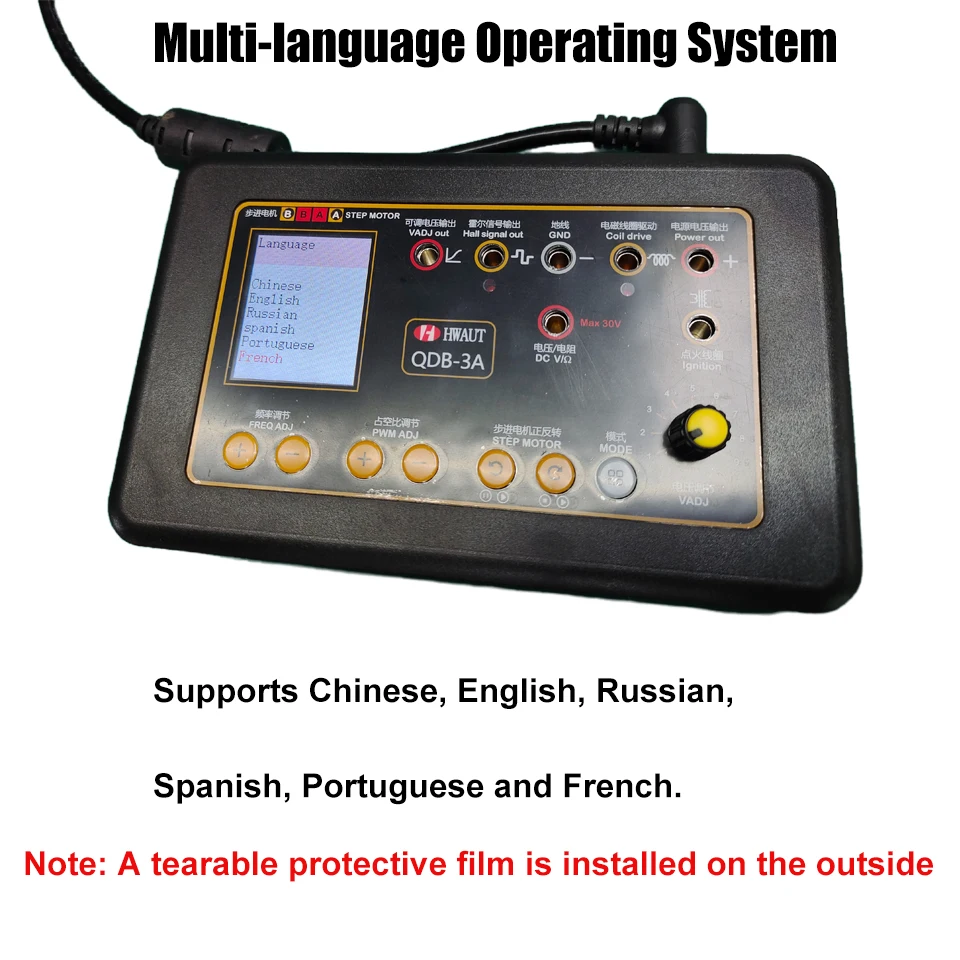

The operating system supports multiple languages: English,Russian, Portuguese, Spanish, French and Chinese.



We have instruction manuals in Chinese, English, Russian, German, French, Portuguese, Spanish, Japanese, Korean, and Arabic. Please click the link to download. http://sz.hongwave.cn:5678/Downloads/QDB-3A/

You are welcome to view it. If you have any questions, please contact the store customer service. Thank you!



Download Multi-language instruction manual from the link below:

http://sz.hongwave.cn:5678/Downloads/QDB-3A/

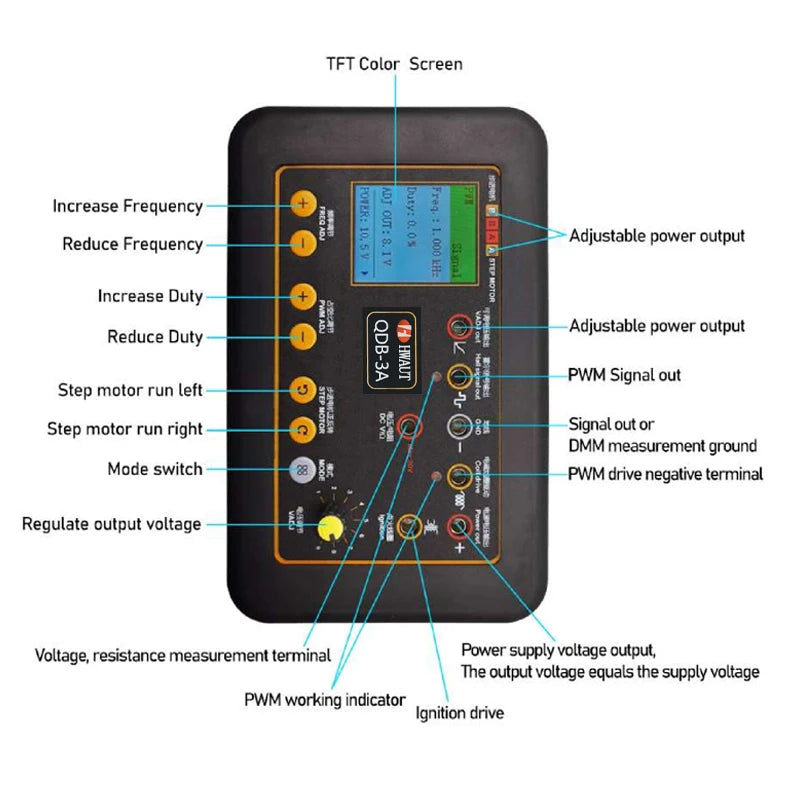

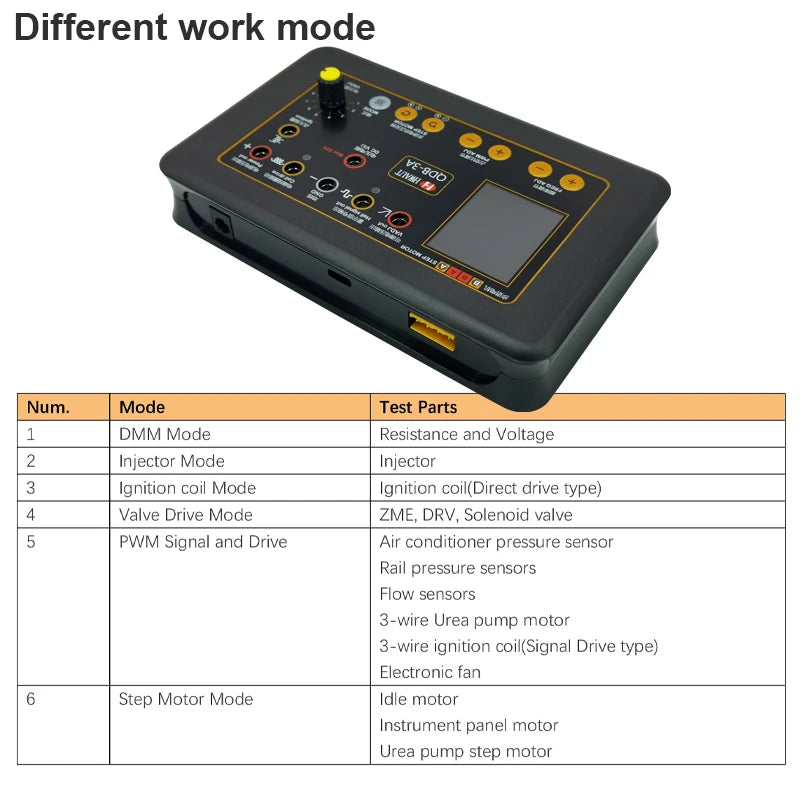

**Core Features:**

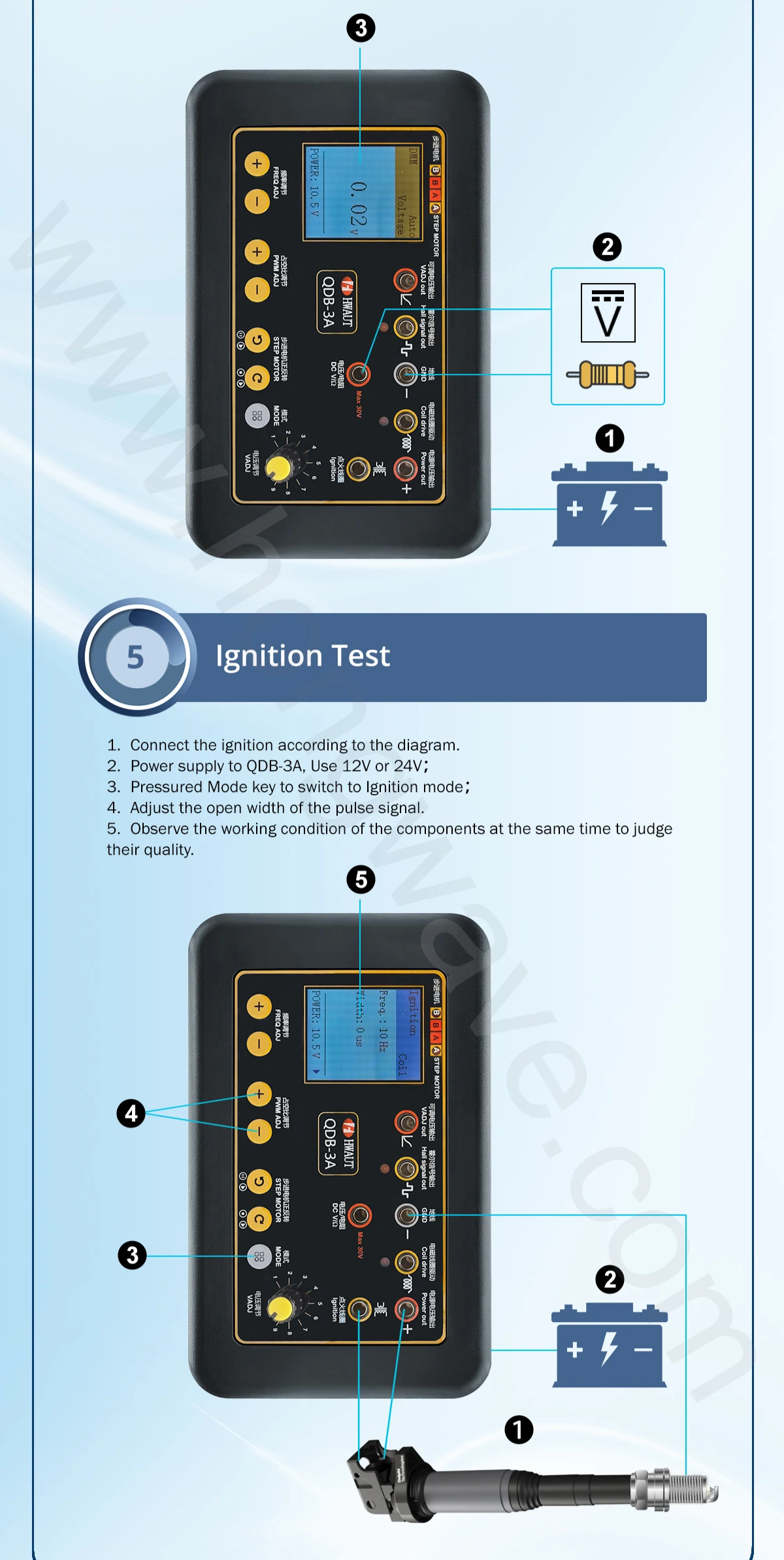

1. **Ignition Coil Testing:** Capable of testing individual ignition coils, distinguishing between coil and module types.



2. **Fuel Injector Drive Test:** Supports testing for both gasoline vehicles with 12V fuel injectors and diesel vehicles with 12V and 24V fuel injectors.



3. **Solenoid Valve and Fuel Metering Valve Testing:** Drives and tests solenoid valves and fuel metering valves with adjustable duty ratios.



4. **Motor Drive and Testing:** Operates and tests a variety of motors using different duty ratios, including urea pump motors.

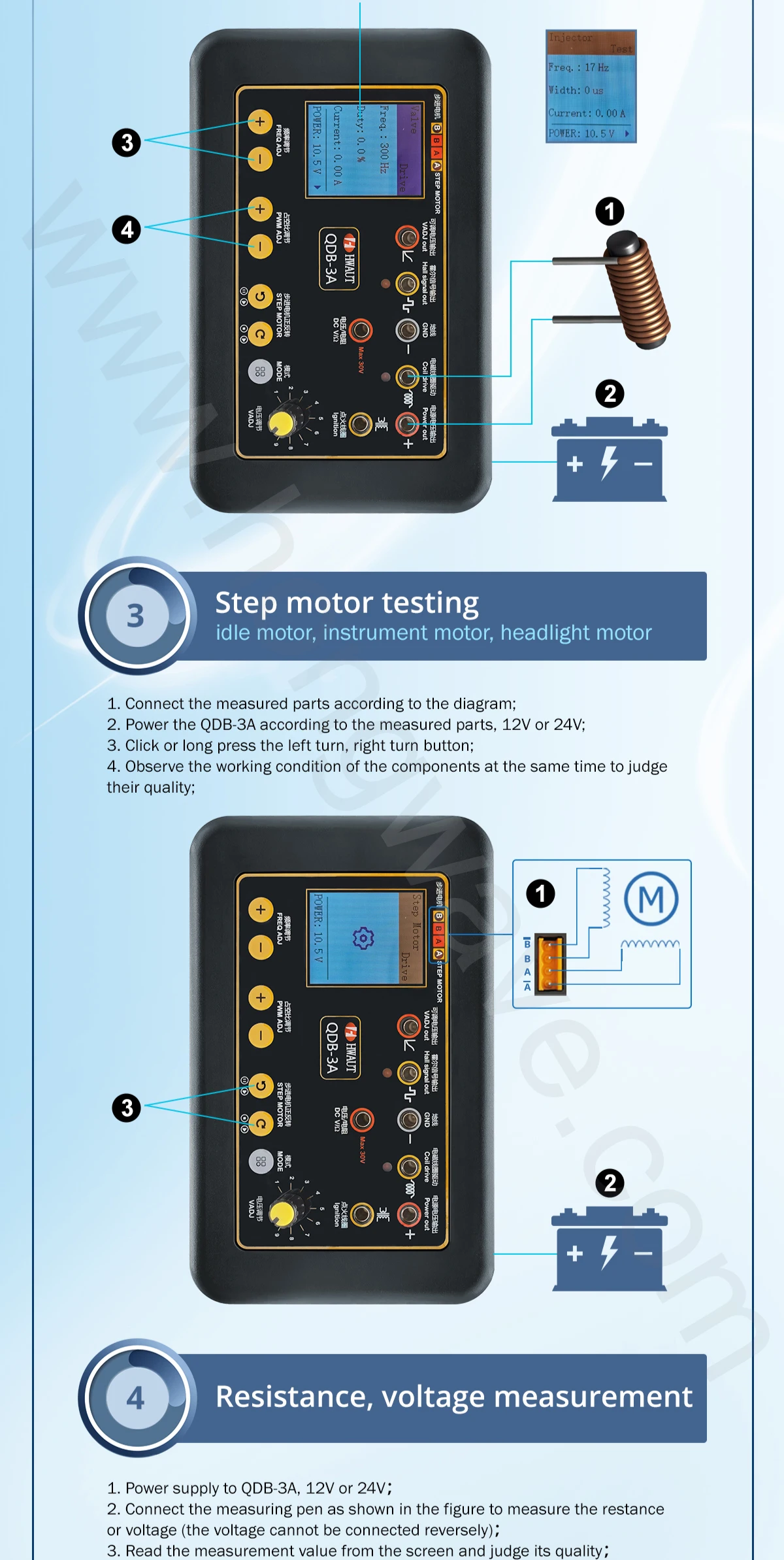

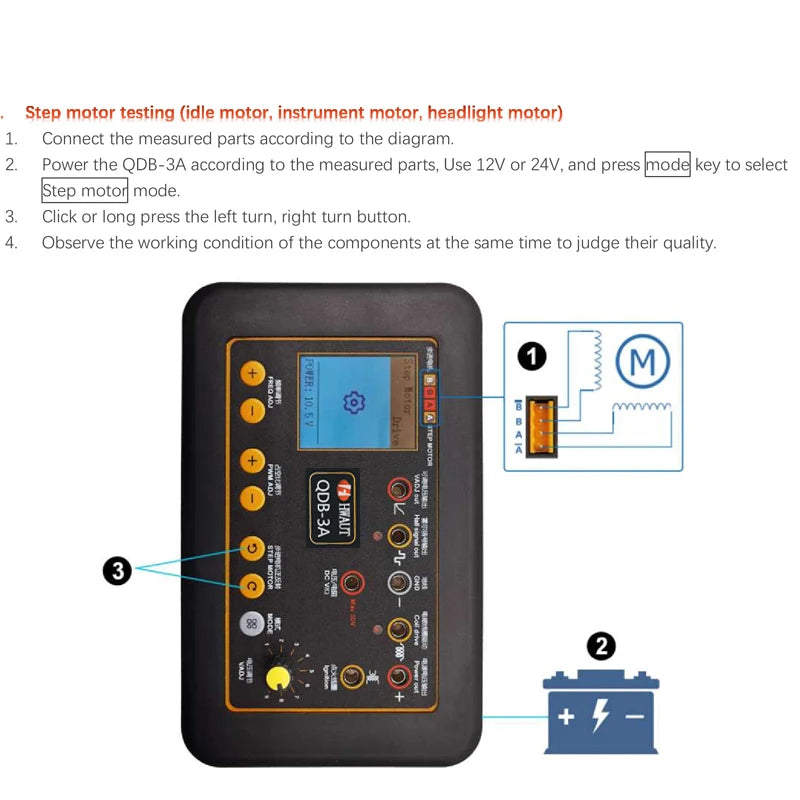

5. **Stepping Motor Drive and Testing:** Drives and tests idle stepping motors, instrument stepping motors, and headlight follow-up steering stepping motors.



6. **Hall Signal Simulation:** Features an adjustable output frequency, amplitude, and duty ratio for simulating a range of duty cycle sensors, such as air conditioning pressure sensors (duty cycle type) and air flowmeters (duty cycle type).

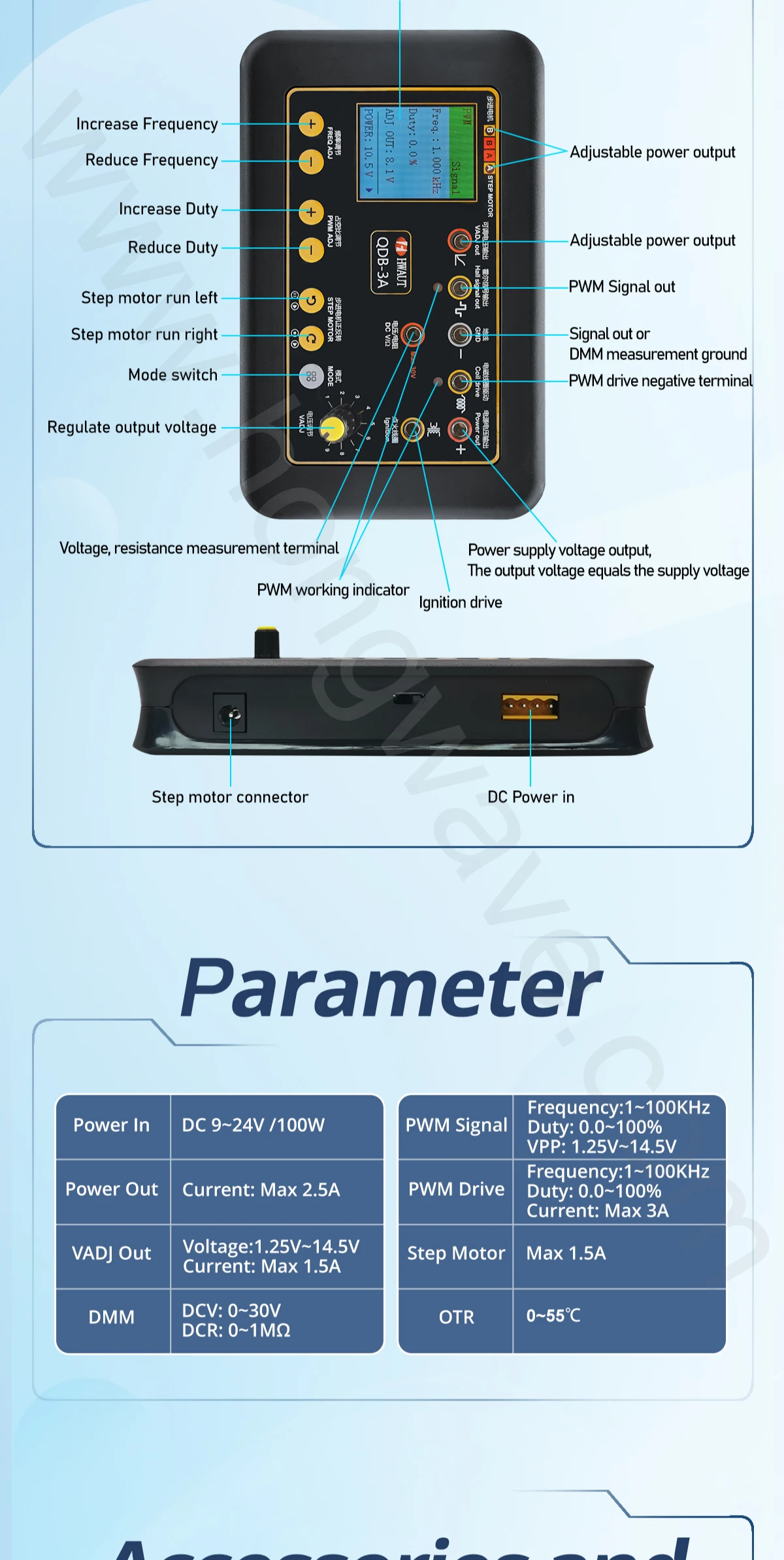

7. **Power Supply Specifications:** Accepts a voltage range of 12V to 24V, with built-in reverse connection protection and overcurrent protection.



8. **Electromagnetic Coil Drive Current:** Offers a current range from 0 to 3.5A for driving electromagnetic coils.



9. **Output Frequency Range:** Extends from 1Hz to 100kHz for versatile testing capabilities.



10. **Duty Cycle Adjustment:** Allows for precise control from 1% to 100%.



11. **Adjustable Voltage Output:** Provides a variable voltage range of 1.25V to 11.5V.





For further inquiries or to request the user manual, please do not hesitate to contact us.
