Standard RP390-ST/23115 Mini RS-390 Motor DC 6V 12V 18V 9300RPM Dual 2.3mm Shaft Micro 28mm Electric 12V 390 Motor
$32.82
🚚 Free US shipping · Tracked delivery · Arrives in 10–15 business days
🎁 Buy 2, save 10% · Buy 3, save 15% — applied automatically at checkout
Specifications
Brand: Standard Motor
Commutation: Brush
Construction: Permanent Magnet
Does it include a Battery?: No
Does it include wireless functionality?: No
Efficiency: IE 1
Model Number: RP390-ST/23115
Motor diameter: 27.7mm
Output Power: ＜18.65
Output shaft diameter: 2.3mm
Protect Feature: sturdy
Speed range: 3000RPM-9300RPM
Suitable voltage: DC 6V-18V
Type: Micro Motor
Use: Home Appliance

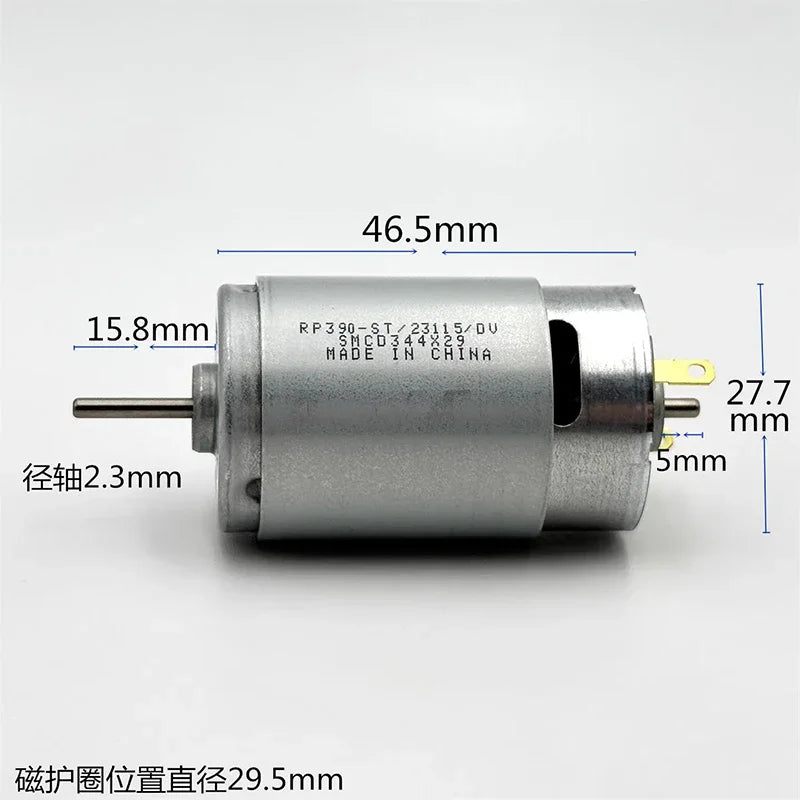

Specification:
1.Brand: Standard Motor
2.Model: RP390-ST/23115
3.Motor diameter: 27.7mm (with cover 29.5mm)
4.Motor length: 46.5mm
5.Output shaft diameter: 2.3mm
6.Output shaft length: front shaft 15.8mm (include step height); rear shaft 5mm
7.Weight: 115g
8.Suitable voltage: DC 6V-18V
9.Test data:
Voltage:6VNo-load speed:3000RPM No-load current:80mA
Voltage:9VNo-load speed:4600RPM No-load current:90mA
Voltage:12V No-load speed:6200RPM No-load current:100mA
Voltage:18V No-load speed:9300RPM No-load current:110mA
=========================
Package List:
Motor x 1PCS
